REPLACING THE OPERATOR CONTROL PANEL
CONTROL PANEL DISASSEMBLY, ASSEMBLY AND INSTALLATION
1 See Figure 42. Remove the Key Switch (A) from the panel assembly.
2 Remove the (5) Screws (B), the Circuit Board (C) and the Tab (D) from the panel assembly. NOTE: Save Items (A-D) and discard the
panel assembly.
3 Follow all previous steps in reverse order to reassemble and install the control panel assembly using the new panel assembly (1 & 2) from
the kit.
NOTE: the clear hose must not be kinked otherwise the Solution System will not function properly.
CAUTION!
To prevent damage to the new control panel assembly due to static electricity (ESD), wear a properly grounded static control wrist strap
before removing the new assembly from its protective static shielding bag and throughout the entirety of the installation process until
the four screws attaching the assembly to the machine have been re-fastened.
The ribbon cable(s) and membrane switch grounding lm are fragile - do not scratch or crease during assembly or they may be damaged.

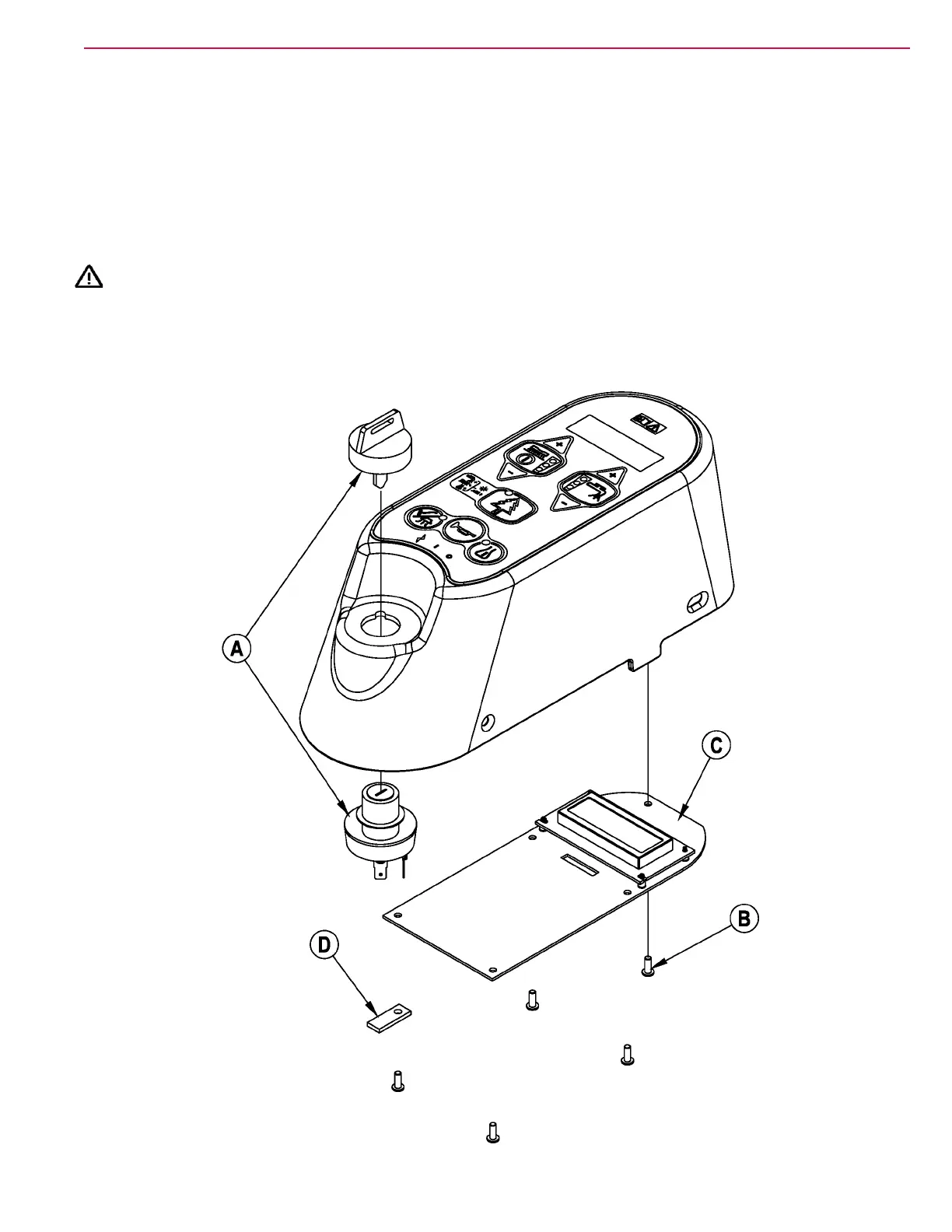

FIGURE 42
