Control System 40Service Manual – SC500

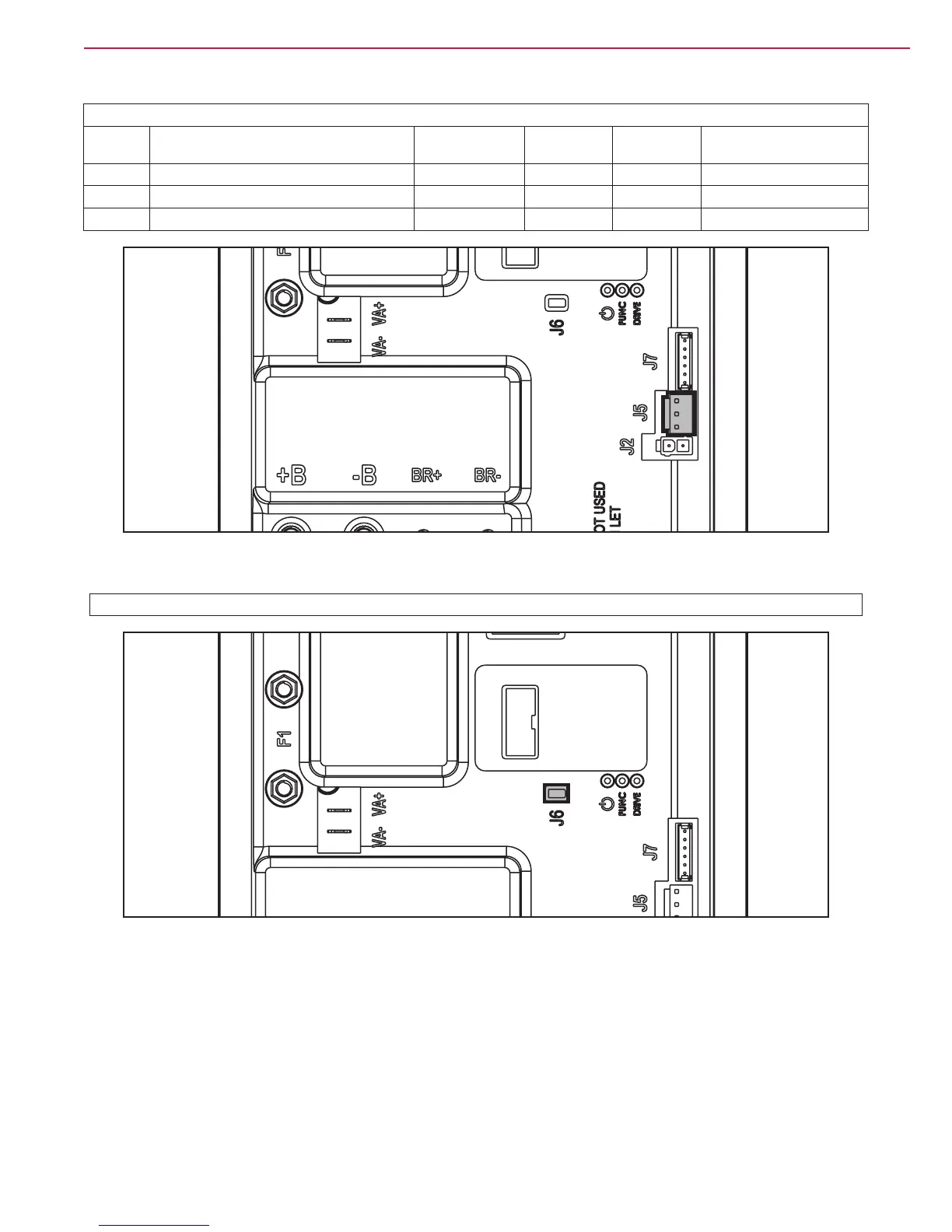

Function Board (EB1) Connectors (Continues)
(Figure 26) J5: JST VHR-3N vertical 3-way
PIN Description Electronic board
in/out
V ref. I max. Connected to
1 Power supply for water level sensor + out 24V <1A S1.1
2 Water level sensor return in 0V <1A S1.2
3 Power supply for water level sensor - out 0V <1A S1.3
Figure 26
(Figure 27) J6: JUMPER, 2-ways vertical
Figure 27
