NIVELCO MultiCONT - Assignment of Outputs (Relay and Current) to the Device

prw2101a0600p_01  27 / 105
5.1.3. Assignment of outputs (relay and current) to the device
During configuration, the relays and current outputs should be assigned to the field devices and to their variables (PV, SV, TV, QV):
 Value has a positive sign (for summation)
 Value has a negative sign (for differential measurement)

Values from devices marked this way will be averaged
The above settings can be changed using

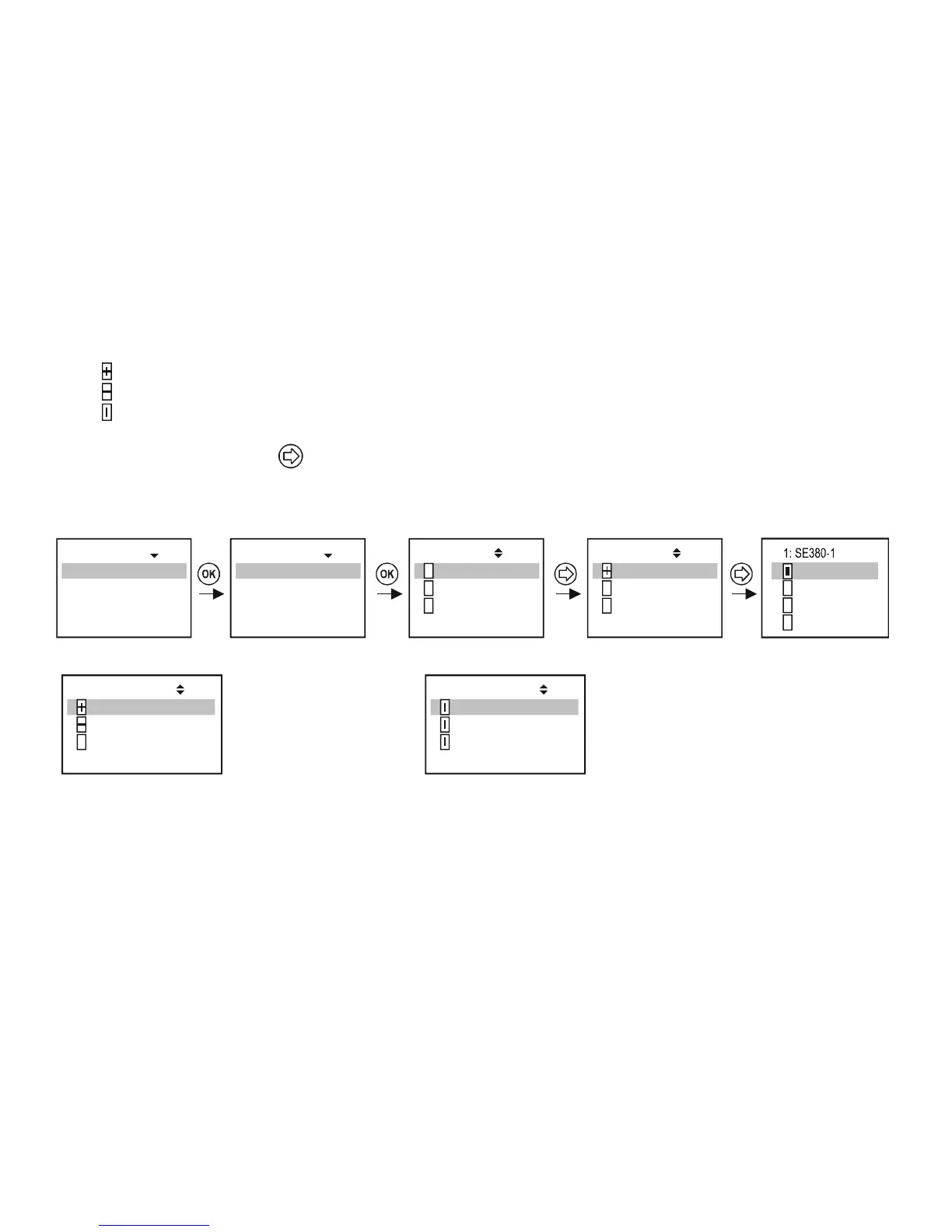

Assignment of device SE380-1 to the relay R_IN_1 in the MultiCONT should be performed as below:
1: SE380-1
2: SE380-2
3: SE360-1
:
Source 21
:
1: SE380-1
2: SE380-2
3: SE360-1
:
Source 21
:
Source
Function
Parameter
:
Programming 20
:
Program
Info
Short TAG
ID
01: R_IN_1 19
:
 57
TV
PV
SV
QV
1: SE380-1
2: SE380-2
3: SE360-1
:
Source 21
:
Relay R_IN_1 is controlled by
the difference of the measured
values of SE380-1 and SE380-2
1: SE380-1
2: SE380-2
3: SE360-1
:
Source 21
:
Relay R_IN_1 is controlled by
the average of the measured
values of SE380-1, SE380-2
and SE360-1
Important: If there are more than one devices (sources) assigned to a relay (difference or average) then those devices should be programmed to
measure the same parameter (DIST, LEV, ...) in the same unit (m, ft, inch, ...)
Otherwise error message (Program) will appear. See 5.7, 5.8 and 6.
