4.2. WIRING
4.2.1. Wiring
Before wiring, please check: if the units (order codes) are HART-capable, the value of the loop current and also if there are two or more units with the same “Short
address”. (See 5.2. Steps of commissioning)

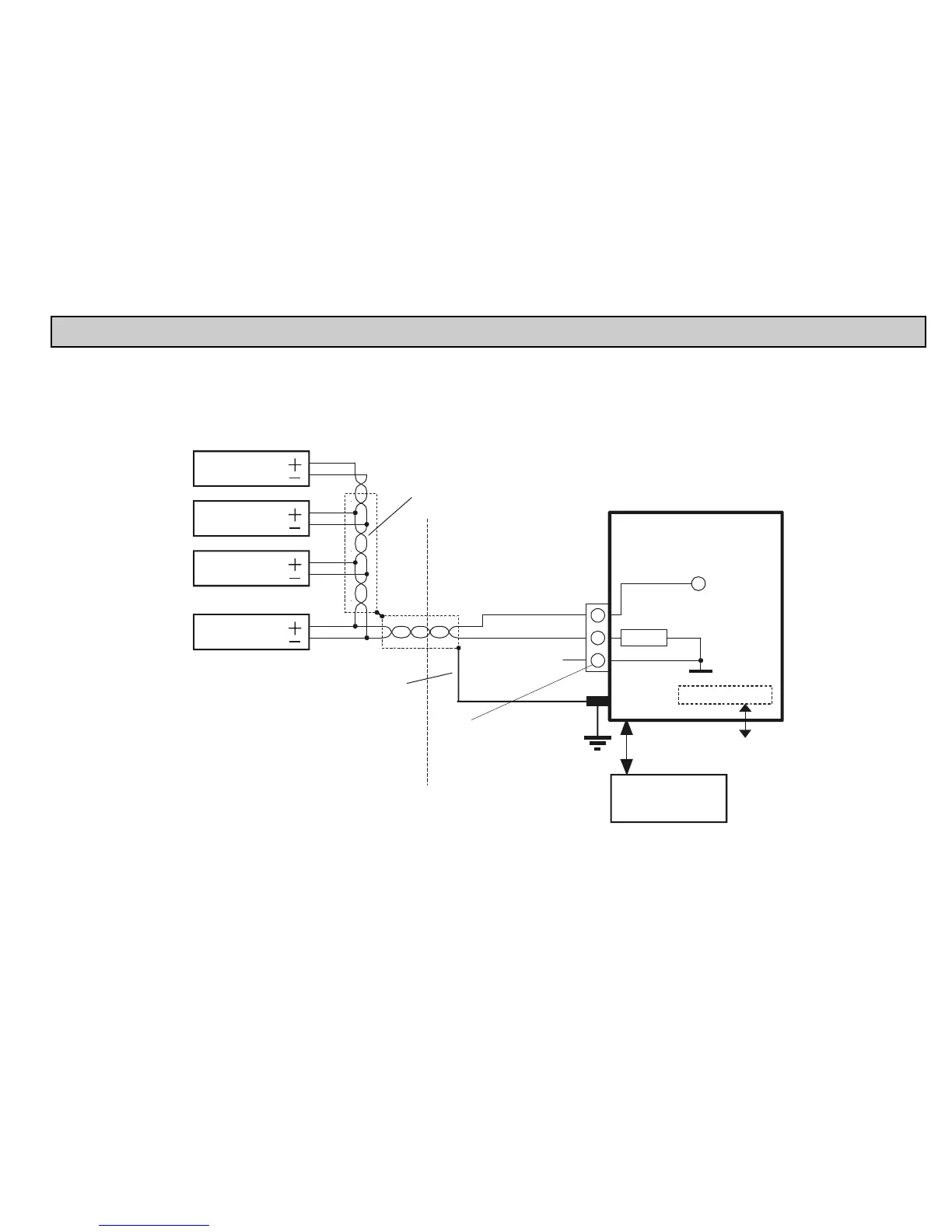

4.2.1.1 Wiring of 2-wire units (transmitters)
Shielding grounded
at the MultiCONT
In non-Ex versions only
Transmitter 1
T 2ransmitter
T 3ransmitter
T Nransmitter
I+
I–
SH
L+
L–
MultiCONT
250 
+U
s
Shielded twisted
cable pair
Universal interface
USER
RS485
Non-Ex area
Ex area
PJK-100
Universal interface
modules
MODULE
RS485
