NIVELCO MultiCONT - Preparing of the Universal Interface Modules; Wiring

prw2101a0600p_01  31 / 105
5.2.1.2 Preparing of the Universal Interface Modules
The MultiCONT can be expanded by a maximum of
32 Universal Interface Modules. They can be
differentiated from each other using their „Short
Addresses”. Two or more modules with the same
address must not be in one system. Configuration

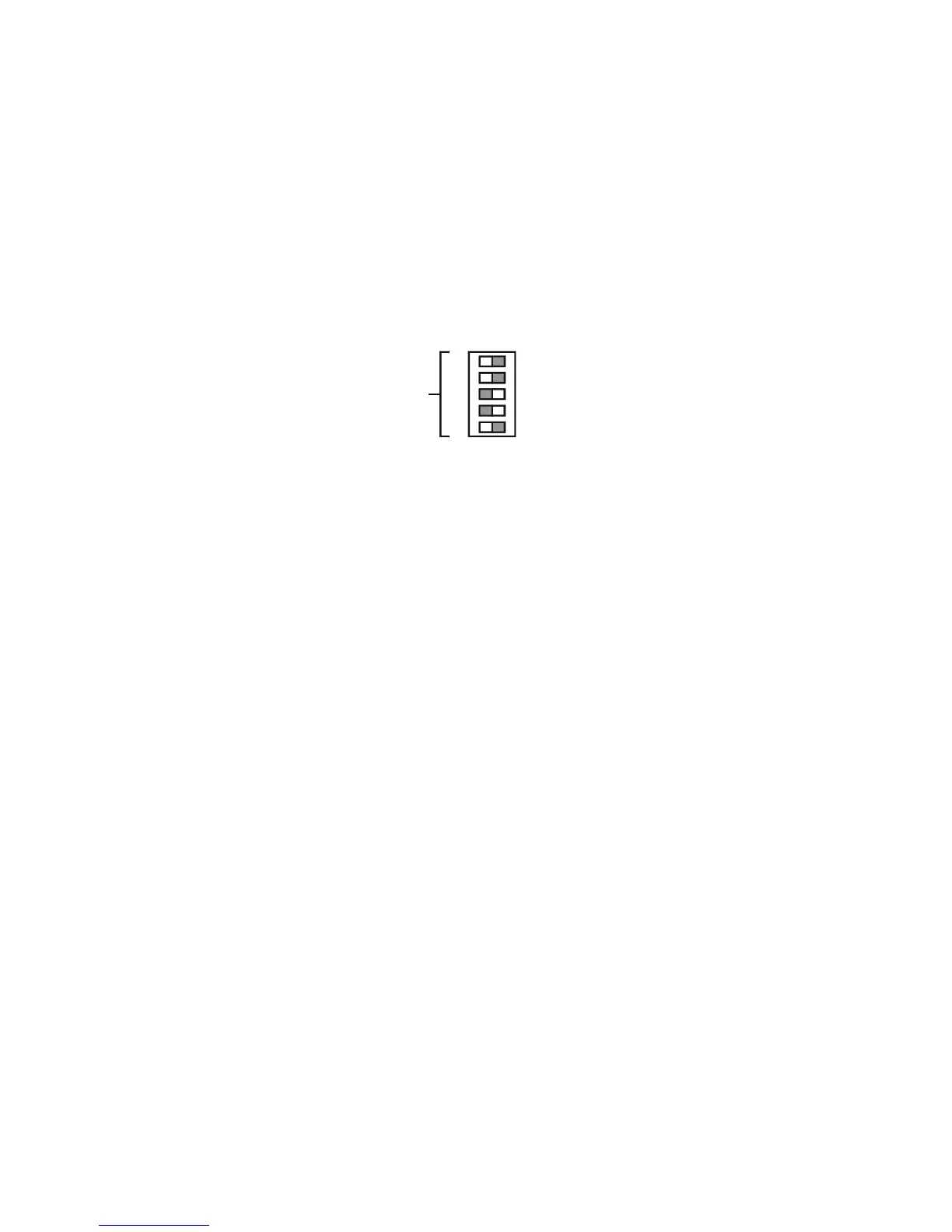

is possible using the row of DIP switches that can
be found on the top of the modules (0…31).
1
2
4
8
16
ON OFF
ADDR.
Example for setting the address :
4+8=12, this is the „Short Address” of the module.
5.2.2. Wiring
Wiring has to be done according to the previous instructions (See chapters 2.: Technical Data and 4.1: Arrangement of cable terminals)
