5.4.3.1 Source

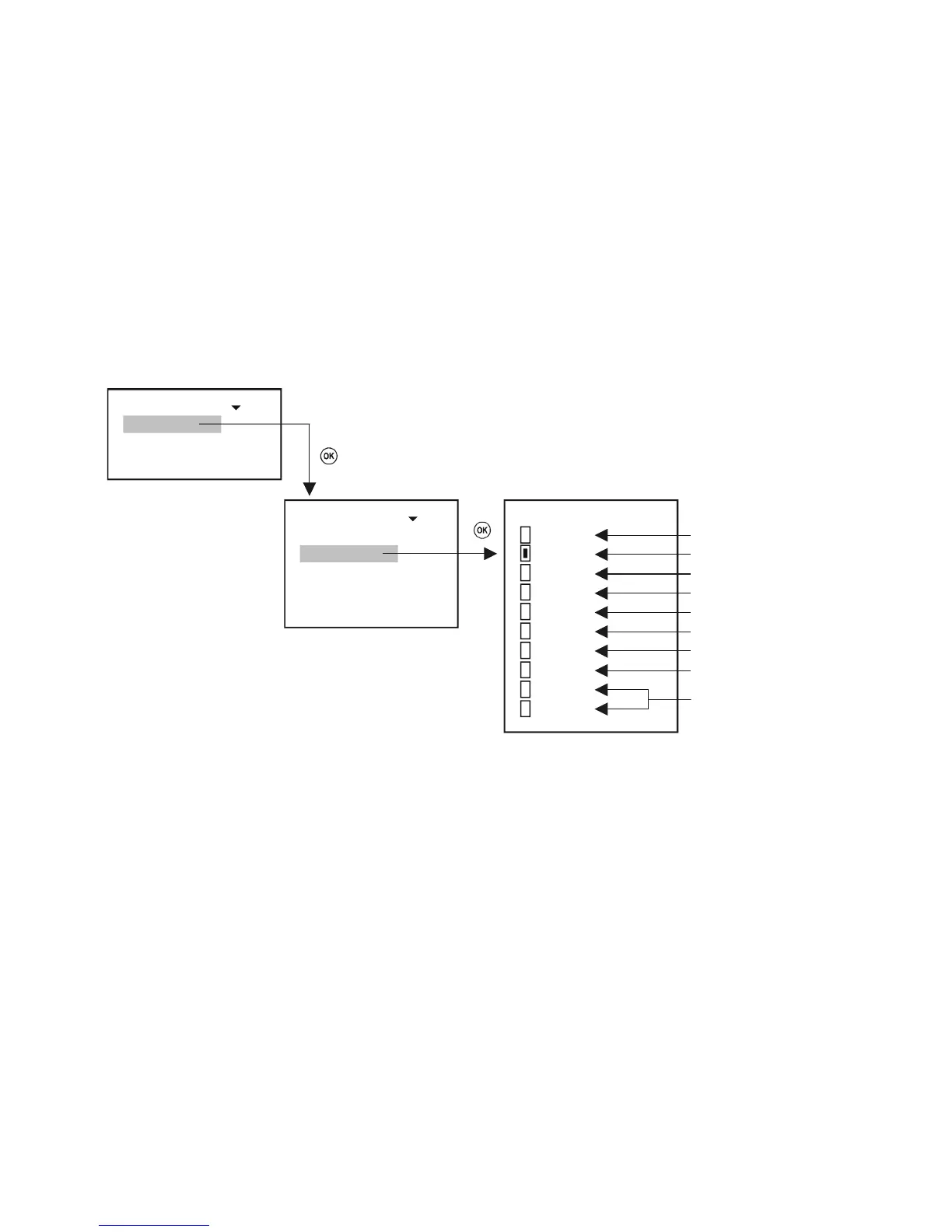

The quantity to be displayed in the “Main display” can be selected independently for each transmitter. Cross-check your selection in “Main menu”/”MultiCONT
config.”/”HART”/”CommandSet”, to confirm the selection of the appropriate command containing the desired quantity.
2: SE360
42
PV
SV
TV
QV
Current
Percent
Level
Level%
TOT1
TOT2
Primary Value
Secondary Value
Tertiary Value
Quaternary Value
Current out of the transmitter*
PV in %
Level
Level in %
TOT1 and TOT2 Totalizer Values
during flow measurement
1: SE380
2: SE360
3P8
:
x: ST340
: S 3 0
Source 56
:
Source
Rounding
Step
Main display 55
:
* Output current, as a displayed quantity is recommended to use only if there is only one device in the system, and if the „Short Address” is zero,
i.e. the current output is not constant.
