5.8. OPERATION AND PARAMETERS OF CURRENT OUTPUTS
First of all a device should be assigned to the current output (Main menu / Current outputs / Program / Source).
The result of the transmitters marked with are added.
The result of the transmitters marked with is subtracted from the sum of the result of the transmitters marked with . (difference measurement)
Computes the average of the results of the transmitters marked with
Secondly the relevant function should be selected and configured in (Main menu/ Current outputs /Program/Function). Finally the parameters have to be
programmed such that the values of the dimensions of CP1 and CP2 be determined by the transmitter(s). Thus if the measurement mode is LEVEL [m]
(e.g. for SE-300 P01=x1 P00=00x), then the programming has to be in LEVEL [m] too (Main menu/ Current outputs /Program/Parameter).
For a detailed overview of the programming steps see Appendix 4.

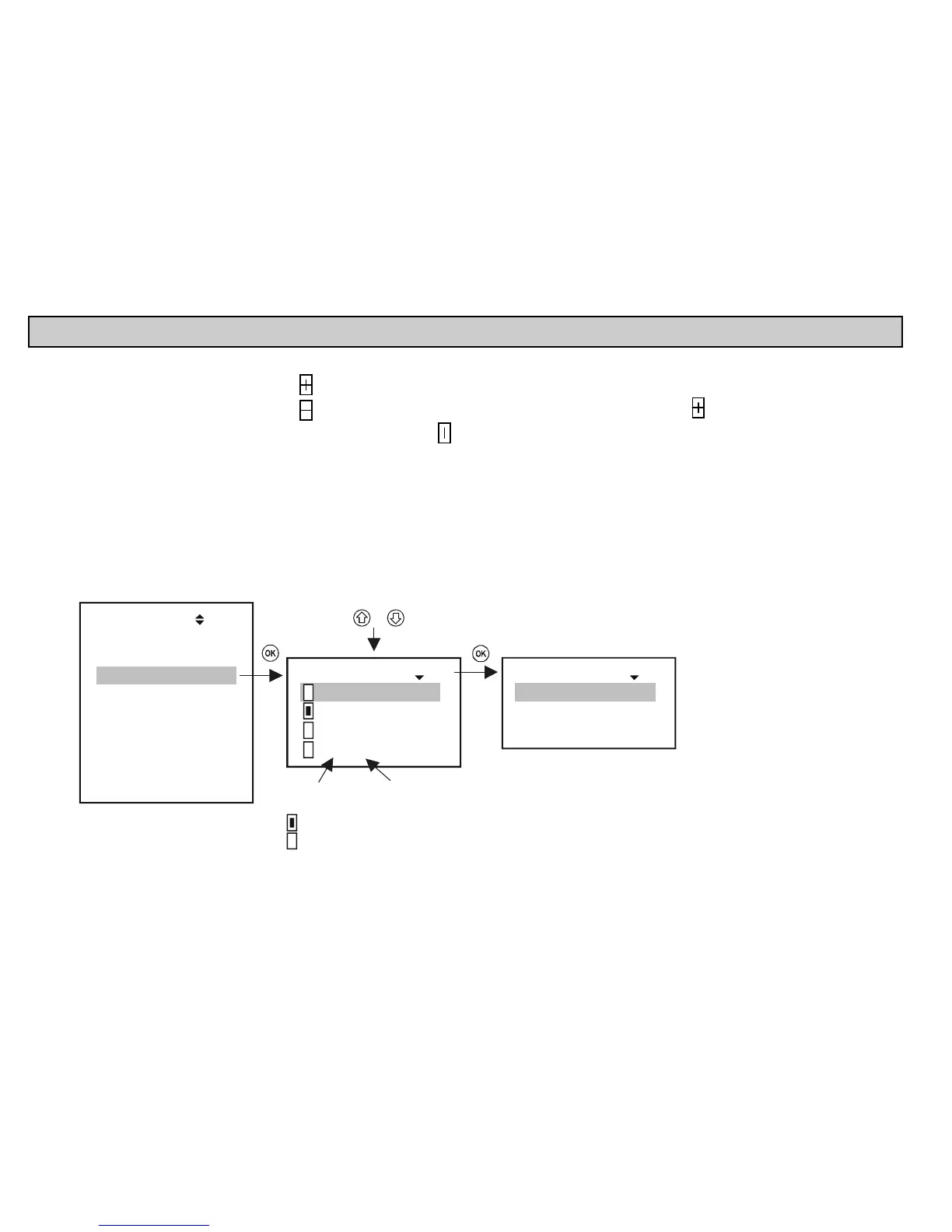

5.8.1. Selection of Current outputs
It is impossible to enter the current output menu if the system does not contain a single current output. The number of relays in the system can be viewed under Main
menu/MultiCONT config/ Report. (See chapter 5.4.12)
Devices
Current outs.
Inputs
UIM-s
Default config
Relays
MultiCONT config.
Save config.
Load config.
Main menu
05
Select using &
Current outs. 18
01: C1_IN
02: C12MB
:
12: C12n
01: C1_IN 19
Program
Short TAG
Info
List number
of curr. out
Curr. output ID
Short TAG
Active
Not active
