* If the access is denied the following message appears.
Unlock please
Press OK
After entering a valid code press OK.
** Parameters entered during remote programming via MultiCONT will be sent without being checked to the device where
the data is checked. In the event of bad parameter value, or if the given parameter is not defined in the given device, then
the following message appears:
HART logical error
Press OK
To correct the problem see the User’s Manual of the respective device
(transmitter)

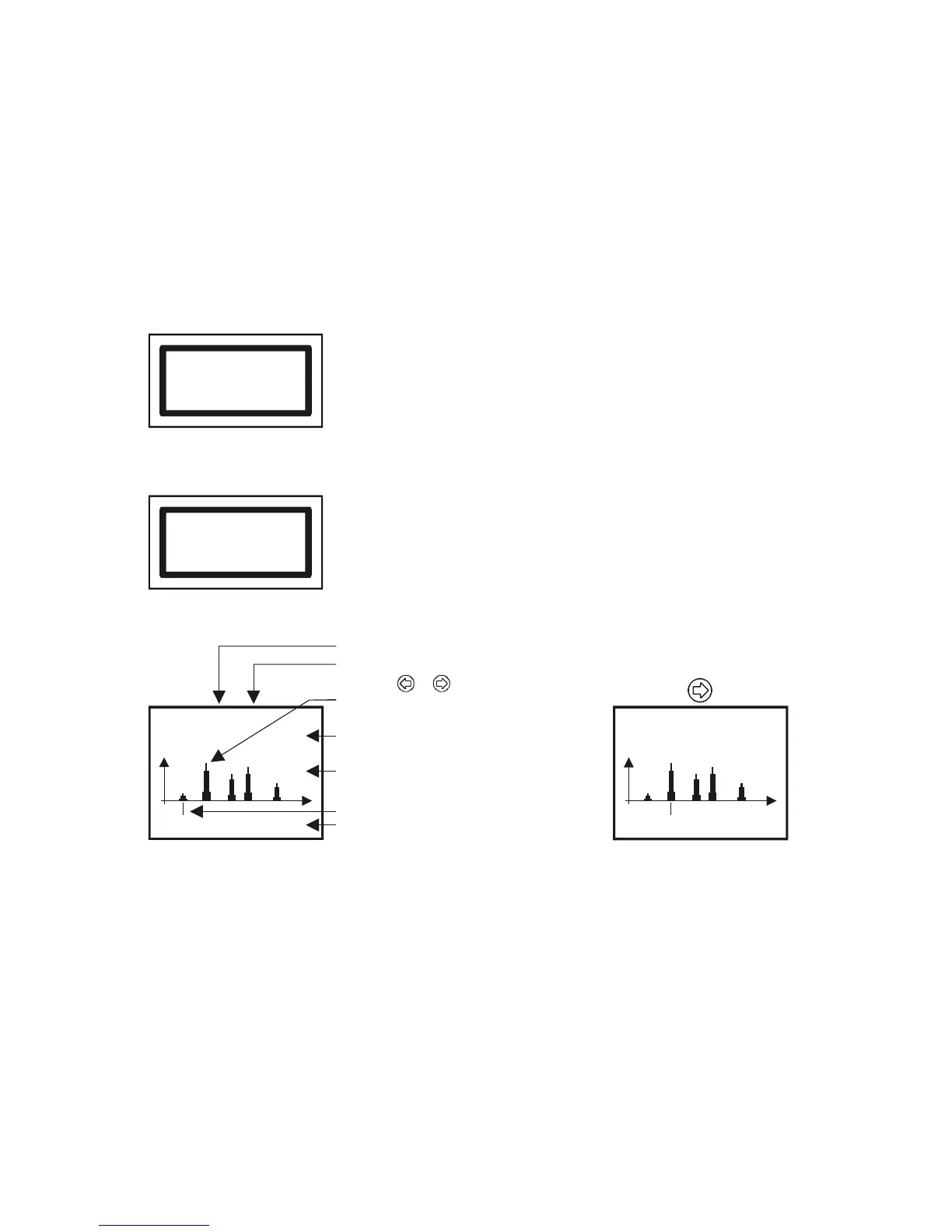

*** Explanation of the Echo Map of ultrasonic transmitters
On enter:
13Echo 5 1
1.40 m -3.2 dB
No. of echoes
No. of selected echo (on enter 1),
select with or
Measured echo is blinking
0.70 m -17.5 dB
mplitude and distance of the
measured (blinking) echo
The echo-map
Selected echo
marking
amplitude and distance
after pressing button:
13Echo 5 2
1.40 m -3.2 dB
1.40 m -3.2 dB
Note!! The displayed data corresponds to the moment of entering into the menu.
The flashing echo is the one used by the transmitter to measure distance. To refresh the display press ESC then OK.
