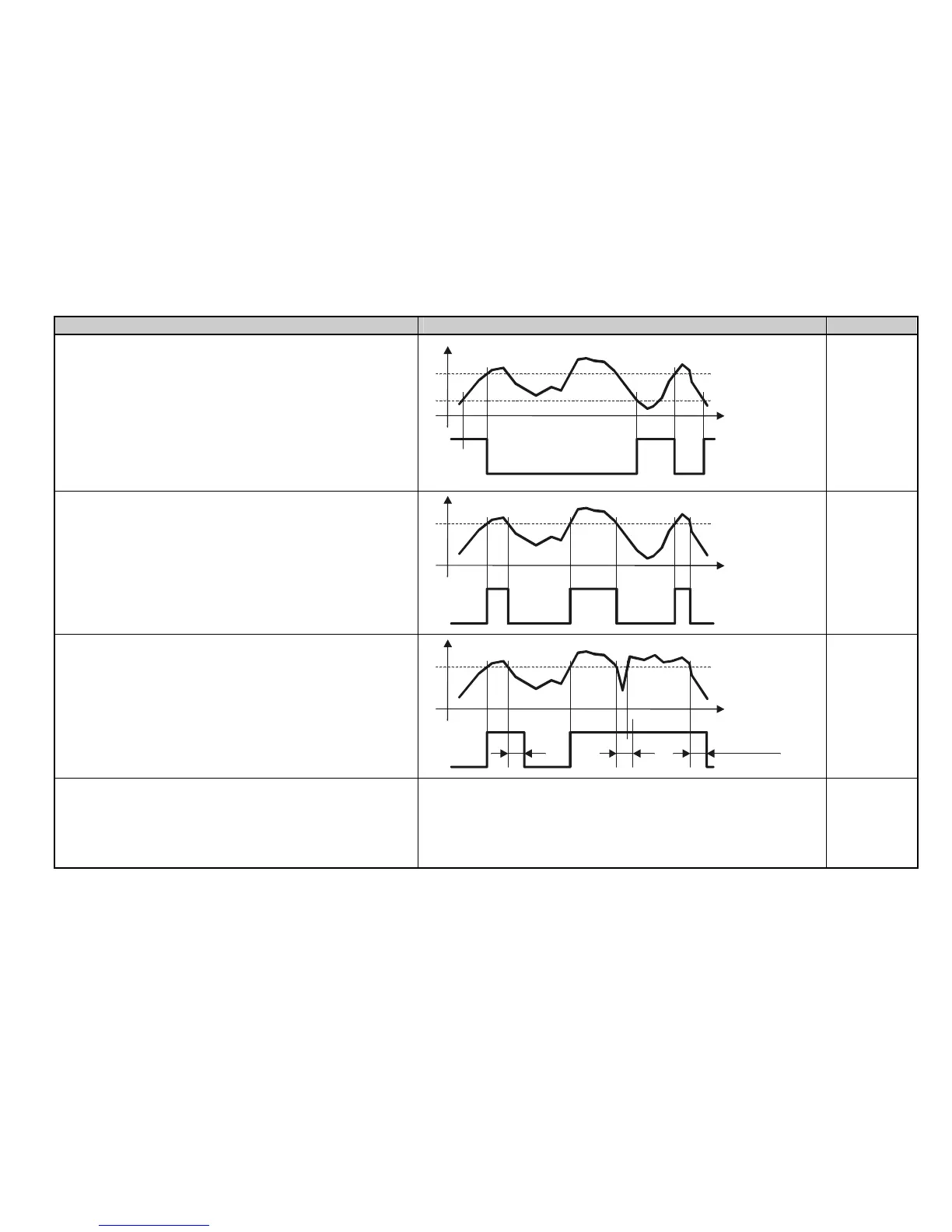

OPERATING MODE FUNCTION PROG. PAR
Hysterisis. (2-point control)
Default: filling with energized relay:
Invert = OFF,
above RP1 the relay will be de-energized below RP2 it will be
energized
Inverted operation: by interchanging RP1 and RP2
or by selecting Invert = ON
Main menu/Relays/Program/Invert
If RP1 = RP2 then the upper alarm function is enabled
RP1
RP2
t
Energised
De-energised
Relay
RP1,
RP2
Alarm
Default: Invert = OFF
Below RP1 relay will be de-energized
Inverted operation (relay will be energized below RP1) or by
selecting Invert = ON
Hysterisis = 2.5% of RP1
If RP1 = 0 the relay will be constantly energized
RP1
t
Energised
De-energised
Relay
RP1
Alarm K (with delayed switching)
Default: Invert = OFF
below RP1 relay will be de-energized using delay in RP3
(Factory default t= 0 sec )
Delay can be set under RP3 in sec
RP1
t
Energised
delayK
De-energised
Relay
K K
RP1,
RP3
Alarm G (group ALARM)
Default: „Invert =Off”
Relay get de-energized if the condition (measured value is less than RP1)
is fulfilled in case of any transmitters assigned to the relay.
Hysteresis: 2.5% of RP1
Operation can be inverted with Invert =On switch
(Relay get de-energized if the measured value is more than RP1)
RP1
