Sequential
Default: „Invert = OFF”
More operation modes are possible to use depending on the values of the parameters.
There is only one relay in energized state. When all relays are in de-energized state, then new cycle is started and relays will be reversed.
In the followings, there is an example for the operation in case of two relays ( max. 8 relays can be operating in a group )

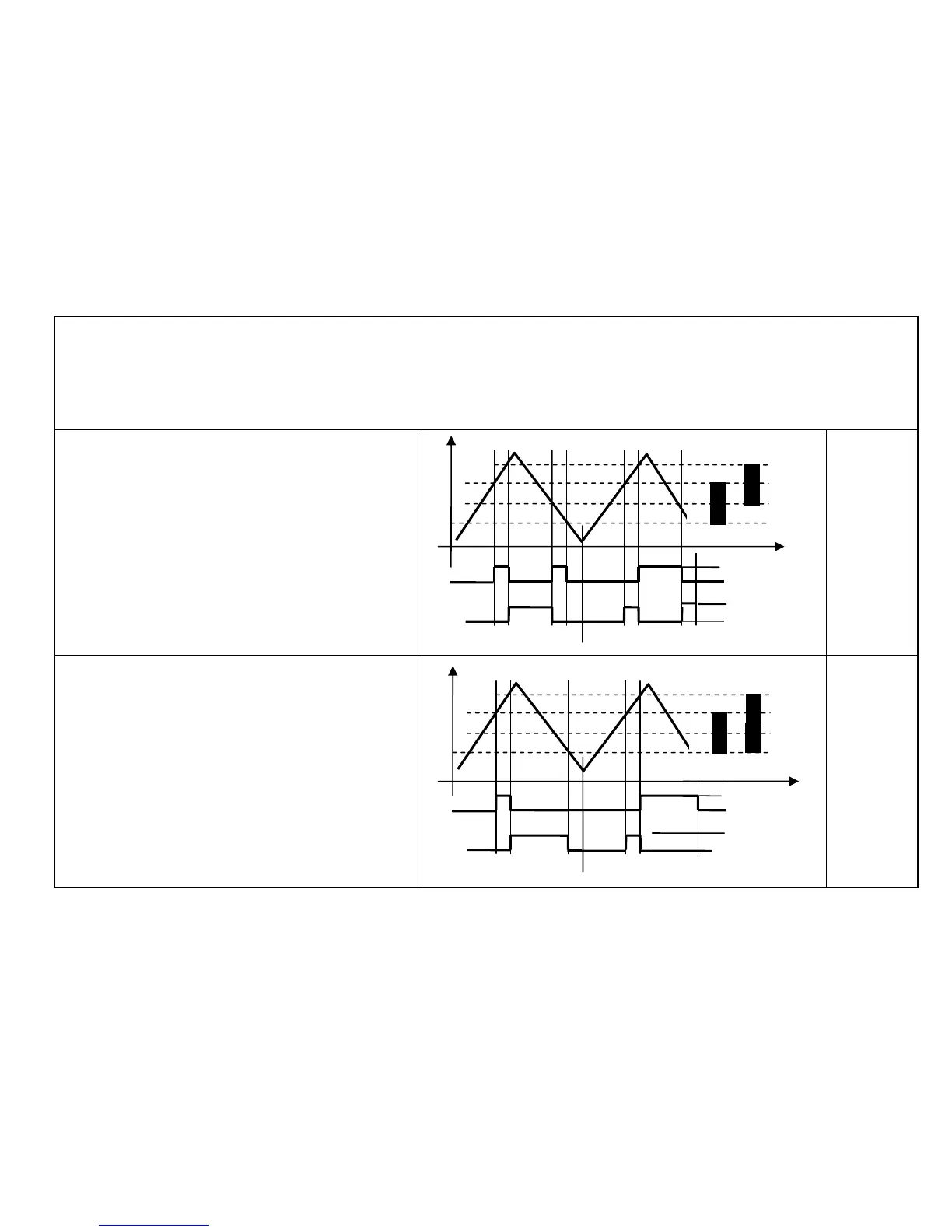

Sequential
1. Different switching points for the relays for turning ON
and OFF
Rx-RP1 > Rx-RP2
Emptying with energized relay
RP1
RP2
Sequential
2. Same switching points for turning ON and different
switching points for turning OFF for the relays.
Rx-RP1 > Rx-RP2
Emptying with energized relay
RP1
RP2
LEV
R2 ON RP1
R1 ON RP1
R1 OFF RP2 R2 OFF RP2
ON RP1
RELAY 1
OFF RP2
ON RP1
RELAY 2
OFF RP2
1. c
