Connecting Nokia IP40 Security Platform to the Network

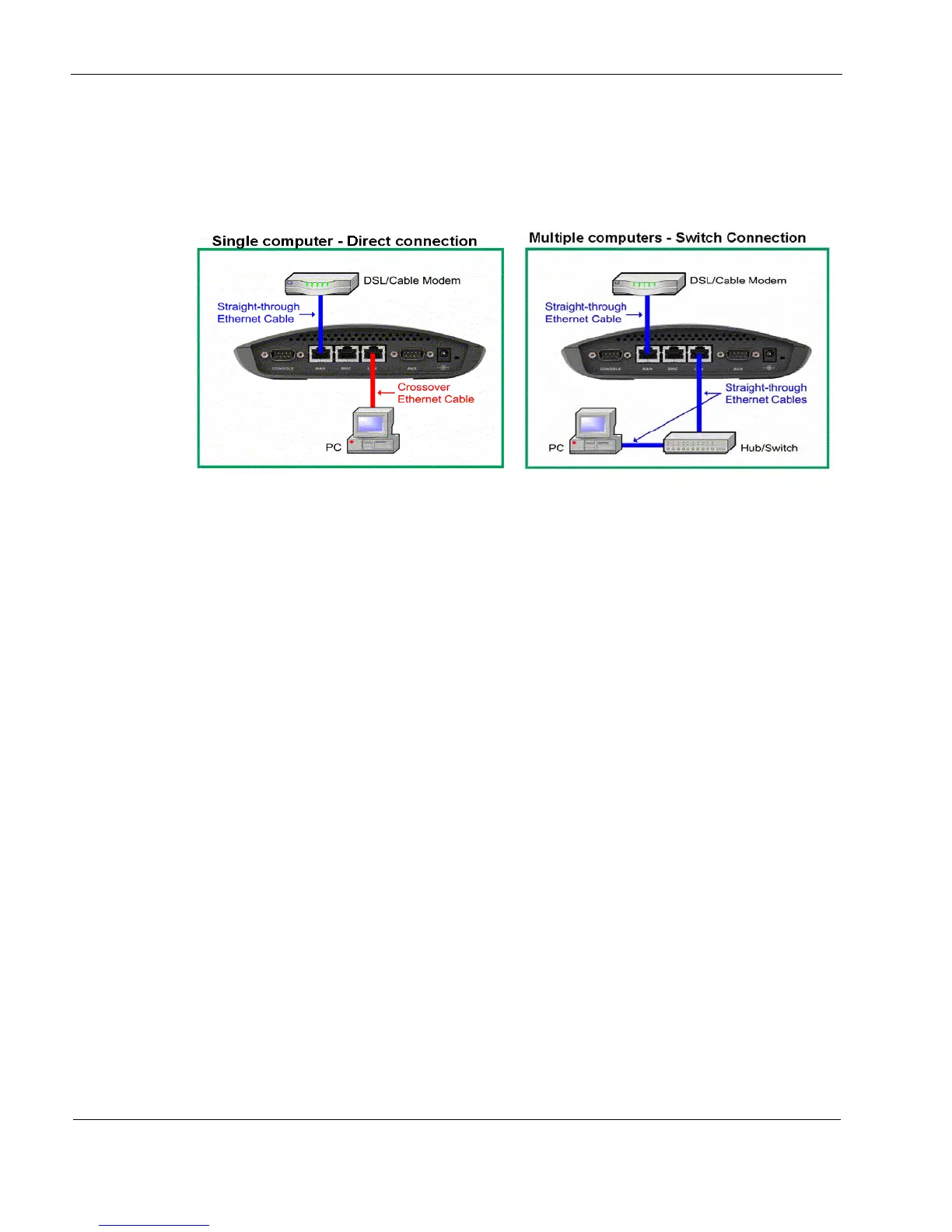

The following topology examples illustrate proper network cabling.
Figure 3 IP40 Topologies
Installing Your Network
Plan your network and the location of the IP40, then install your network.
To install the network
1. Connect the LAN cable:
a. Connect one end of the Ethernet cable to the LAN port at the back of the appliance.
b. Connect the other end of the Ethernet cable to the computer, hubs, or another network.
device.
2. Connect the DMZ cable:
a. Connect one end of the Ethernet cable to the DMZ port at the back of the appliance.
b. Connect the other end of the Ethernet cable to the computer, hubs, or another network
device.
3. Connect the WAN cable:
a. Connect one end of the Ethernet cable to the WAN port at the back of the appliance.
b. Connect the other end of the Ethernet cable to a cable modem, xDSL modem, or a
corporate network.
4. Connect the power adapter to the power socket at the back of the appliance.
5. Plug in the AC power adapter to the electrical outlet.
