Nokia IP40 Security Platform Front Panel
You can monitor the IP40 operations by viewing the LEDs on the front panel.

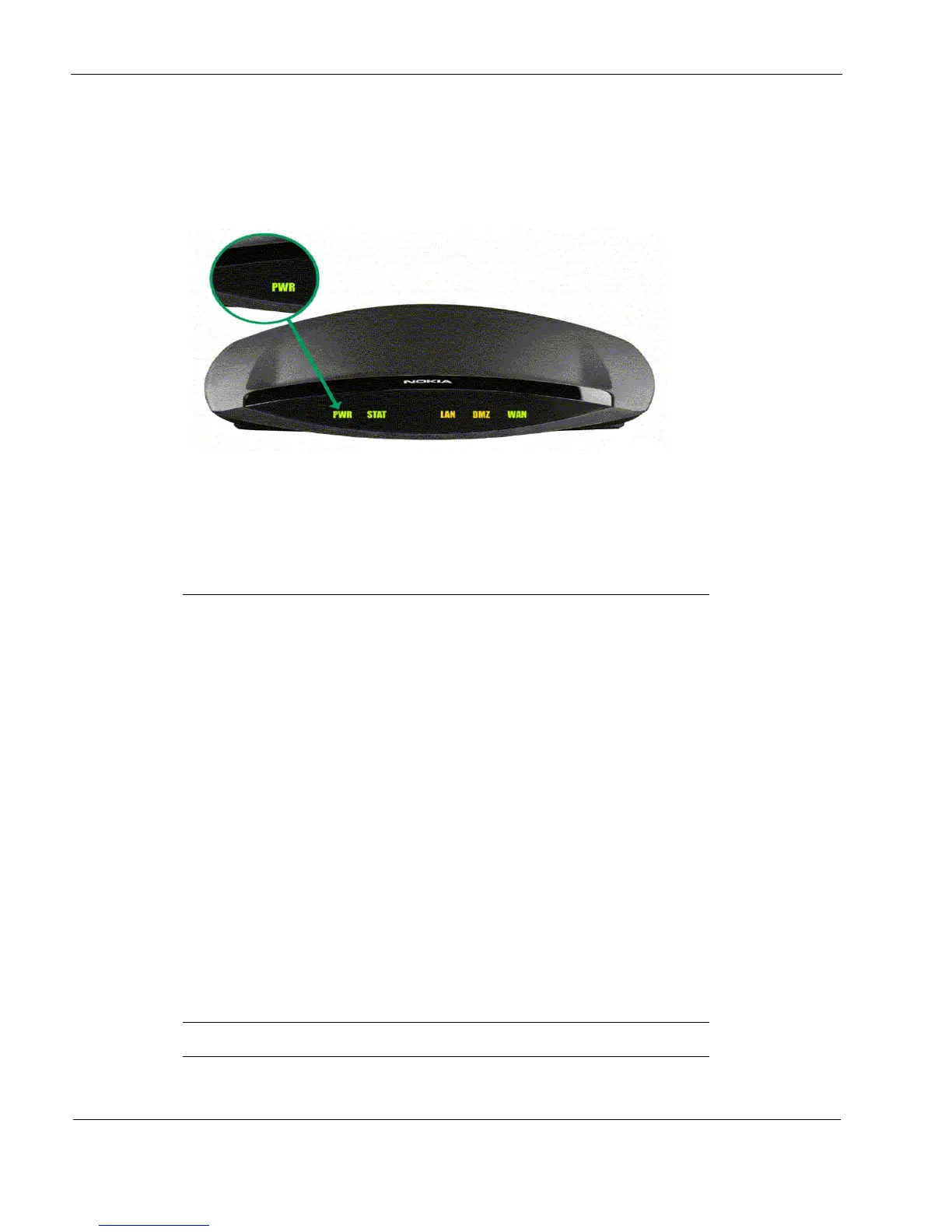

Figure 2 Front Panel of Nokia IP40 Security platform.
The items on the front panel of the Nokia IP40 Security Platform are explained in Table 10 on
page 32.
Table 10 Front Panel Nokia IP40
PWR Off: appliance not powered on
Green Solid: device is on
STAT Off: appliance off
Green solid: appliance passed hardware test and finished booting.
Red solid: hardware error
Amber solid: booting
Green blinking: appliance passed hardware and is fully
booted.appliance is at its default state. First-time password is not
set.
Red blinking: software error
Amber blinking: appliance is performing a function such as setting
factory defaults, loading firmware or loading an exported
configuration.
LAN
DMZ
WAN
Off: no connection
Green solid: interface connected and auto-negotiated at 10 Mbps
Amber solid: interface connected and auto-negotiated at 100
Mbps
Amber/Green blinking: traffic passing through the interface
