8 Program selection The display screen for program 420
48 © Nortec Electronics 2018
8.5.4 Program 420 Step 4
NiCd battery (manufacturer independent)
Program: Maintenance
P420:S4: DISCHARGE 2
24.05V 04.00A 03.60Ah 054MIN
15.01.15 23:34:38
--
.
-
°C

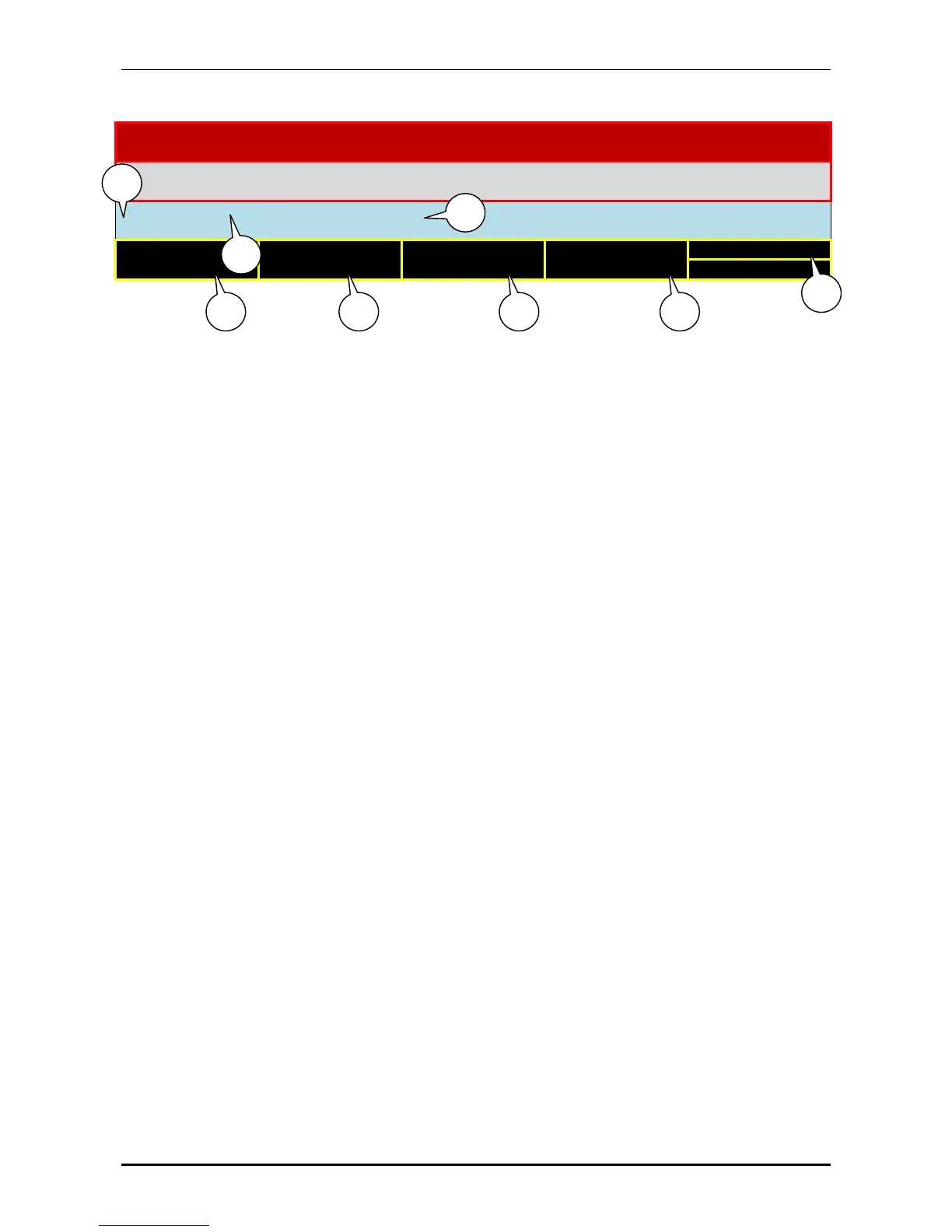

1 Program number
Kind of treatment 4 = Maintenance
Battery type 20 = NiCd battery (manufacturer independent)
2 Step number = S4
3 Step type = DISCHARGE 2
4 23:34:38 = present time
5 24.05 V = present battery voltage
6 4.0 A = present discharging current
The testing current for NiCd batteries is 1 C (A)
which means a current is chosen which
discharges the battery with a capacity of
4 A h within 1 hour completely. The current is
4 A.
7 3.60 Ah = actual taken capacity at time of printing.
8 0054 MIN DISCHARGE 2 the battery will be discharged
with 1 hour current = 4 A until the battery
voltage is 1 V for each cell which means
decreased to 20 V.
The time for discharging until this display is
hown takes 54 minutes.
At the end of step 4 a record is done
automatically when the shut down voltage
of 20 V is reached. The actual voltage recovers
immidiately after stopping discharge current.
