8 Program selection The display screen for program 420
© Nortec Electronics 2018 45
8.5 The display screen for program 420
For a military NiCd battery (manufacturer independent) = Type 20 with a nominal voltage of 24 V
and 4 Ah the testing cycle = Treatment 4 is shown as an example.
Program No 420 follows after entering the user specific data. Confirm with and the following
display is shown:
8.5.1 Program 420 Step 1
NiCd battery (manufacturer independent)
Program: Maintenance
P420:S1: DISCHARGE 1
24.06V 04.00A 00.5Ah 006MIN
15.01.15 19:43:00
--
.
-
°C

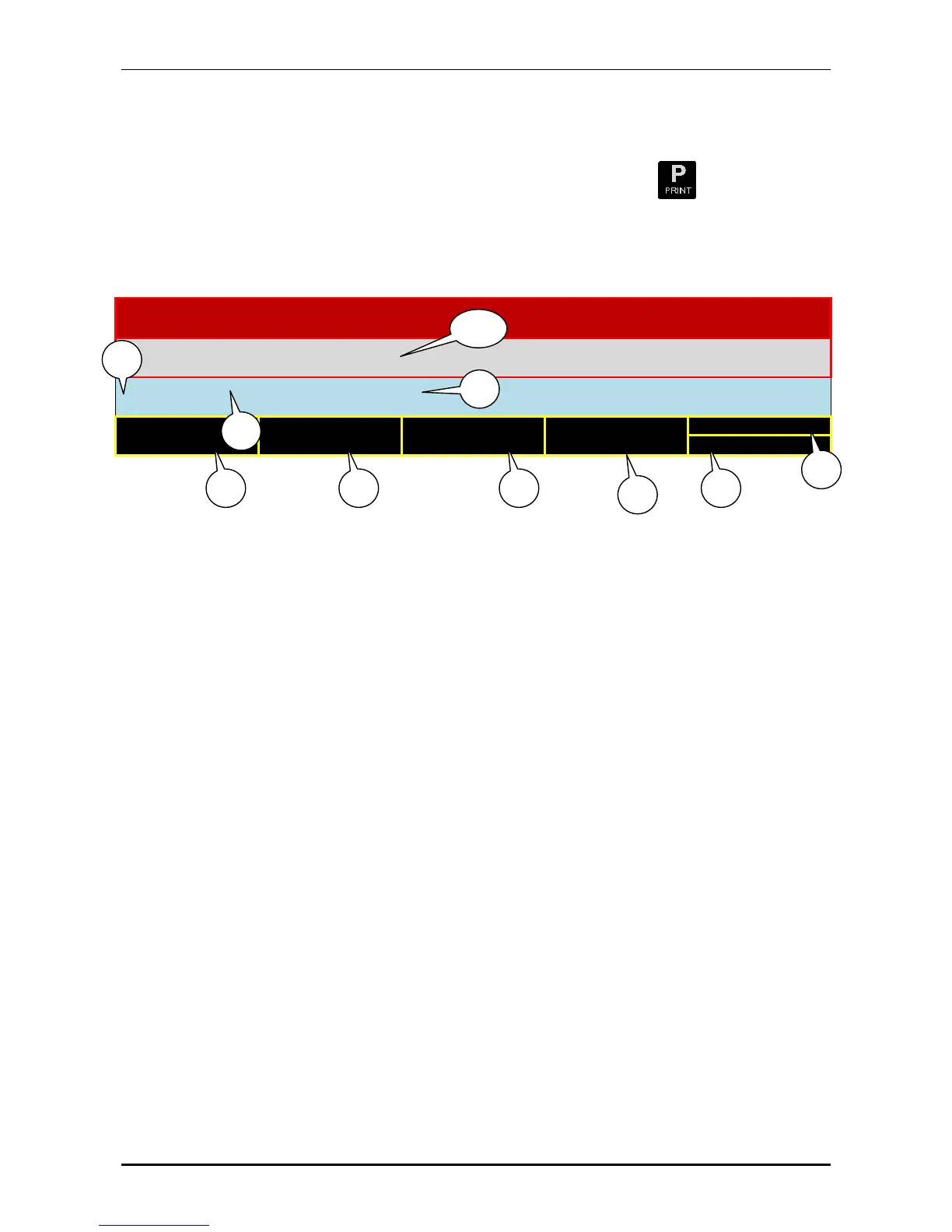

1 Program number
2 Step number = S1
3 Step type = DISCHARGE 1
4 19:43:00 = present time
5 24.06 V = present battery voltage
6 04.00 A = present discharging current
7 000.5 Ah = present capacity taken at stage of print
8 +006 MIN = time span
9 --,- C = no active temperature measuring
10 Maintenance = kind of treatment
