INSTALLATION
115V
230V
s R 3.1
c h e c · ·
Connecting Power
1. Before connecting the power cord, check
that the line voltage switch located at the
rear of the balance is set correctly for your
location. If not, use a small screwdriver to
set the switch correctly.
2. Make sure the doors to the weighing cham-
ber are closed.
2. Connect the power cord receptacle to the
plug on the rear of the balance.
3. Plug the power cord only into a convenient
grounded AC outlet. The balance signals
one long beep to indicate power has been
applied.
Spare Fuse

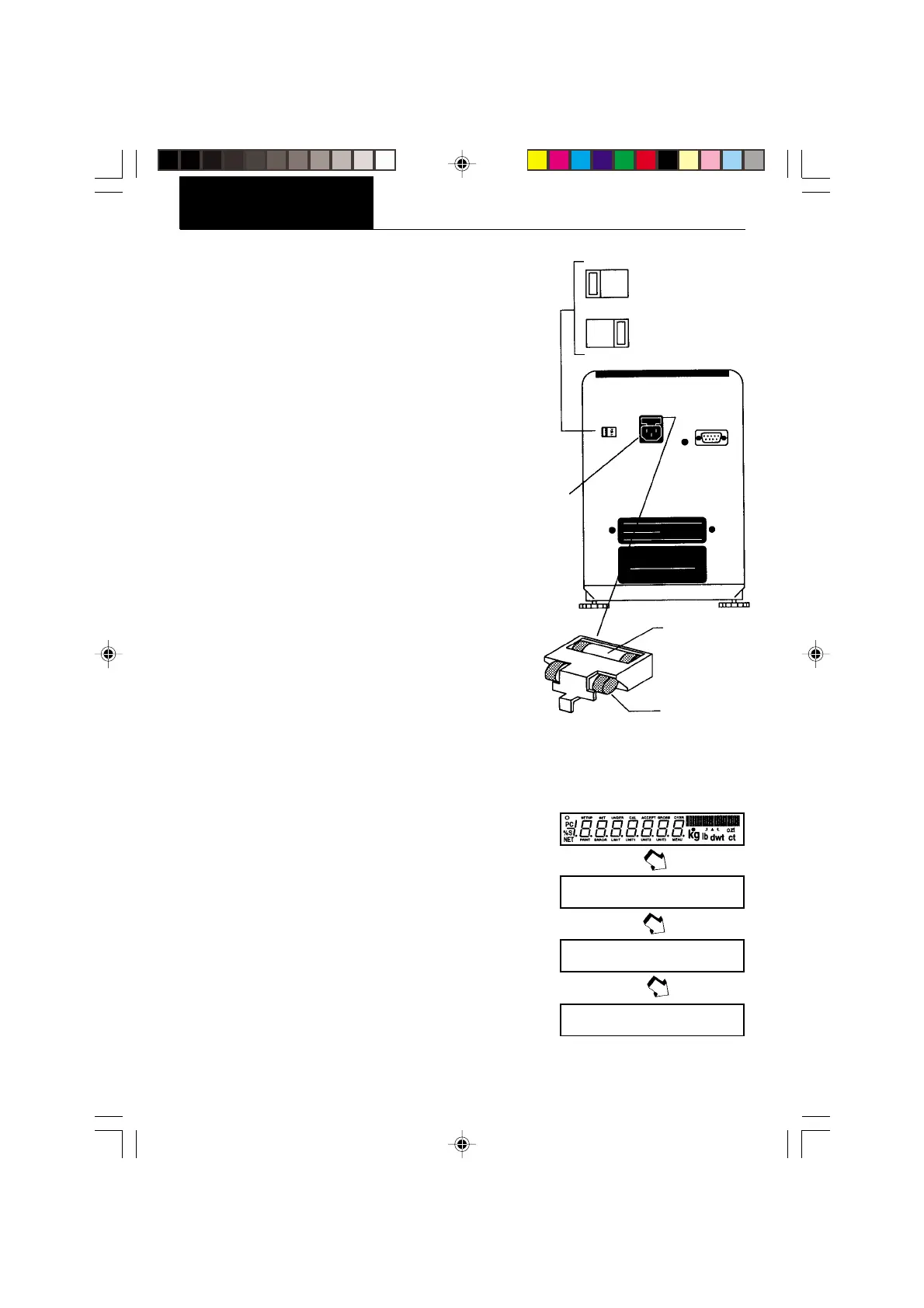

A spare fuse is provided in the fuse holder as
shown in the diagram. All models use a
T 160 mA/250 V fuse.
Self Test
When power is applied to the balance, it begins
a self test cycle. During this time, the display
cycles as shown.
NOTE: Sr shown in the display is the software
revision and may be different in your balance.
After the self test is completed, the display turns
off. Allow the balance to stabilize for about 2
hours before using it.
For 100-120 V∼
For 220 240 V∼
Active Fuse
Spare Fuse
Fuse Holder
Line
Voltage
Switch
Power
Connection
To Next Page
