Chapter 3 Operational Procedures
42

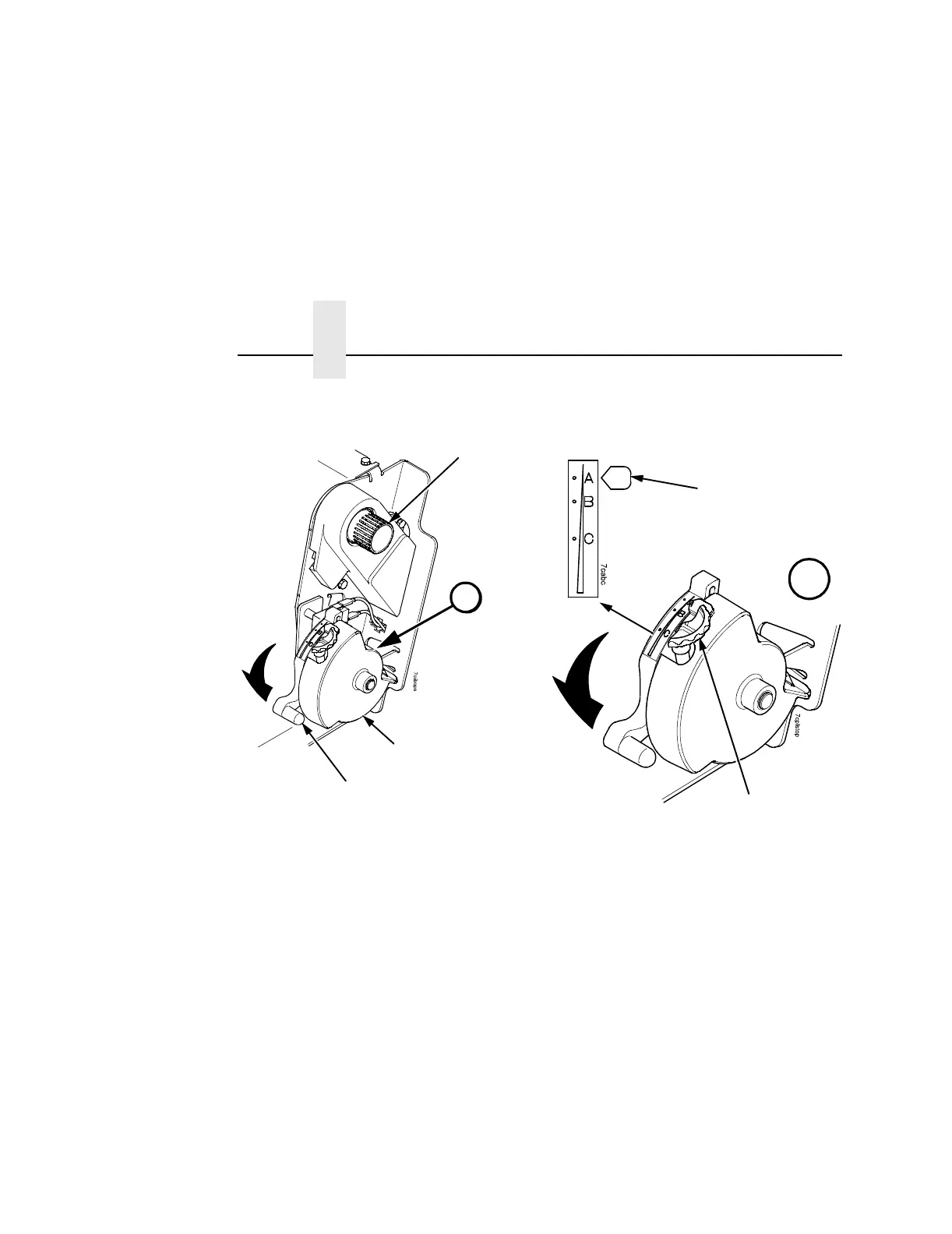

Figure 15. Adjusting the Platen Lever
29. Turn the Auto Platen Stop Knob clockwise or counterclockwise
to match the paper thickness. (The A-B-C scale corresponds
approximately to 1-, 3-, and 6-part paper thickness. Adjust until
you have the desired print quality).
NOTE: The platen stop allows you to set an optimum and
consistent thickness that is not affected when opening and
closing the platen lever.
30. Lower the platen lever until it stops.
31. Press ON LINE/CLEAR to clear any fault messages (such as
“LOAD PAPER”) from the LCD.
32. Press SET TOF. The top-of-form you have set moves down to
the print position. If there is data in the buffer, the paper moves
forward to the last print position on the next page.
33. Press ON LINE/CLEAR and close the printer cover.
Platen Lever
Vertical Position
Knob
Platen Stop
Knob
A
A
Platen Stop
Paper Thickness
Indicator
To Next Page
