1-6Service ManualXYAA6336

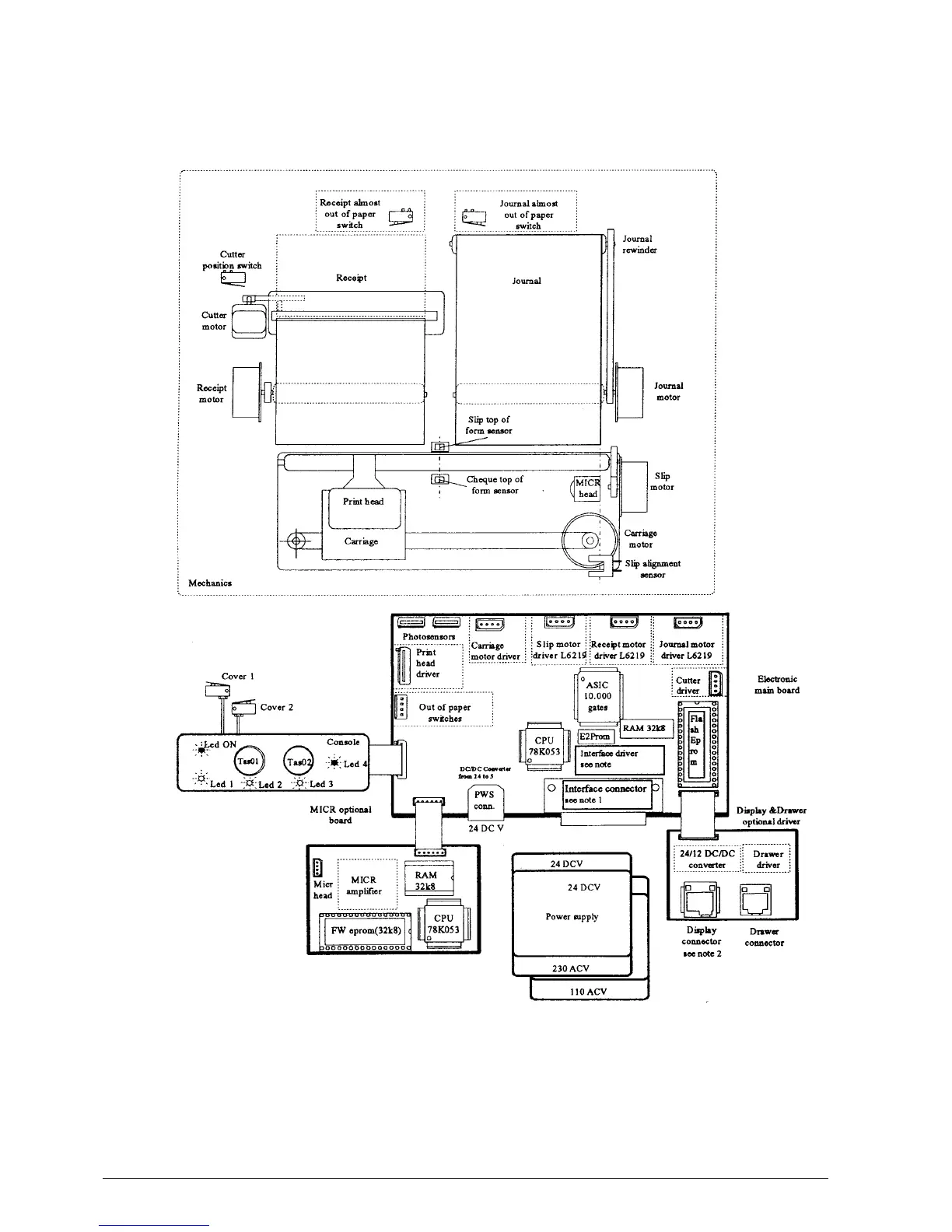

1.4 INTERNAL CONNECTIONS
PR4 Mechanical Devices
Electrical Interconnections
Note 1: On the board, a female connector is used for
serial connections while a male connector is
used for parallel connections.
2
The location of the components on the electronic board is purely indicative.
Note 2: Type: PAL MACH 111 for parallel interface.
Type: ADM 202 JRW for serial interface.
