2.5.5 Installing the Paper Guide
The paper guide must be installed when using 114.3
mm, 82.5 mm and 76.2 mm paper rolls. To install the
paper guide for a 114.3 mm paper roll you need to
remove the wider tab (see Figure 2-25). In the case of
82.5 and 76.2 mm paper rolls, detach both tabs.

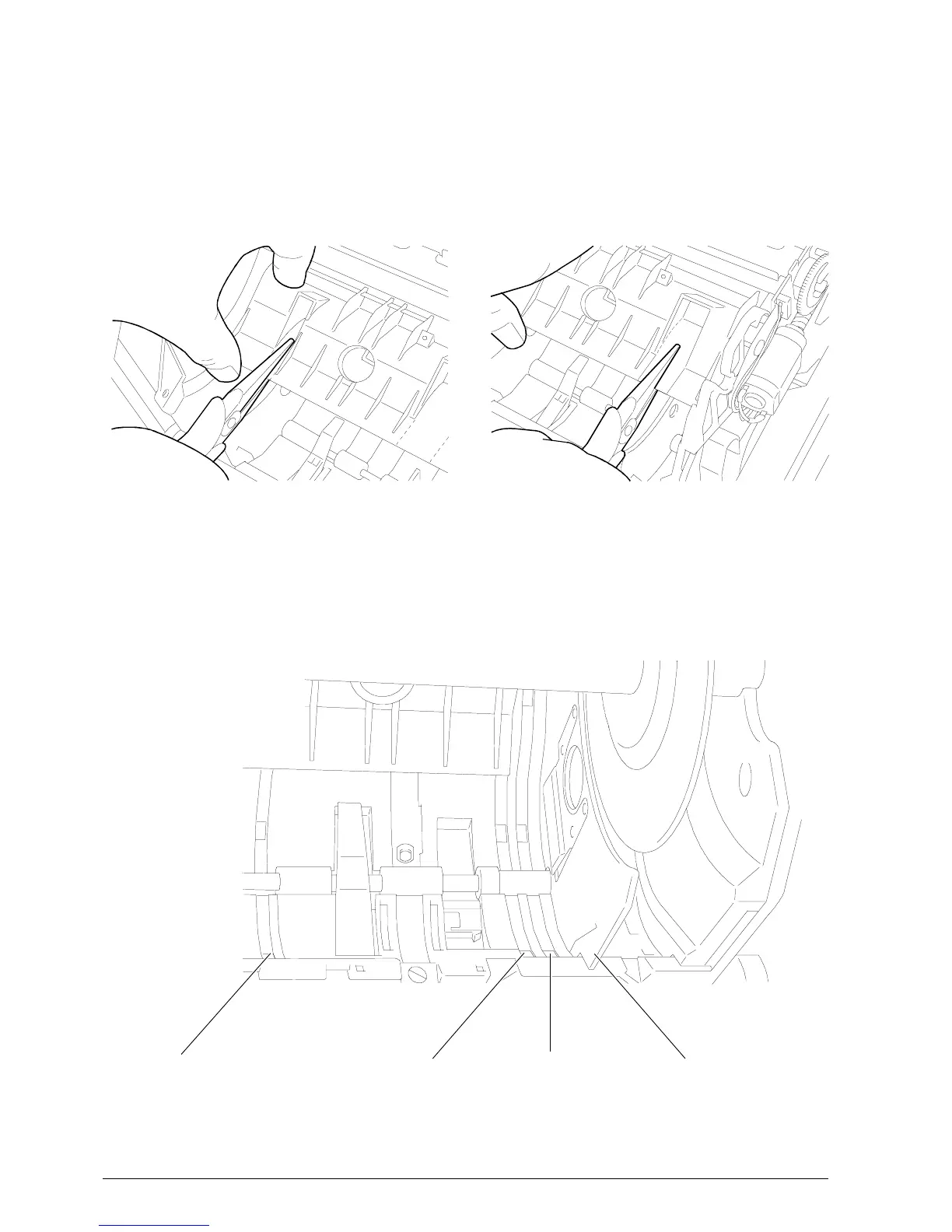

View of the paper guide tab spring which must be
secured to the right-hand side of the machine.
Figure 2-24
Figure 2-25
Figure 2-26
SLOT NOT USED SLOT FOR A 76.2 MM ROLL SLOT FOR AN 82.5 MM ROLL
SLOT FOR 76.2 AND 82.5 MM
ROLLS
