Olivetti PR4 SR - Photosensor Adjustments

XYAA6336 Service Manual 6-7
ON LED
Error LED
Journal LED
Slip LED
Flashing Receipt LED
Receipt LED
6.9.1. Photosensor Adjustments
After a reset the carriage moves to the far left position
where the first phase of the adjustment procedure is
carried out and which consists of multiple reads of the
photosensors in out of paper conditions.
The console assumes the following configuration
during this phase:

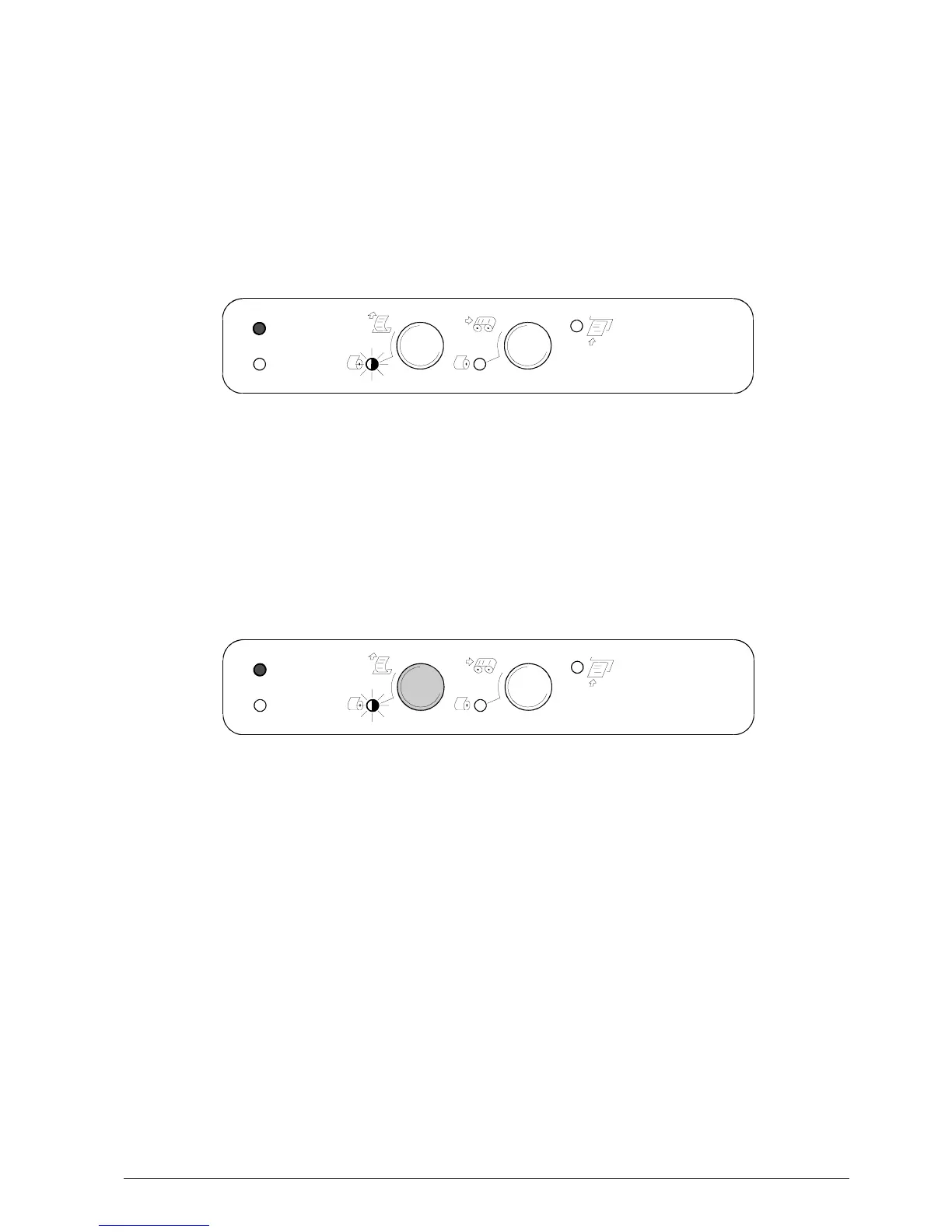

Figure 6-7
ON LED
Error LED
Journal LED
Slip LED
Receipt LED
Operator Action
1. Insert the sheet of paper trying to keep it aligned
to the right as much as possible.
2. Press the Receipt key.
Figure 6-8
Printer Action
1. The carriage will move to the pressed roller position.
Operator Action
1. Release the paper.
