5.7 CUTTER ON THE PR4
• Remove the case (Section 5).
• Proceed as explained in Section 5.2 to access the
electronic board and then disconnect cutter motor
connector J14.
• Release the retension spring.
• Unscrew the retension screw and the ground
cable.
RETENSION SCREW
RETENSION SPRING

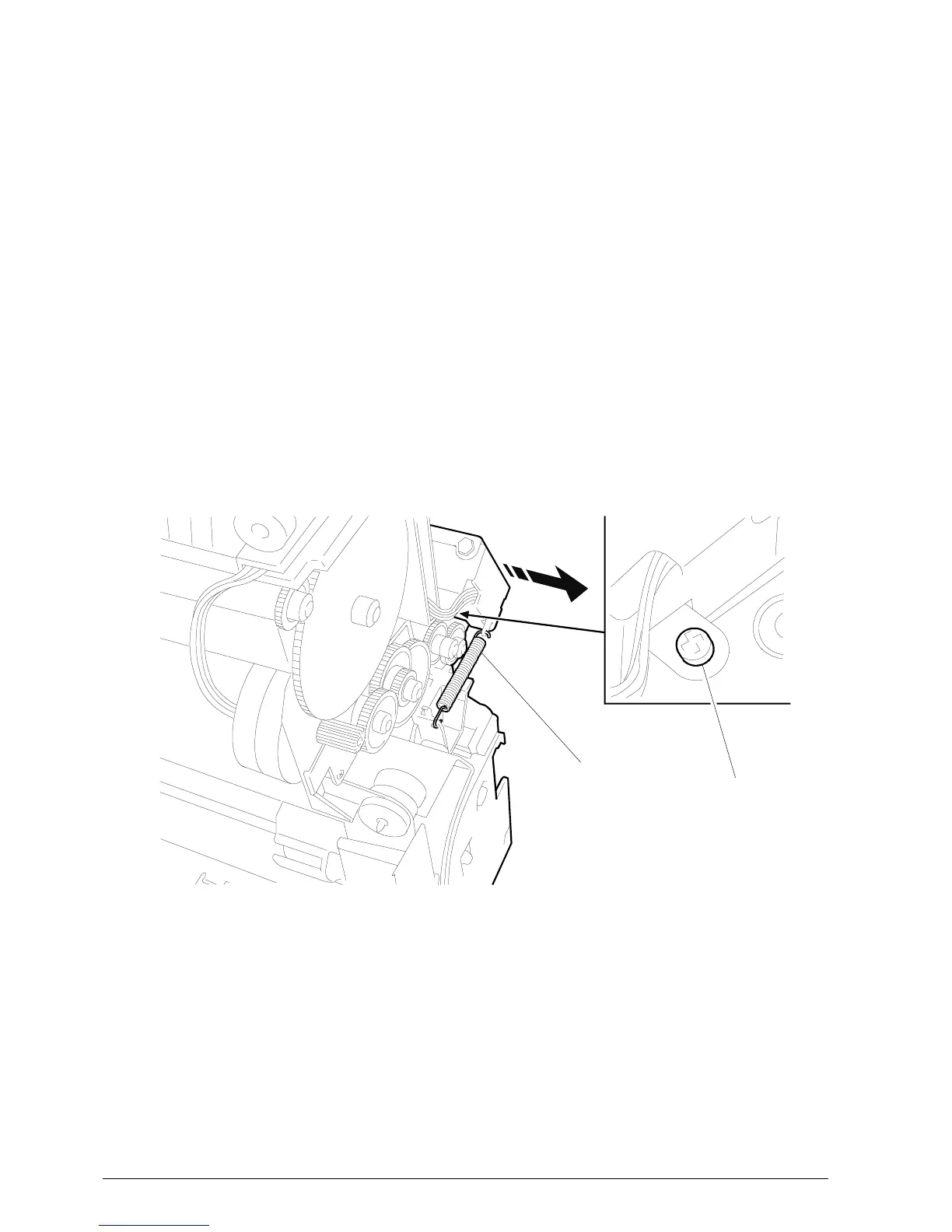

Figure 5-15
