Olivetti PR4 SR - 2.5 Paper Roll Settings (PR4 SR)

XYAA6336 Service Manual 2-7
2.5 SETTINGS TO BE MADE
ACCORDING TO THE PAPER
ROLLS USED (PR4 SR)
The printer is designed to be able to use four types of
paper rolls with the following widths: 76.2; 82.5; 114.3
and 139.7 mm.
To insert the paper roll, take the rewinder which is
found in the printer and appropriately assemble the
spacers and flanges (see Figure 2-7) according to the
dimensions of the paper to be used.

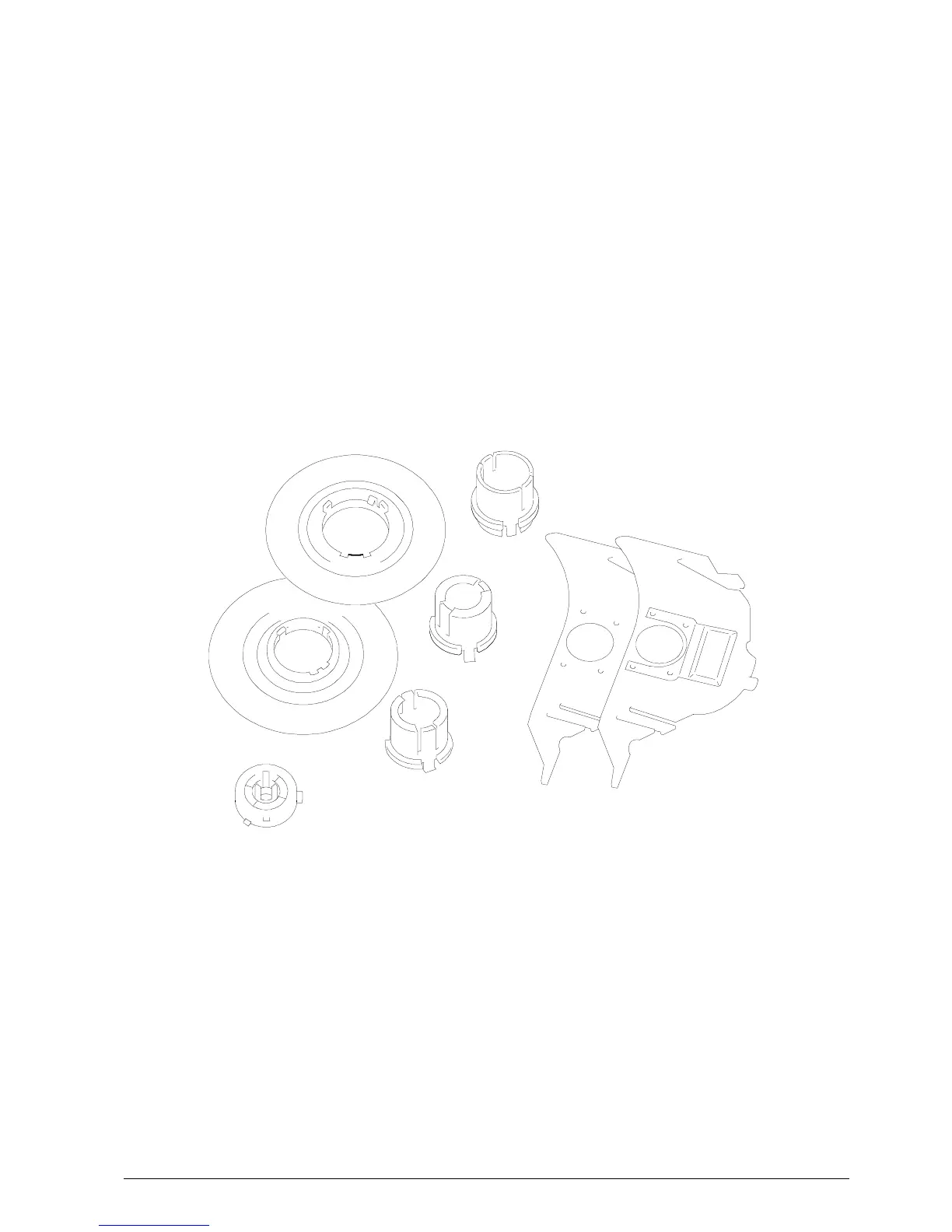

Figure 2-7
