XYAA6336 Service Manual 6-1
6. ADJUSTMENTS

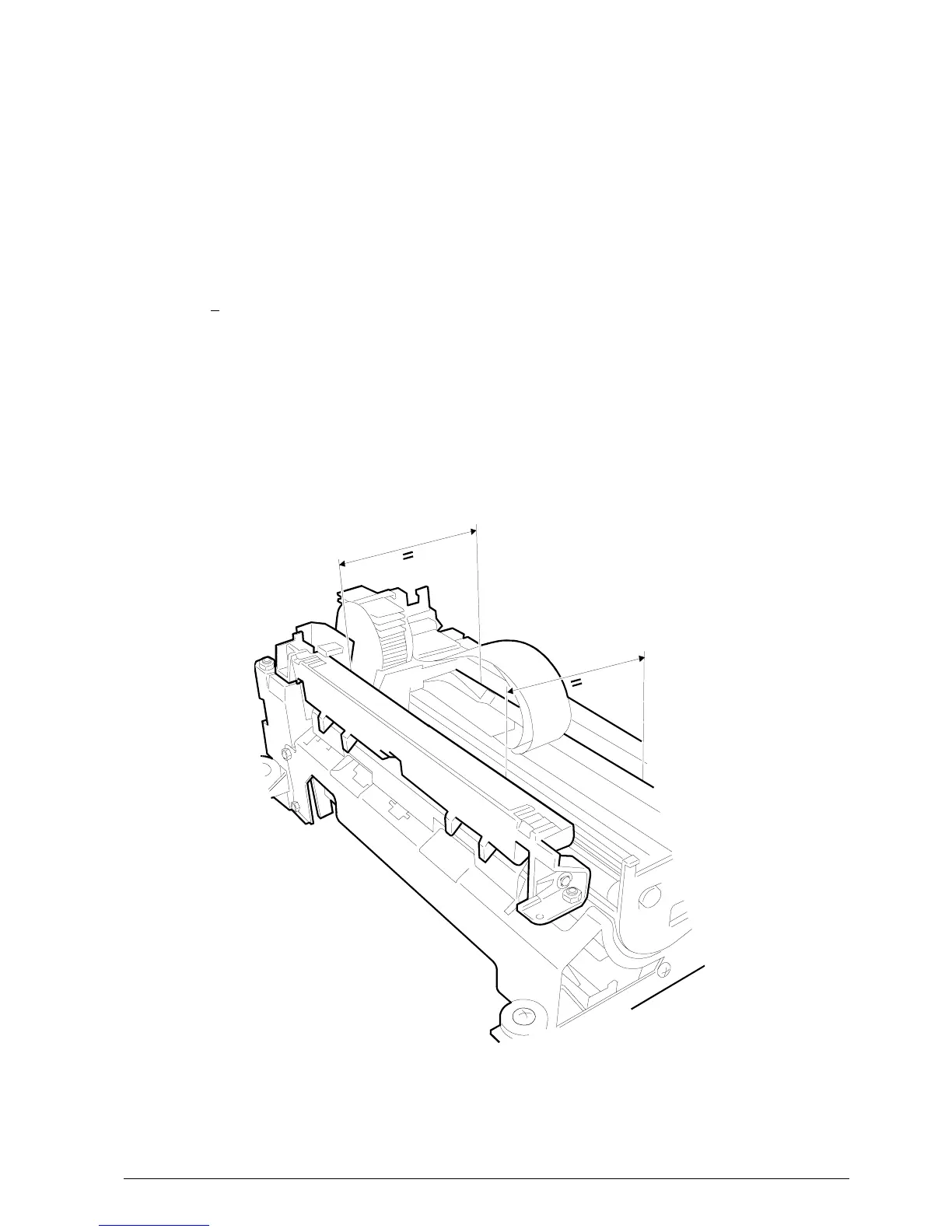

Figure 6-1
The following sections describe the adjustments to be
made on the different printer assemblies.
6.1 ADJUSTING THE PLATEN ON THE
BASIC STRUCTURE
After replacing the platen check the parallelism
between the platen and the basic structure. Parallelism
with the carriage guide plate is obtained using a
caliber and by adjusting the three securing screws
(tolerance of + 0.1mm).
Note After making this adjustment it is mandatory
that you follow the procedure described in
Section 6.2.
