1-8Service ManualXYAA6336
PIN Number Signal name
1 +24 VDC
2 GND
3 Frame GND
Shell Frame GND
1.5 POWER SUPPLY CHARACTERISTICS
The machine must be equipped with a power supply of the following characteristics:
DC VOLTAGE POWER
24 V +20 -10% 45 W (max. 75 W)
The following power supplies are optionally available to the user:
1) External AC power supply:
VOLTAGE POWER FREQUENCY
230 - 240 V 45 W (max 75 W) 50 - 60 Hz
115 - 230 V
2) Internal AC power supply:
VOLTAGE POWER FREQUENCY
115 - 230 V 40 W (max 75 W) 50 - 60 Hz

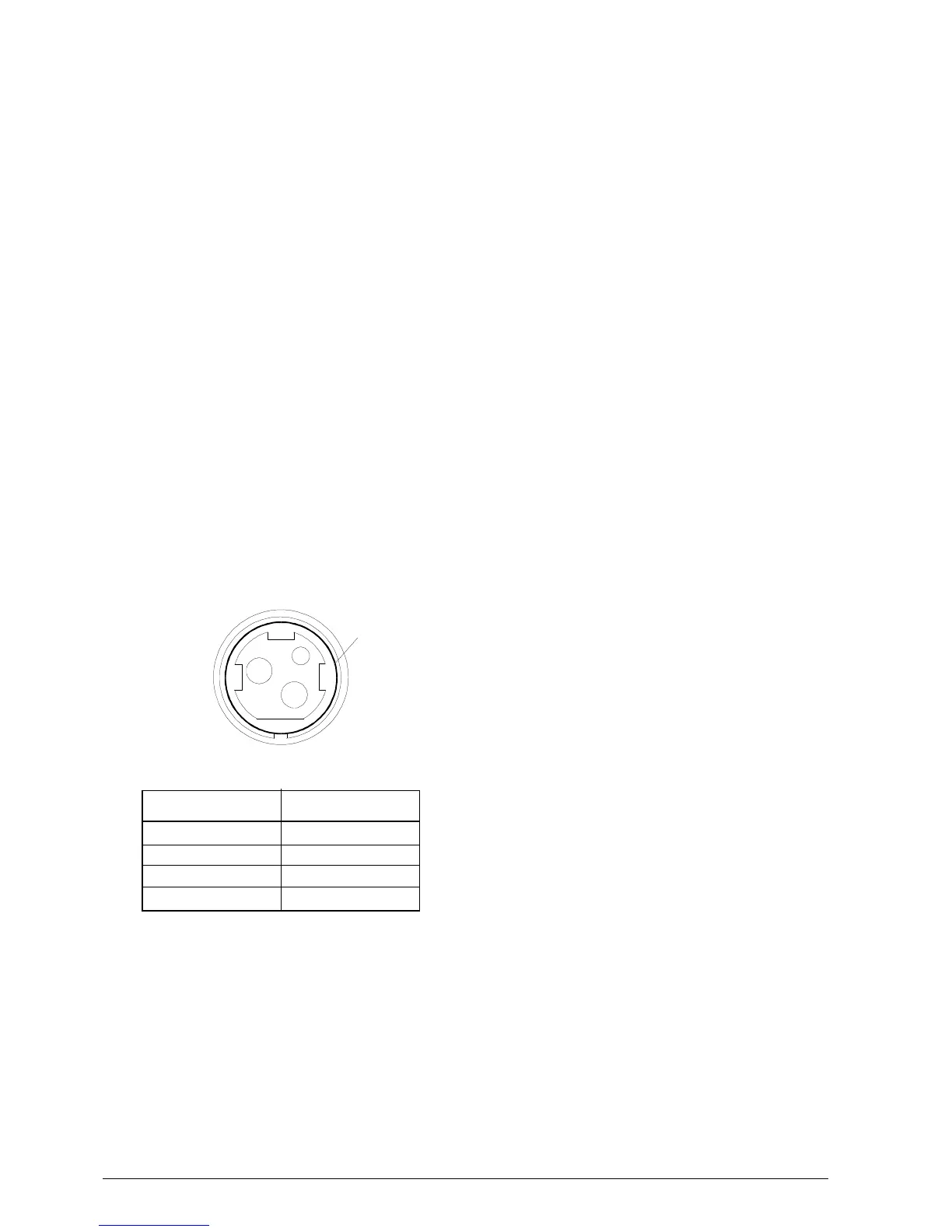

Power Supply Connector Drawing
1
2
3
Shell
