Olivetti PR4 SR - Removing the Ribbon Movement Pin

5-18Service ManualXYAA6336
PIN
EXCHANGER
FLAT CABLE GUIDE
BOARD
Figure 5-20
Figure 5-19
BRACKET

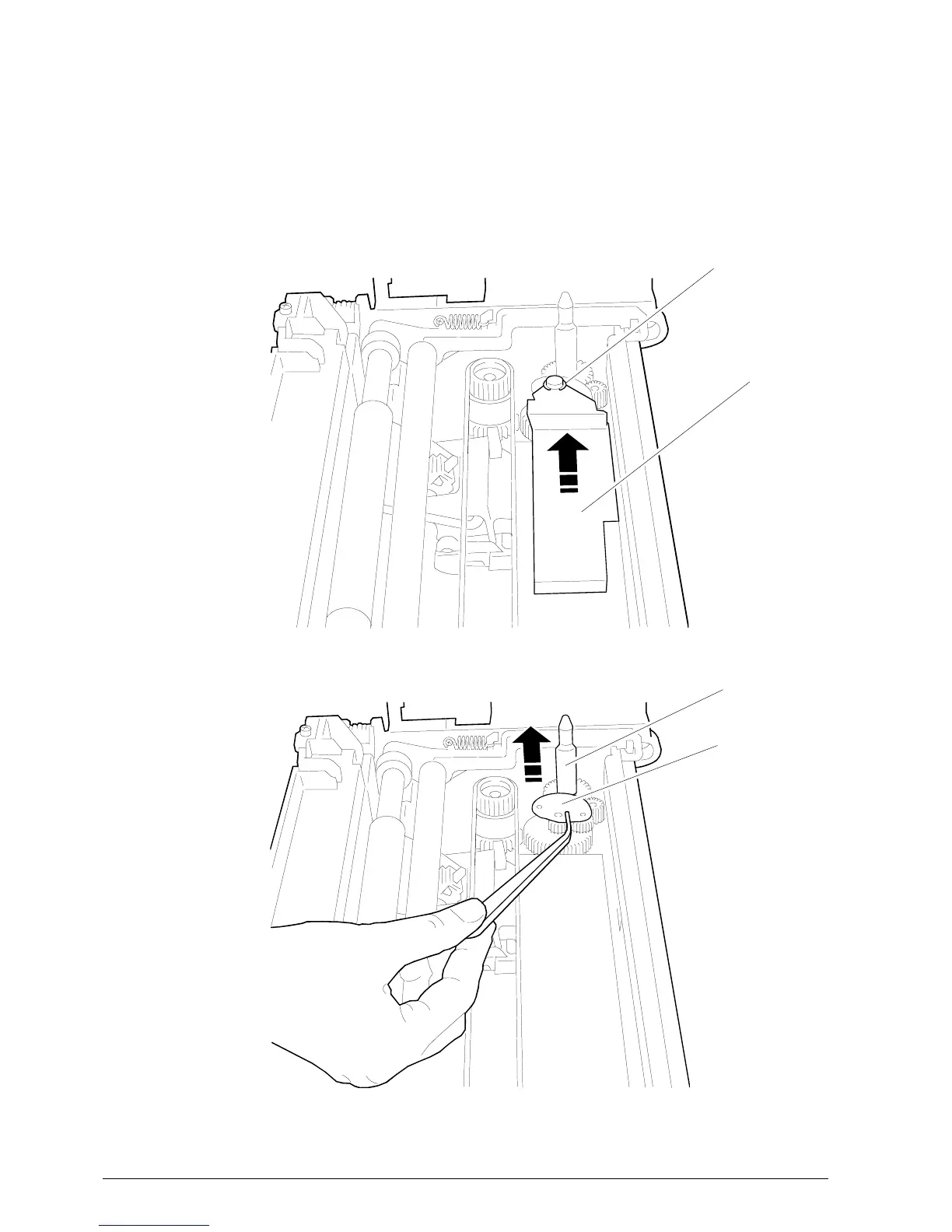

5.10 REMOVING THE RIBBON
MOVEMENT PIN
• Remove the printer front cover.
• Remove the flat cable guide board upwards
(Fig.5-12), after having removed the bracket.
Remove the exchanger using a pair of pliers
(Fig.5-13).
The pin is now free and can be removed by pulling
it upwards.
