6.9 ADJUSTMENT MENU
To enter into the Adjustment Menu follow the
instructions explained in Section 4.
After the mechanical reset performed once the menu
is entered, the console will assume the following
configuration:
Receipt LED ON
Journal LED ON
ON LED
Error LED
Journal LED
Slip LED
Receipt LED
Pressing the CONFIRM key will switch the machine to
the Adjustment Mode; an appropriate signal sounds.
The keys have the following functions
Receipt key (left) ___________ SKIP
Journal key (right) ___________ CONFIRM
An acoustic signal will sound and the configuration of
the LEDs will change each time the Receipt key is
pressed, as indicated in the following table:

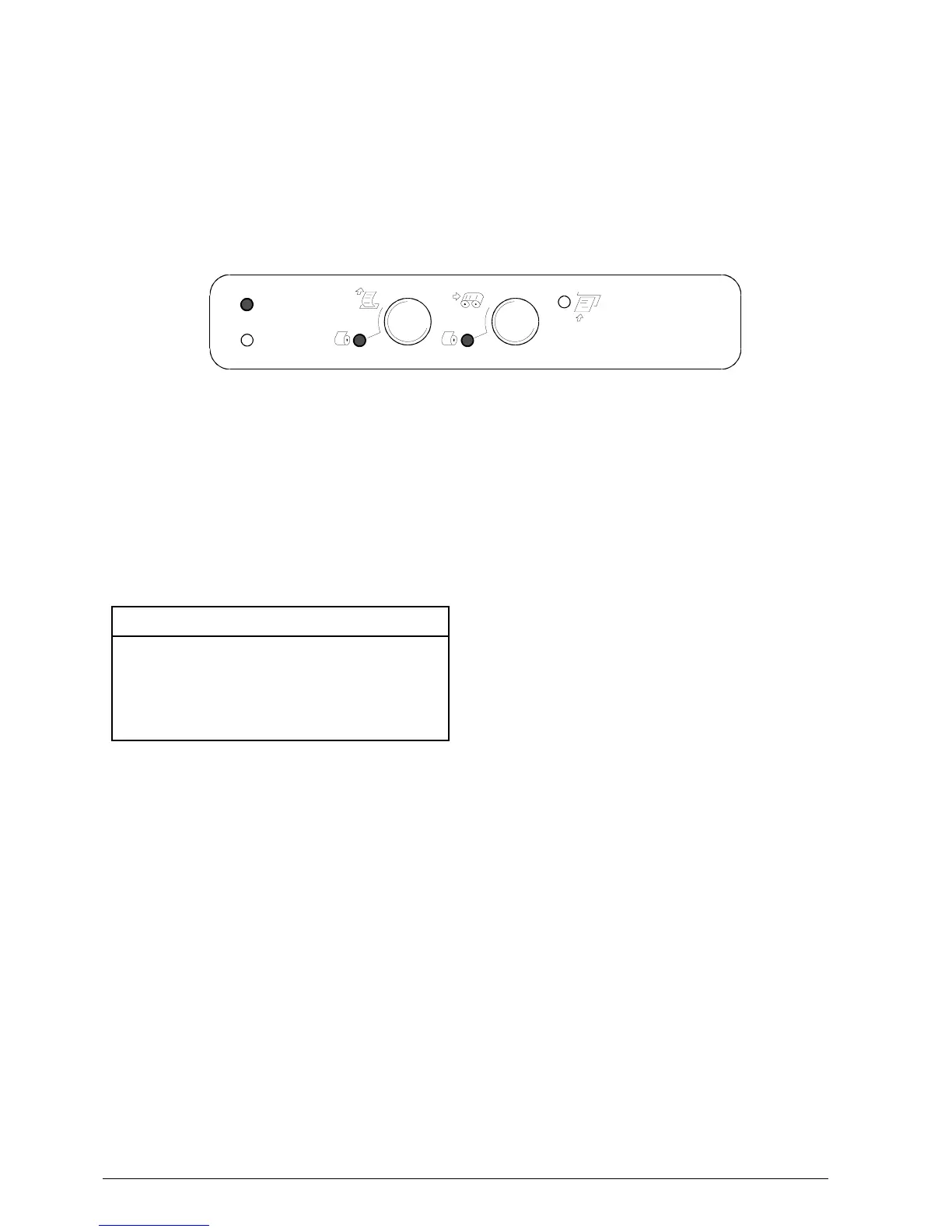

Figure 6-6
Receipt LED Journal LED Adjustment
ON ON Photosensors
ON OFF Micr
OFF ON Carriage
OFF OFF Exit
