6-8Service ManualXYAA6336

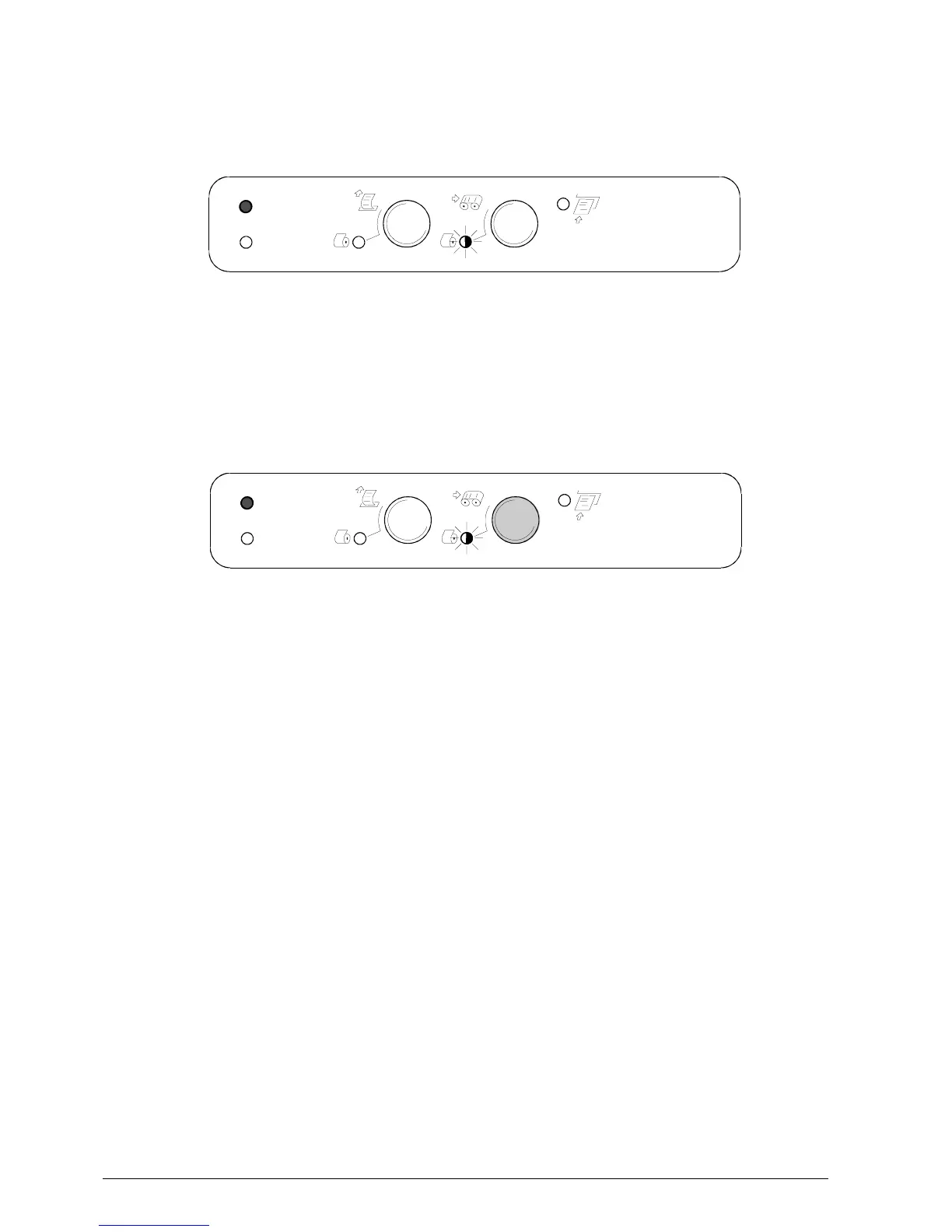

Console Configuration:
Flashing Journal LED:
ON LED
Error LED
Journal LED
Slip LED
Receipt LED
Figure 6-9
Operator Action
1. Press the Journal key:
ON LED
Error LED
Journal LED
Slip LED
Receipt LED
Figure 6-10
Printer Action
1. Moves the paper in position, covering all the
photosensors.
2. Performs the second part of the adjustment which
consists of multiple reads with paper present.
3. Stores in EEPROM the current and threshold
values detected during the adjustment.
4. Prints the previous and new values on paper.
5. Ejects the paper.
6. Returns to the Adjustment Menu of Fig. 6-6.
