Introduction - 5
Note: Unlike the other menu items, the two Save…functions of the main File Operations menu
directly effect the currently open test, i.e., the test procedure that was composed in the Test
Card View, or the test that was loaded in the CPC 100 file system beforehand.
Therefore, pressing Save, for example, does not save the test that you may have highlighted in
the folder tree, but the one that is currently open.

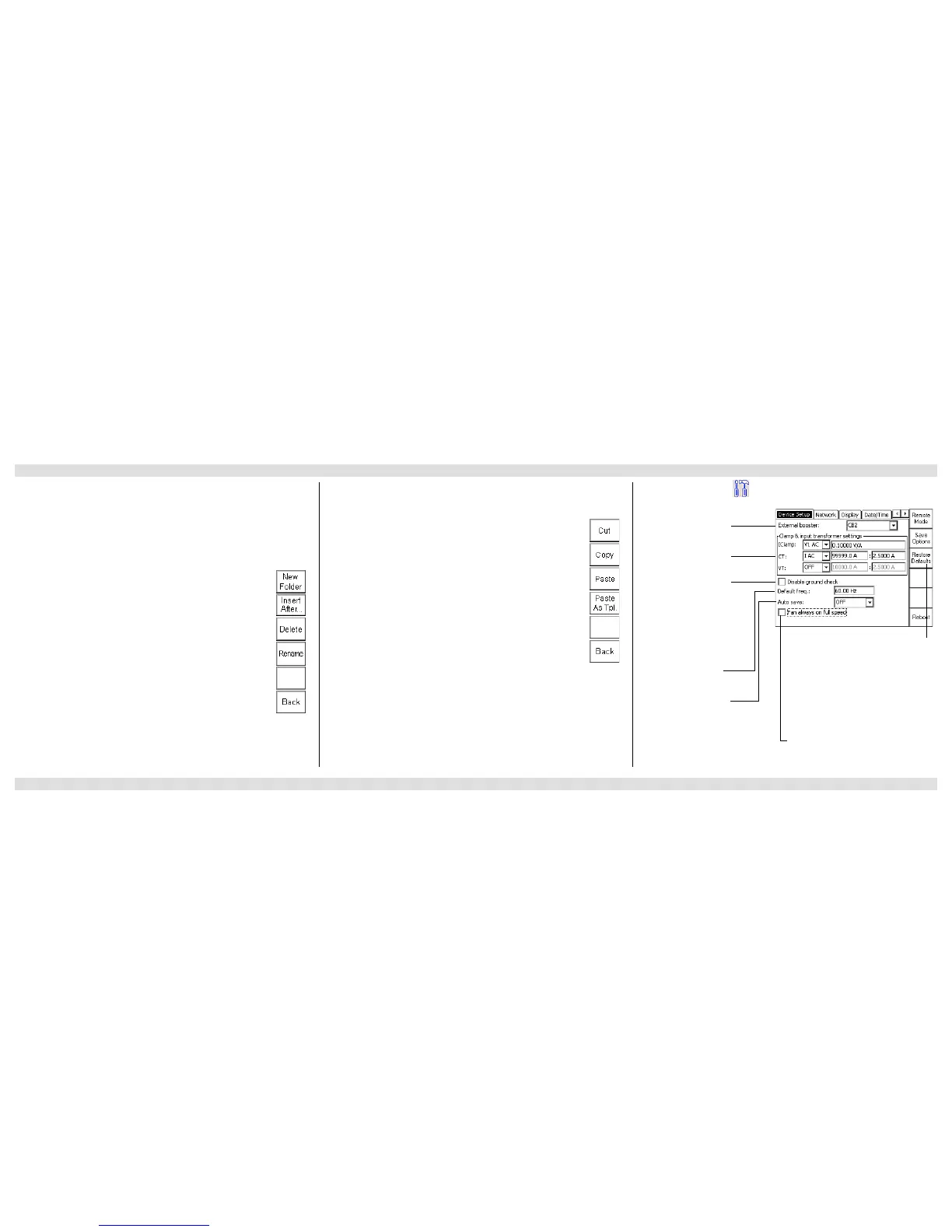

Submenu File
Submenu Edit
Note: If a folder is cut or copied to the Clipboard, the selection is recursive, i.e., all of its
subfolders will also be put to the Clipboard.
Cutting or copying a test or folder, and trying to paste it in the same location, opens the String
Editor.
Since a test or folder cannot exist twice under the same name at the same location, determine
a new name for it using the String Editor.
Device Setup
Opens the String Editor. You can create a new folder with any name of your choice.
Appends the contents of a test file (.xml) or template (.xmt) of your choice to the
currently open test.
Deletes the currently selected test or folder from the CPC 100’s disk space.
Opens the String Editor that enables you to rename the current test to any new
name of your choice.
(for future use)
Closes the submenu and returns to the main File Operations menu.
Set the external booster you
want to use (CB2, CU20 or
CU1).
Set current clamp
parameters and CT and/or
VT transformation ratio.
Select the check box if the
PE connection is intact and
an error message (313)
appears.
Operating the CPC 100
with the check box
selected can cause injury
or possibly death of the
operating staff!
Set the default frequency.
This value will be used for all
test cards.
Auto save automatically
saves the current test
settings in fixed intervals
specified to a file named
lastmeas.xml.
Resets all user-specific settings made in the
CPC 100 software to factory-defined defaults
including:
• the test card defaults
• the test procedure default
• all settings made at the Device Setup tab
(Sets external booster to CB2, sets CT and
VT to “OFF” and sets the default frequency
to 50 Hz.)
• the String Editor’s template strings
If selected, the CPC 100 cools down faster.
Thus, the duty cycle can be increased.
The CPC 100 File System The Options Menu
Select the test of your choice. Press Cut to put the selected test or folder to the
Clipboard. Proceed with Paste…
Select the test of your choice. Press Copy to copy test or folder to the CPC 100
clipboard. Proceed with Paste…
Move to the destination folder of your choice. Press Paste to insert the contents of
the CPC 100 clipboard to this folder.
Press Paste As Templ. to make the contents of the CPC 100 clipboard a test
procedure template.
(for future use)
Closes the Edit submenu and returns to the main File Operations menu.
