7 High-speed Counters
7-4
CJ2M CPU Unit Pulse I/O Module User’s Manual

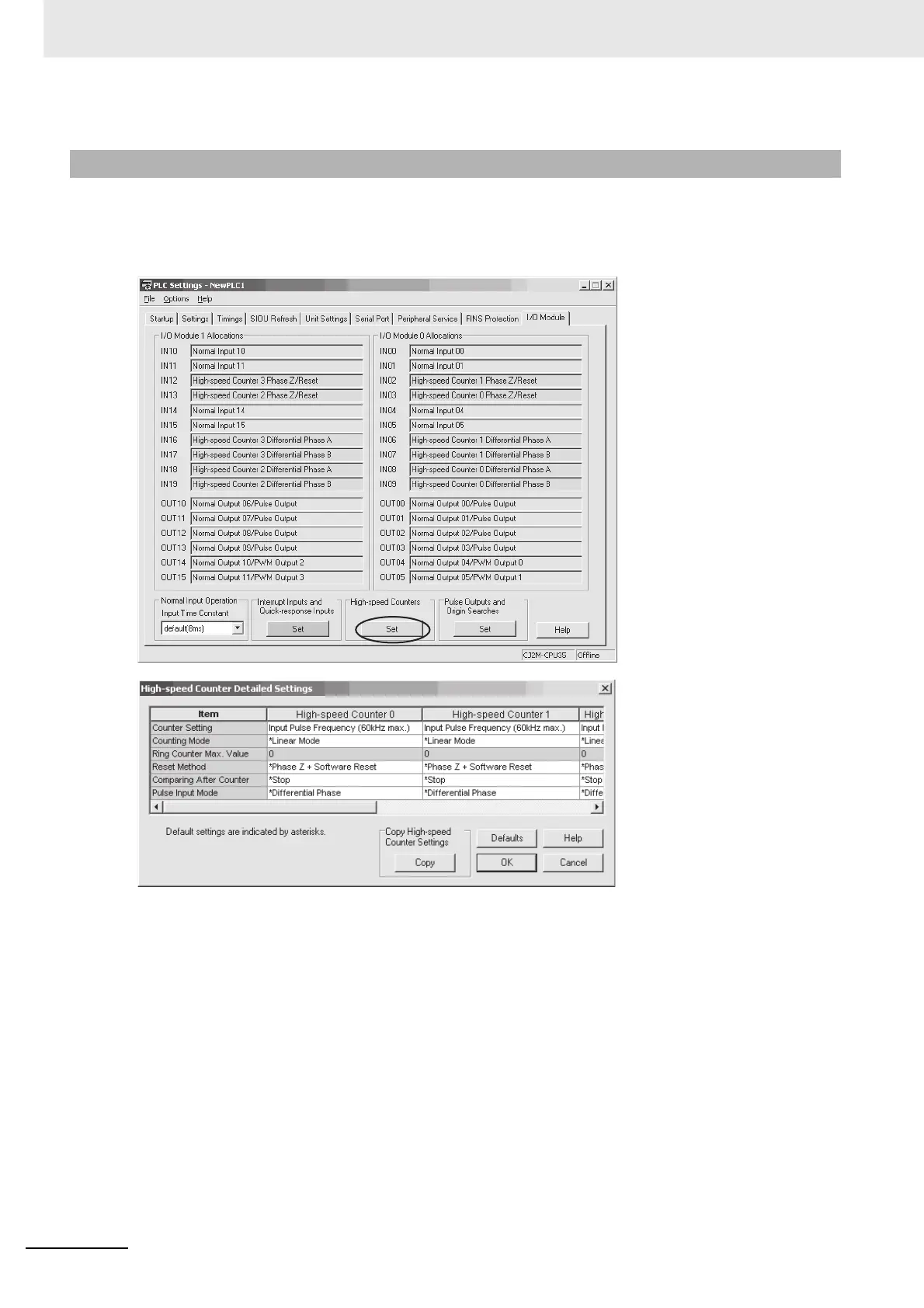

Click the I/O Module Tab and then click the Set Button in the High-speed Counter Settings Area. In the
High-speed Counter Detailed Settings Dialog Box, select the input pulse frequency for the Counter set-
ting parameter and set the counting mode, ring counter maximum value, reset method, pulse input
method, and other parameters.
7-1-4 PLC Setup
