Omron CJ2H-CPU6*-EIP Series User Manual

8-51
8 Pulse Outputs
CJ2M CPU Unit Pulse I/O Module User’s Manual
8-5 Defining the Origin
8
8-5-6 Origin Return

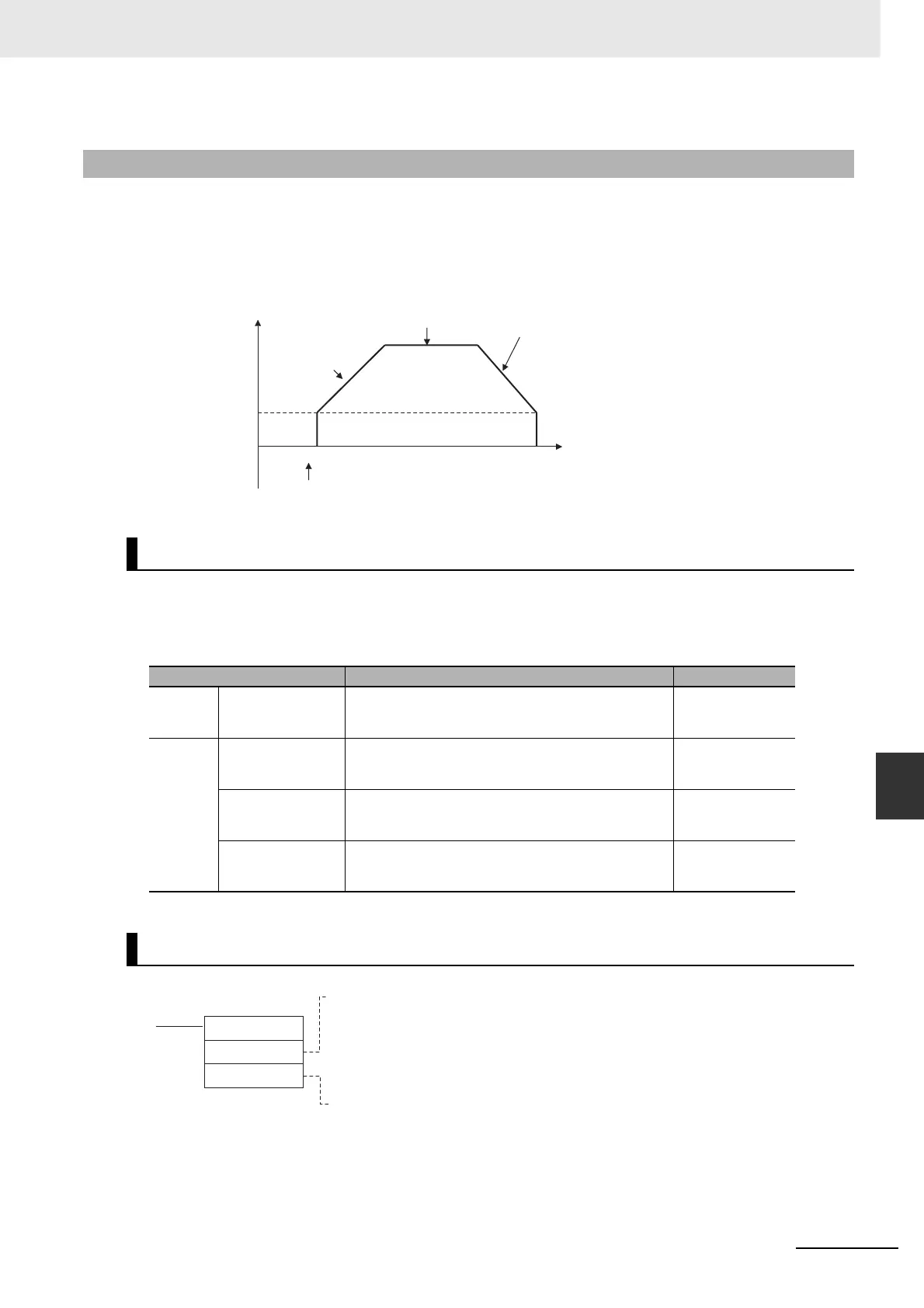

An origin return operation moves the motor to the origin position from any other position.
The origin return operation is controlled by the ORG(889) instruction.
The origin return operation returns the motor to the origin by starting at the specified speed, accelerat-
ing to the target speed, moving at the target speed, and then decelerating to a stop at the origin posi-
tion.
Set the origin return parameters in the Pulse Output and Origin Search Detailed Settings Dialog Box
that is accessed from the I/O Module Tab Page in the PLC Setup.
z Origin Return Parameters
Note An instruction error will occur if the origin is not defined (i.e., when using a relative coordinate system) when
the ORG(889) instruction is executed to perform an origin return operation.
8-5-6 Origin Return
PLC Setup
Name Description Setting range
Base Set-
tings
Search/Return Ini-
tial Speed (pps)
Sets the motor's starting speed when an origin return is
executed. Specify the speed in the number of pulses per
second (pps).
0 to 100 kpps
Origin
Return
Target Speed (pps) Sets the motor's target speed when the origin return is
executed. Specify the speed in the number of pulses per
second (pps).
0 to 100 kpps
Acceleration Rate Sets the motor's acceleration rate when the origin return
function is accelerating. Specify the amount to increase
the speed per 4-ms interval in 1-pps increments.
0 to 65,535
(pps/4ms)
Deceleration Rate Sets the motor's deceleration rate when the origin return
function is decelerating. Specify the amount to decrease
the speed per 4-ms interval in 1-pps increments.
0 to 65,535
(pps/4ms)
ORIGIN SEARCH Instruction: ORG(889)
Pulse frequency
Search/Return
Initial Speed (pps)
Start
Execution of ORG
Origin Return
Acceleration Rate
Origin Return Target Speed
Origin Return
Deceleration Rate
Stop
Time
ORG
P
C
P: Port Specifier
Pulse output 0: 0000 hex
Pulse output 1: 0001 hex
Pulse output 2: 0002 hex
Pulse output 3: 0003 hex
C: Control Data
Origin return and CW/CCW: 1000 hex
Origin return and pulse + direction output method: 1100 hex
