7-21
7 High-speed Counters
CJ2M CPU Unit Pulse I/O Module User’s Manual
7-3 High-speed Counter Interrupts
7

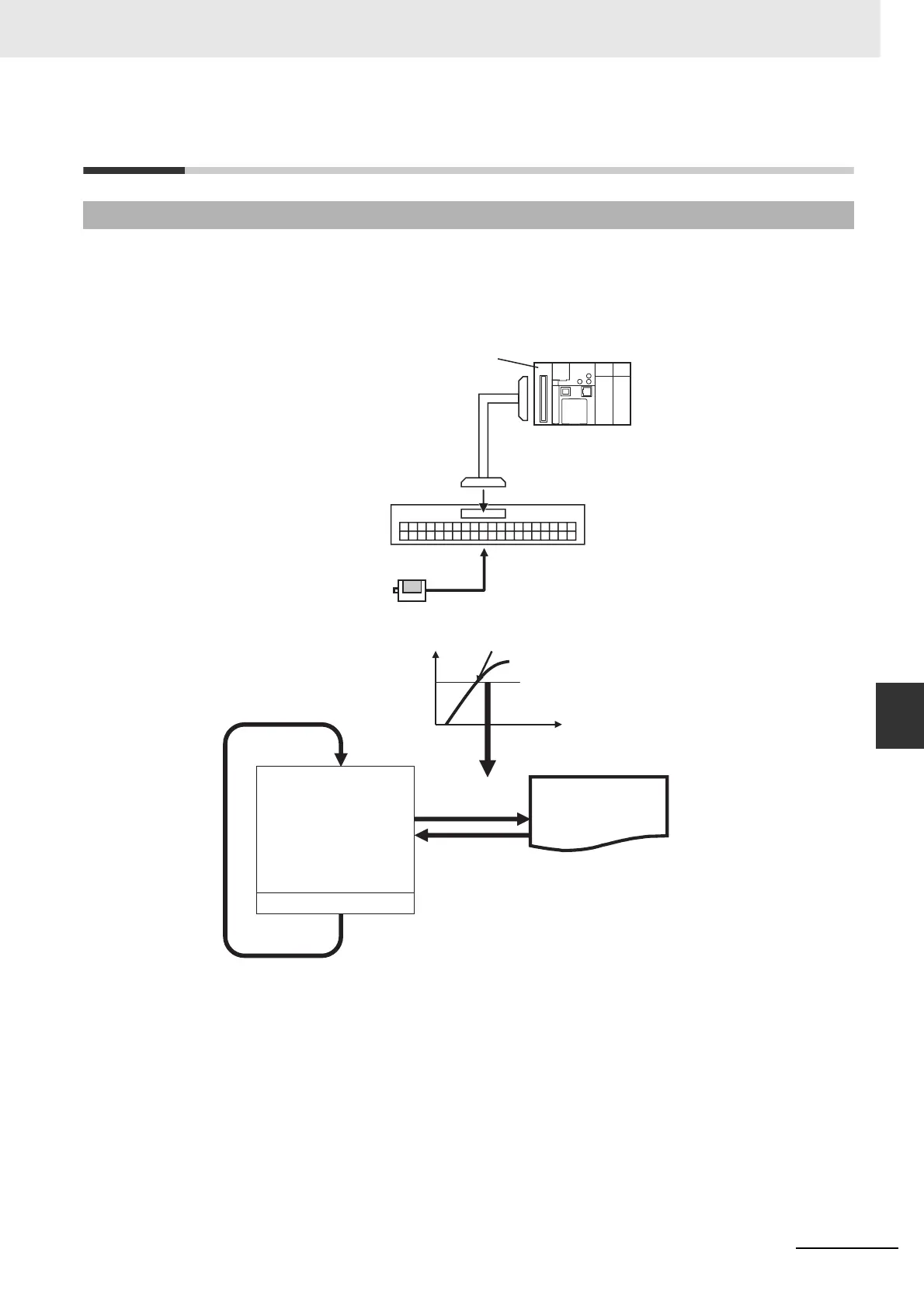

7-3-1 Overview
7-3 High-speed Counter Interrupts
A high-speed counter interrupt counts input pulses with the built-in high-speed counter and executes an
interrupt task when the count reaches the preset value or falls within a preset range (target-value or
range comparison). An interrupt task between 0 and 255 can be allocated with the CTBL(882) instruc-
tion.
7-3-1 Overview
END
END
Rotary Encoder
CJ2M CPU UnitPulse I/O
Module
Connecting Cable
Connector-Terminal
Block Conversion Unit
Cycle
Present value
Present value matches set target value
Time
Interrupt task
Ladder program
Interrupt occurs.
Cyclic task
(ladder program)
I/O refresh
