8 Pulse Outputs
CJ2M CPU Unit Pulse I/O Module User’s Manual
8-9 Application Example
8
8-9 Application Example
z Overview
First jogging is used to position the material. Then fixed-distance feeding is repeated.
z System Configuration
z Operation
1 The workpiece is set at the starting position using the jogging switch input (IN00: CIO 2960.00).
2 The workpiece is fed the specified distance (relative) using the positioning switch input (IN01:
CIO 2960.01).
3 When feeding has been completed, the cutter is activated using the cutter start output (OUT03:
CIO 2961.03).
4 Feeding is started again when the cutter finished input (IN03: CIO 2960.03) turns ON.
5 The feeding/cutting operation is repeated for the number of times specified for the counter (C0,
100 times).
6 When the operation has been completed, the Cut Operation Finished Output (OUT02:
CIO 2961.02). is turned ON.

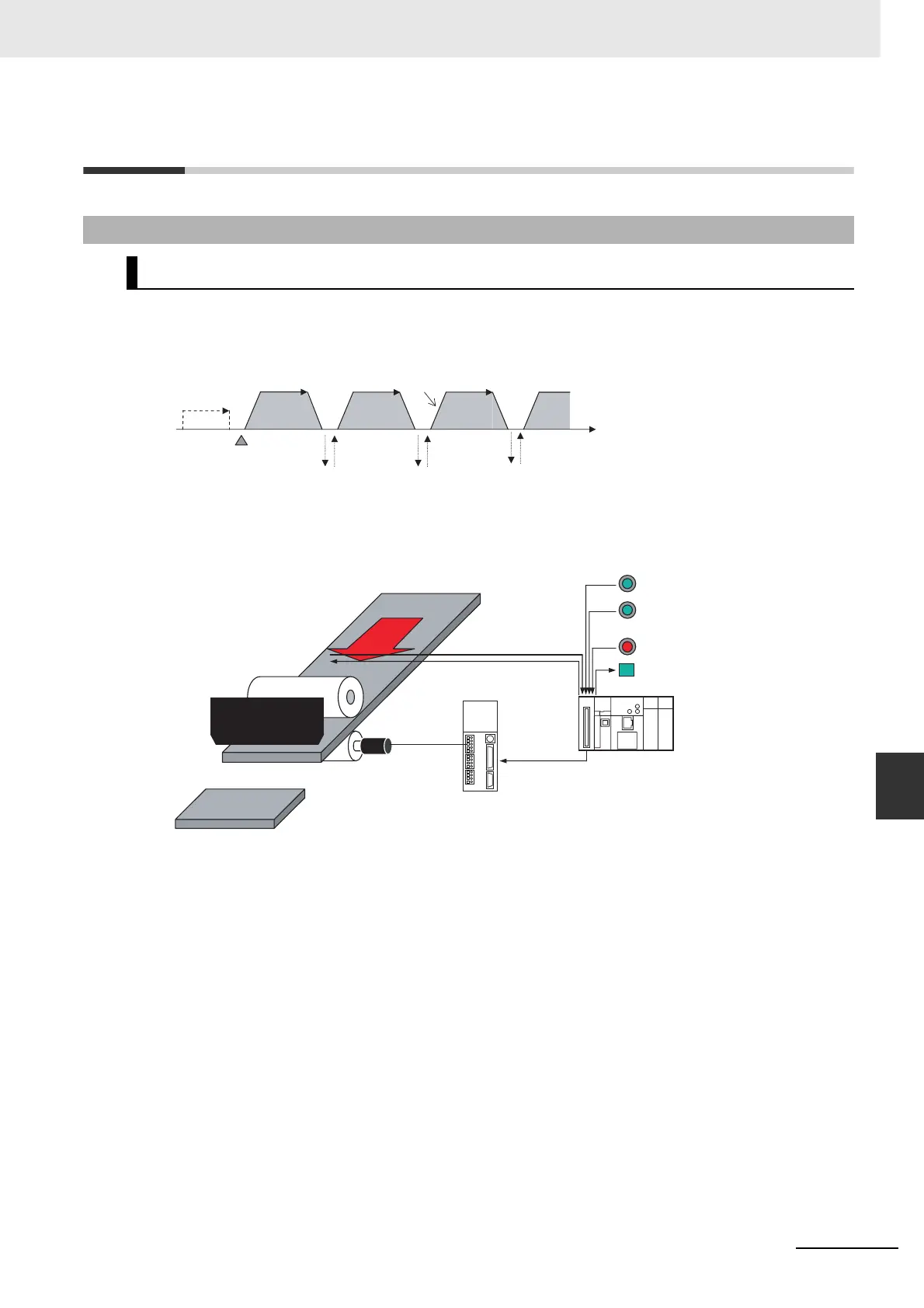

8-9-1 Cutting Long Material Using Fixed Feeding
Specifications and Operation
CW
1,000 Hz
10,000 Hz
50000
Material cut
with cutter
Material cut
with cutter
Material cut
with cutter
Acceleration: 1,000 Hz/4 ms
Jogging
Fixed-distance
feeding
(03E8 hex)
(2710 hex)
(03E8 hex)
(C350 hex)
Jogging switch
IN00: CIO 2960.00
Positioning switch
IN01: CIO 2960.01
Immediate Stop Switch:
IN02: CIO 2960.02
Cut operation finished
OUT02: CIO 2961.02
Pulse output (CW/CCW)
Cutter finished
IN03: CIO 2960.03
Cutter start
OUT03: CIO 2961.03
