CJ2M CPU Unit Pulse I/O Module User’s Manual

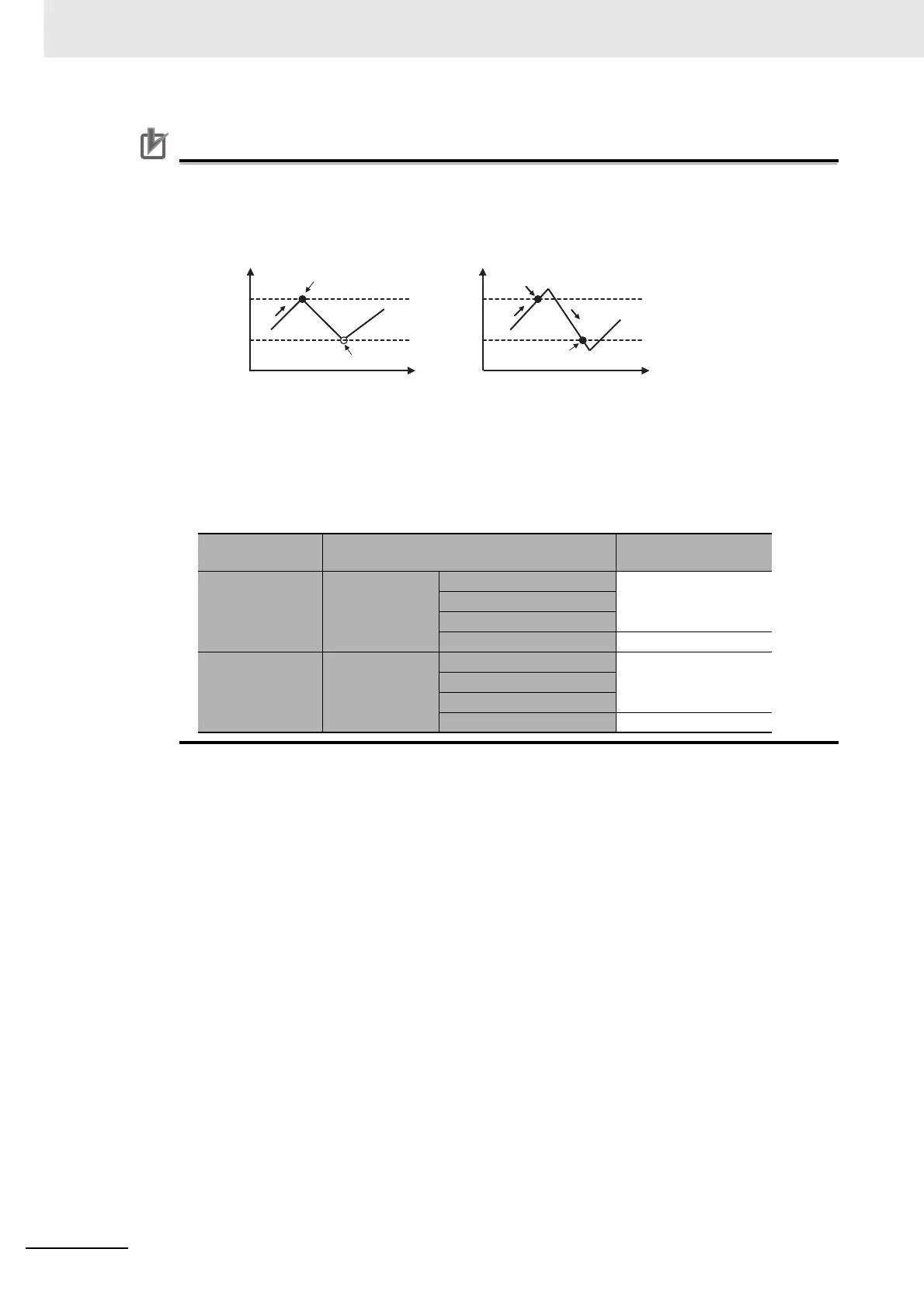

Precautions for Correct UsePrecautions for Correct Use
• When the count direction (incrementing/decrementing) changes at a PV that matches a target
value, the next target value will not be matched in that direction.
Set the target values so that they do not occur at the peak or trough of count value changes.
• The comparison conditions (target value and count directions) cannot be set more than once
in the same table. An instruction error will occur if the same comparison conditions appear
twice.
• An instruction error will occur if “when decrementing” is set as the comparison condition when
the high-speed counter is set to Increment Pulse Input Mode.
• The maximum response frequencies of the high-speed counters are given in the following
table.
Pulse I/O Module
No.
Item
Maximum response
frequency
0 (on the right)
High-speed
counter 0 or 1
Increment pulse 100 kHz
Up and down pulses
Pulse + Direction Mode
Differential phase (×4) 50 kHz
1 (on the left)
High-speed
counter 2 or 3
Increment pulse 100 kHz
Up and down pulses
Pulse + direction
Differential phase (×4) 50 kHz
Match
Match
Do not match.
Match/Target value + 1
Target value + 2 or higher
Target value 1
Target value 1
Target value 2
Target value 2
Bad
OK
