9 PWM Outputs

9-6

CJ2M CPU Unit Pulse I/O Module User’s Manual

z PLC Setup

There are no settings that need to be made in the PLC Setup.

z DM Area Settings

• PWM(891) Operand Settings (D0 and D1)

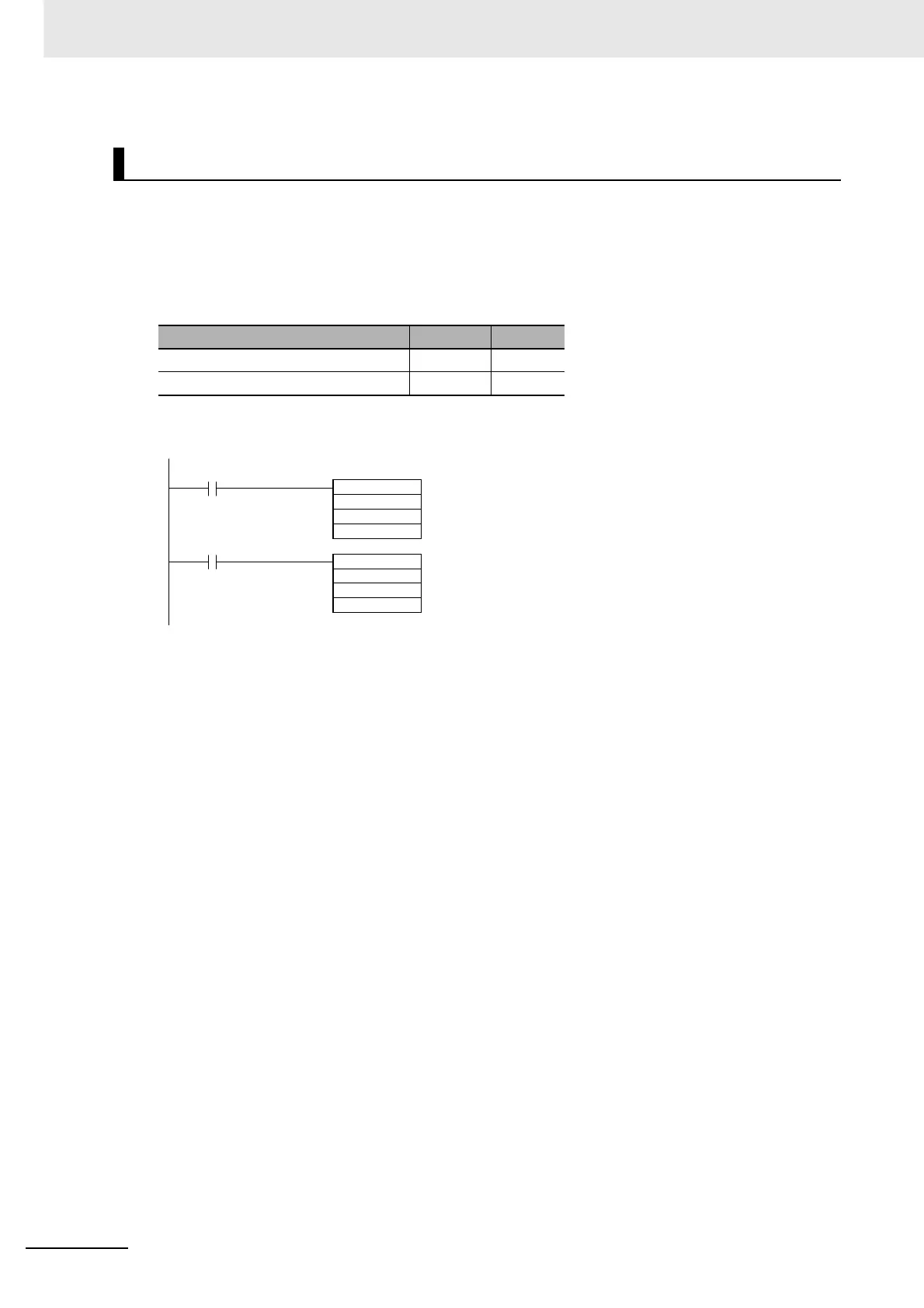

z Ladder Diagram

Preparations

Settings Word Data

Frequency: 2,000.0 Hz D0 #4E20

Duty ratio: 40.0% D1 #0190

@PWM

#1000

2960.00

#1000

#0003

D10

2960.01

@INI

Start input

Stop input

←

PWM output 0

(duty ratio: in increments of 0.1%, frequency: in increments of 0.1 Hz)

←Frequency setting

←Duty ratio

←PWM output 0

←Stops pulse output

←Not used.
