3-15
3 I/O Specifications and Wiring for Pulse I/O Modules
CJ2M CPU Unit Pulse I/O Module User’s Manual
3-2 Wiring
3

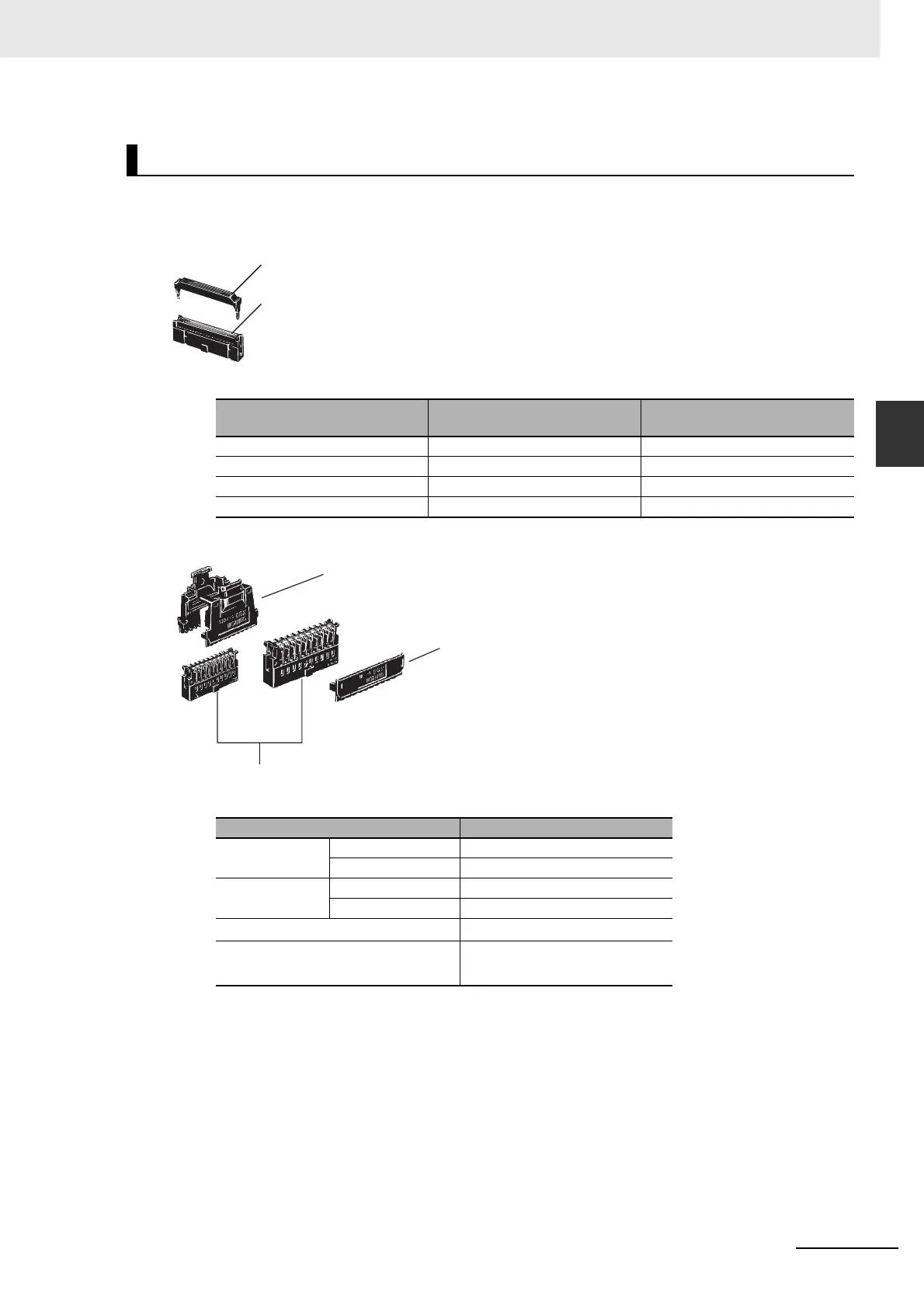

3-2-3 Wiring
z Types of Connectors
MIL Flat Cable Connectors (40-pin Pressure-fitted Connectors)
MIL Connectors with Loose Wires (40-pin Pressure-fitted Connectors)
*1 Contacts are included with the Socket.
*2 Select either the Hood Cover or the Partial Cover.
z Wire Sizes
We recommend using a cable with wires sized between 28 and 24 AWG (0.2 to 0.08 mm
2
). Use a
wire with an outer diameter of 1.61 mm max.
Directly Connecting a Self-made Cable with a Connector
Name OMRON model number
Daiichi Electronics model
number
Socket XG4M-4030 FRC5-AO40-3TON
Strain Relief XG4T-4004 ---
Set model number XG4M-4030-T FRC5-AO40-3TOS
Recommended Flat Cable XY3A-400@ ---
Name OMRON model number
Socket AWG24 XG5M-4032-N
AWG 26 to 28 XG5M-4035-N
Contacts
*1
AWG24 XG5W-0031-N
AWG 26 to 28 XG5W-0034-N
Hood Cover
*2
XG5S-4022
Semi-cover
*2
(2 required for each socket)
XG5S-2001
Socket
Strain relief
Hood Cover
Partial Cover
Socket
