501
LCD Option Board Function Section 8-6

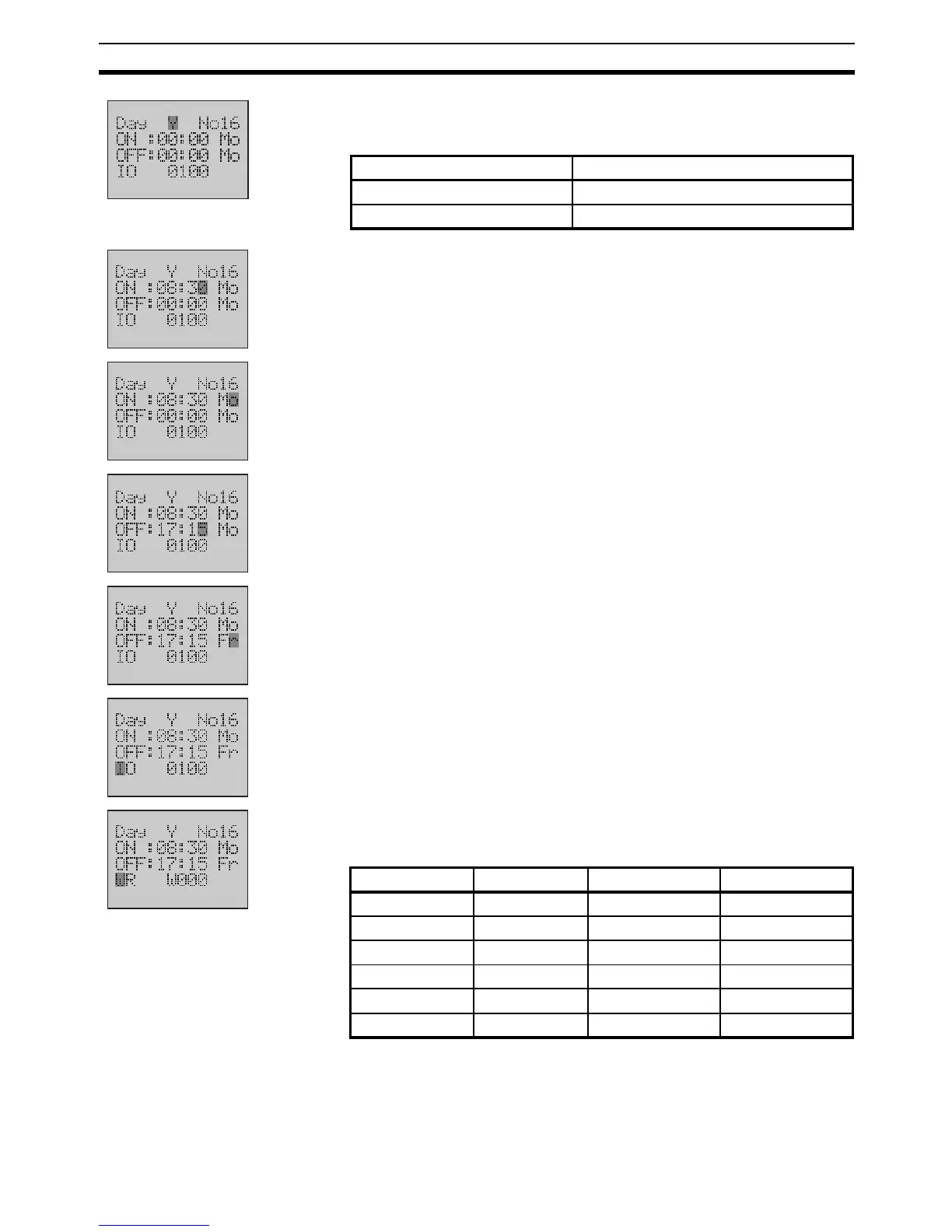

6. Use the Forward button to move the column cursor to the timer flag position.
Press the Up button to select the timer flag Y.
Select the timer flag in the following table.
7. Use the Forward button to move the column cursor to the ON time posi-
tion.
Use the Up button to change time to 08:30.
8. Use the Forward button to move the column cursor to the ON week posi-
tion.
The present setting is Monday.
9. Use the Forward button to move the column cursor to the OFF time posi-
tion.
Use the Up button to change time to 17:15.
10. Use the Forward button to move the column cursor to the OFF week po-
sition.
Press the Down or Up button to select Friday.
11. Use the Forward button to move the column cursor to the position of con-
trol bit.
12. Press the Up button to select WR.
The following table shows the word type which can be selected, including
the default address and the setting range for each type.
Timer flag Meaning
YTimer in use
N Timer not in use
Timer Word Default address Range
All IO 0100 0100 to 6143
Day timer WR 001 001 to 511
Weekly timer WR 002 002 to 511
Calender timer WR 003 003 to 511
All HR 000 000 to 511
All AR 448 448 to 959
