Connecting Programming Devices Section 1-3
Connection Setup Using the CX-Programmer

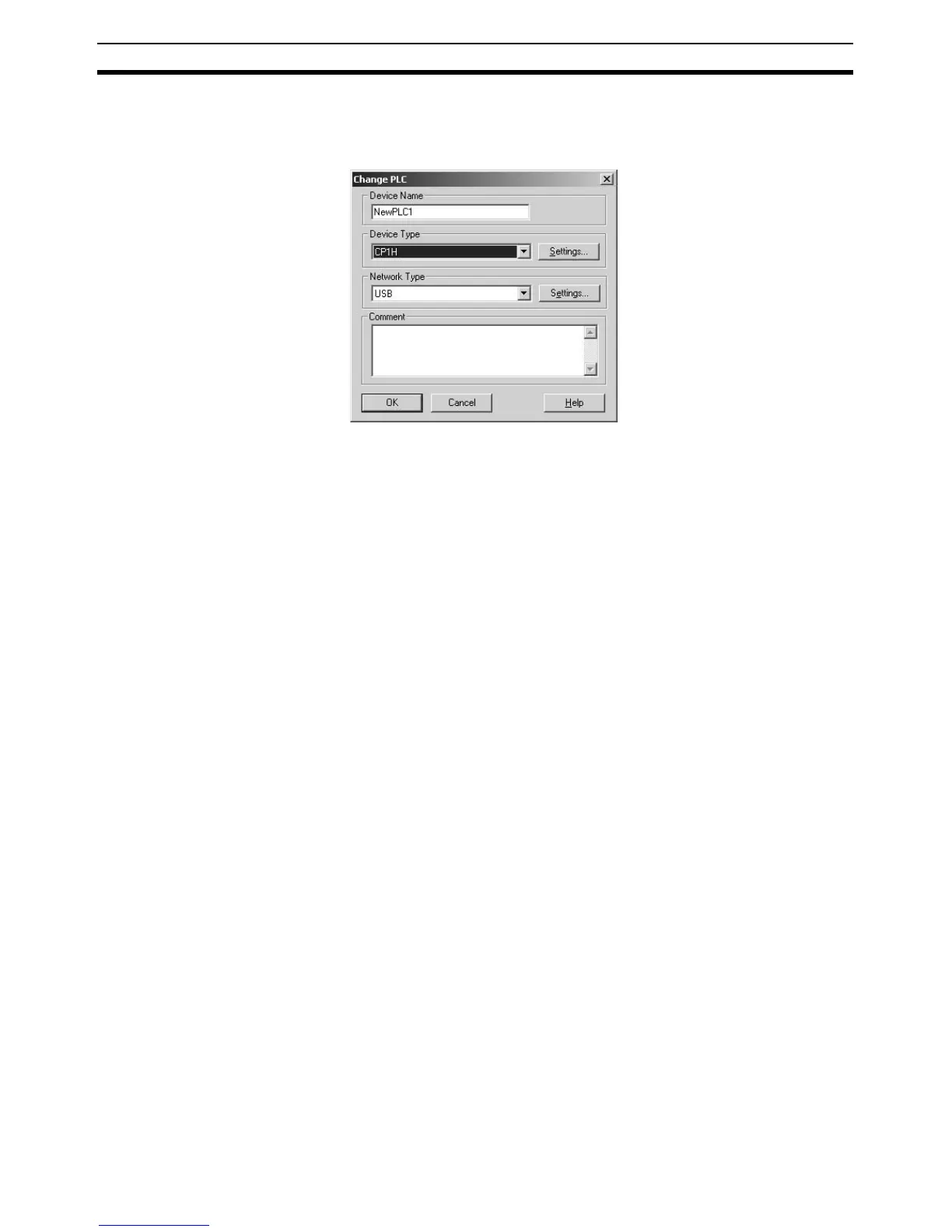

1,2,3... 1. Select CP1H as the device type in the Change PLC Dialog Box and con-
firm that USB is displayed in the Network Type Field.
2. Click the OK Button to finish setting the PLC model. Then connect to the
CP1H by executing the CX-Programmer's online connection command.
