4-3 Manually Setting Data Links
4-3-11 Transferring the Data Link Table
4-3-11 Transferring the Data Link Table
There are two methods that can be used to transfer data link tables.
• Transfer data link tables to all PLC nodes on the network at the same time.
• Transfer data link tables to all PLC nodes on the network at the same time.
Transferring to All Nodes on the Network

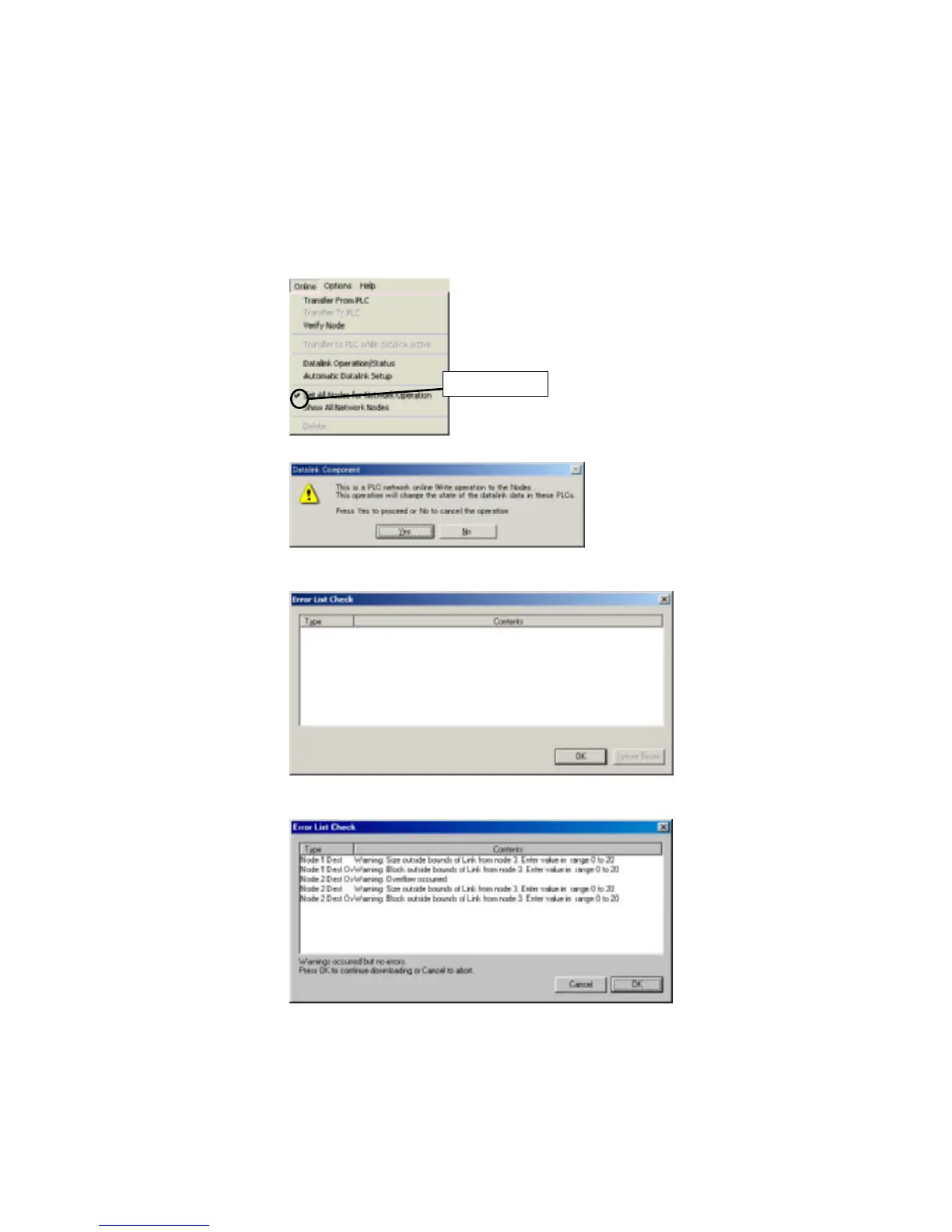

1 Select Set All Nodes for Network Operation from the Datalink Component’s
Online Menu. Selecting this operation allows the data link tables to be transferred
simultaneously to multiple PLCs.
Confirm that there is a
check mark.
2 Select Online - Transfer to PLC. The following dialog box will be displayed.
3 Click the Yes Button.
An error list will be displayed.
4 If there are no errors, click the OK Button. The data link tables will be transferred to
all PLC nodes and then the transfer results will be displayed.
