6-7 Master Parameter Editing Details (Tab Descriptions)
6-7-1 Edit Device Parameters on CS1W-DRM21(-V1)/CJ1W-DRM21

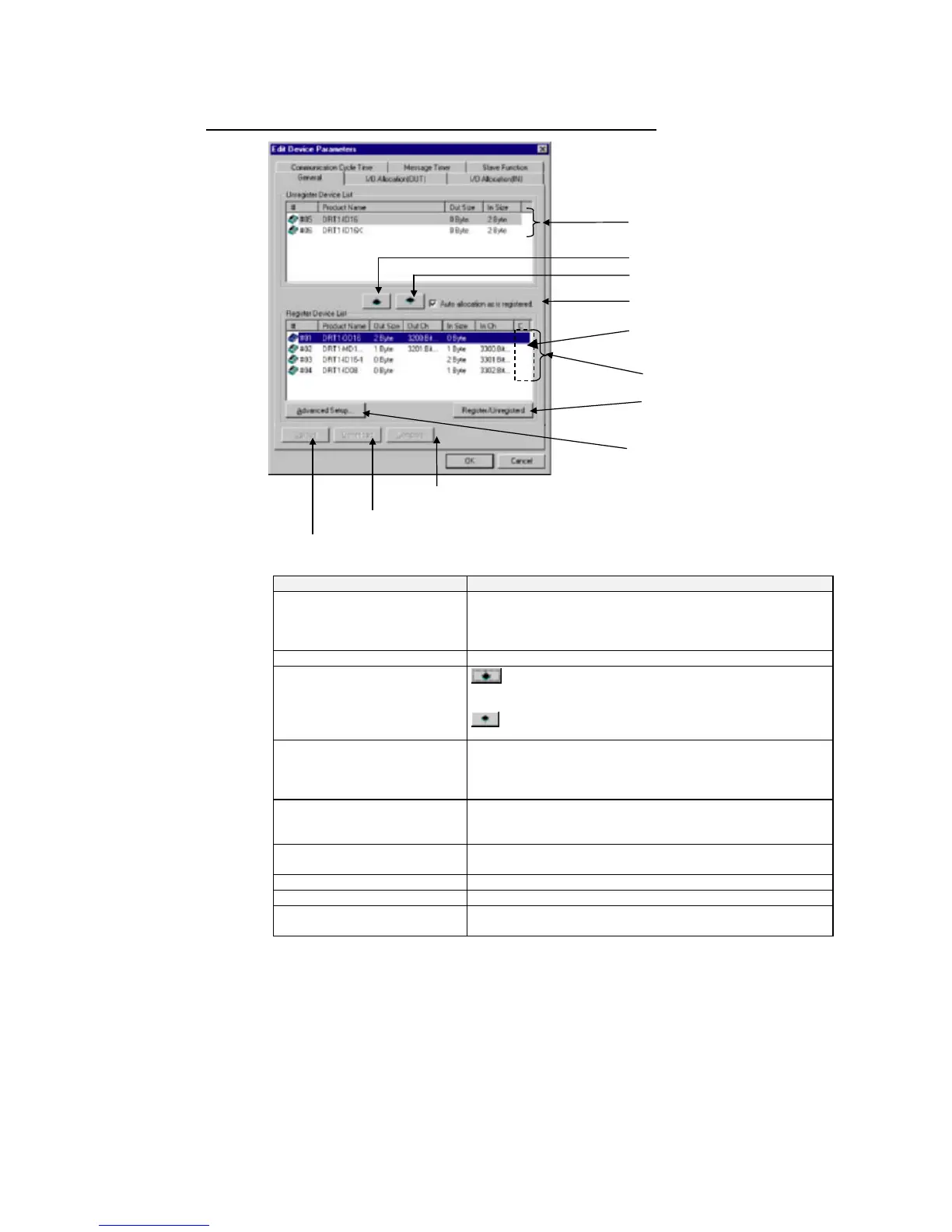

General Tab Page of CS1W-DRM21(-V1)/CJ1W-DRM21
Device Register button
Device Unregister button
Unregistered Device List
Register/Unregistered Button
Registered Device List
Advanced Setup Button
Upload parameters (Usable only when online.)
Compare parameters (Usable only when online.)
Download parameters (Usable only when online.)
Automatic allocation as registered
An asterisk (*) appears when
advanced settings have been
made for the connection.
Item Description
Unregistered Device List Displays unregistered devices. Unregistered devices refer to
slaves that are displayed in the
Network Configuration Window but have not been registered
with a master.
Registered Device List Displays slaves that are presently registered with a master.
Device Register and Unregister
Buttons
: By pressing this button, the selected device will move
from the Unregistered Device List to the Registered Device
List.
: By pressing this button, the device will move from the
Registered Device List to the Unregistered Device List.
Auto allocation as is registered Check this box when registering the slaves with the master in
the Edit Device Parameters Window so that the slaves will be
allocated to an unused area in blocks of words in order of
registration.
Register/Unregister Buttons Click this button to unregister the I/O allocation of the selected
slaves or to make the I/O reallocation of the slaves in the order
of earlier addresses.
Advanced Setup Button Click this button to set the connections or display the device
information.
Upload Uploads the parameters of the network device online.
Download Downloads the parameters to the network device on line.
Compare Compares the parameters of the selected network device with
the parameters stored in the CX-Integrator.
6-23
