6-12 Downloading the Network Configuration/Device Parameters to Devices
6-12-2 Downloading Device Parameters
6-12-2 Downloading Device Parameters
Device parameters are downloaded through the Network Configuration Window or Edit
Device Parameters Dialog Box.
Note
•Downloaded device parameters will be valid only after the devices are reset unless
they are the OMRON CVM1-DRM21-V1, C200HW-DRM21-V1, CS1W-DRM21, or
CJ1W-DRM21.
•The parameters in the CX-Integrator will differ from the actual parameters if the No
Button is clicked to quit the Edit Device Parameters Dialog Box after the parameters
have been downloaded.
Downloading Parameters through the Edit Device Parameters Dialog Box
Component - Parameter - Edit - Download Button
To download the parameters through the Edit Device Parameters Dialog Box, use the
following procedure.
1. Place the CX-Integrator online.
2. Select the device.
3. Select Component - Parameter - Edit.
4. Click the Download Button.

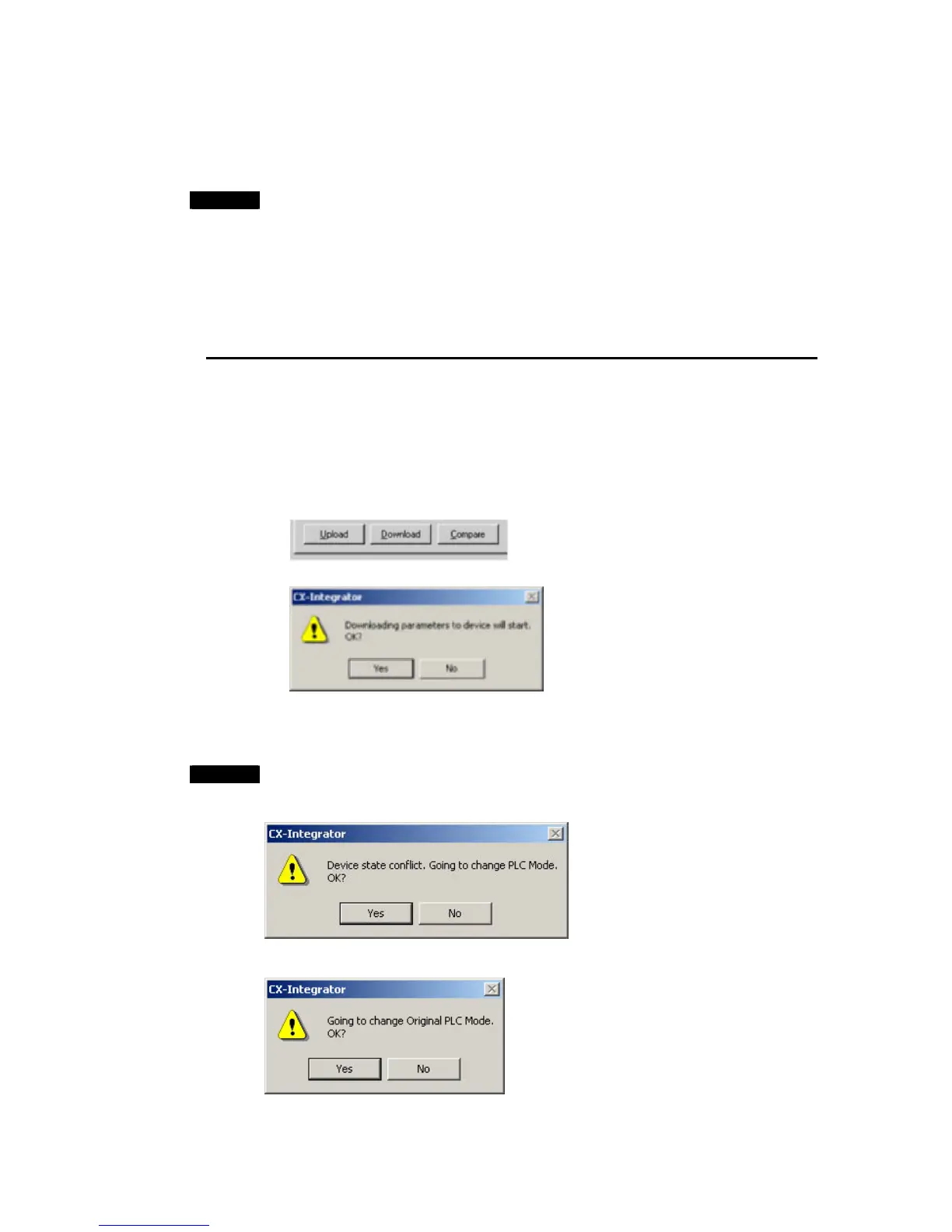

5. The following confirmation dialog box will be displayed.
6. Click the Yes Button.
The progress dialog box will be displayed while the parameters are being
downloaded.
Note
When downloading parameters with the Edit Device Parameters Dialog Box, the
following dialog box will appear if the operation mode of the CPU Unit is set to anything
other than PROGRAM Mode.
Click the Yes Button to change the operation mode of the CPU Unit to PROGRAM
Mode and start downloading.
To Next Page
