6-14 Monitoring Devices
6-14-2 Monitoring Devices
Status Tab Page

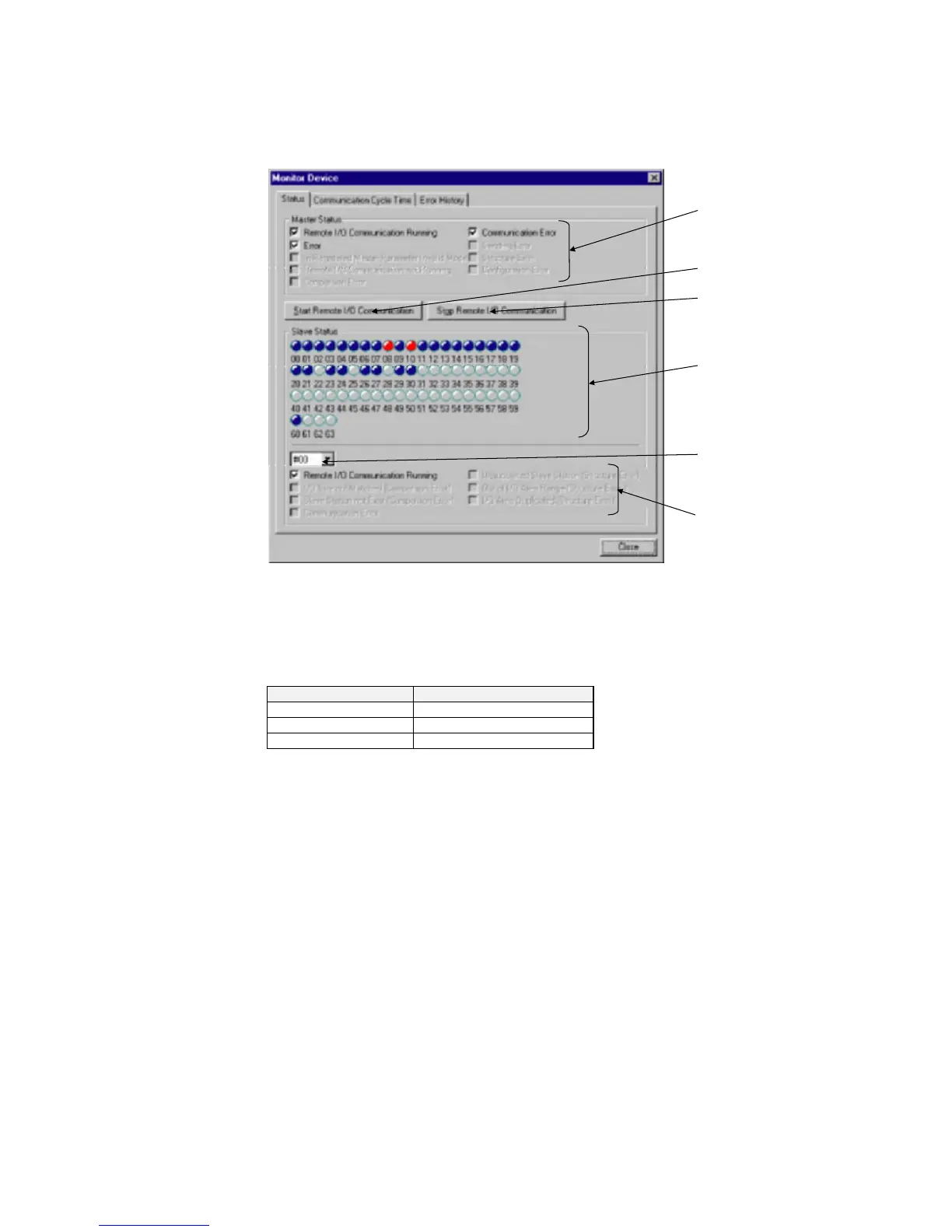

The Status Tab Page displays the status of the master and slaves in remote I/O
communications.
Master status
Starts remote I/O
communications.
Stops remote I/O
communications.
Slave status
Detailed slave status
Stops remote I/O for
detailed slave status
Remote I/O communications between the master and slaves can be started or stopped
by clicking the Start Remote I/O Communication or Stop Remote I/O
Communication Button.
The slave status indicators change according to the status of the slave as shown
below.
Indicator Status
Gray Device not registered
Blue In normal communications
Red Communications error
To monitor the detailed status of another slave device, select the corresponding node
address.
