8-2 Transferring Screen Data through the PLC
8-2-2 Procedure

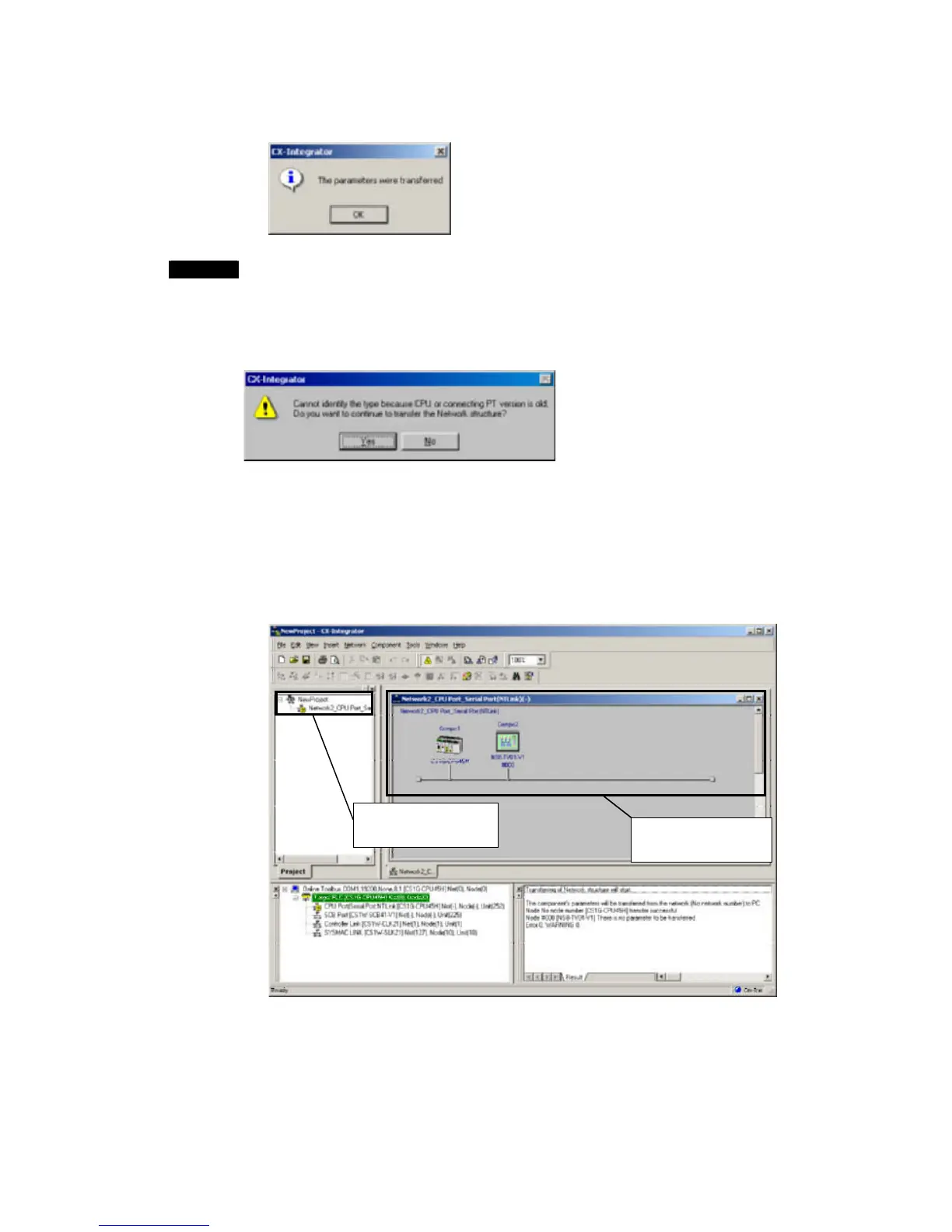

8. The following dialog box will be displayed when the transfer is completed.
Click the OK Button.
Note
The following conditions must be satisfied in order to correctly transfer the network
configuration.
• The CS/CJ-series CPU Unit must be of Lot No. 030201 (Feb. 1 2003) or later.
• The NS-series PT system version must be 6.0 or later.
If the lot number for the CPU Unit to be connected is too old, or if the PT version is too
old, the following message will be displayed.
IF this occurs, the network configuration will not be correctly transferred, the NS-series
PT will display Unknown-HMI, and the special application will not start (in a following
step below). Start the CX-Designer separately and make the settings.
9. The NS-series PT connected directly to the CPU Unit’s built-in RS-232C serial port
will be displayed in the Network Configuration Window along with one PLC. (The
Network Configuration Window’s background will be gray to indicate that the
CX-Integrator is online.)
At the same time, the NT Link will be added in the Workspace Window.
The NT Link network configuration
is displayed in the Network
Configuration Window.
The new NT Link is added in the
Workspace Window.
8-8
