1-6 Menus
1-6-2 Pop-up Menus

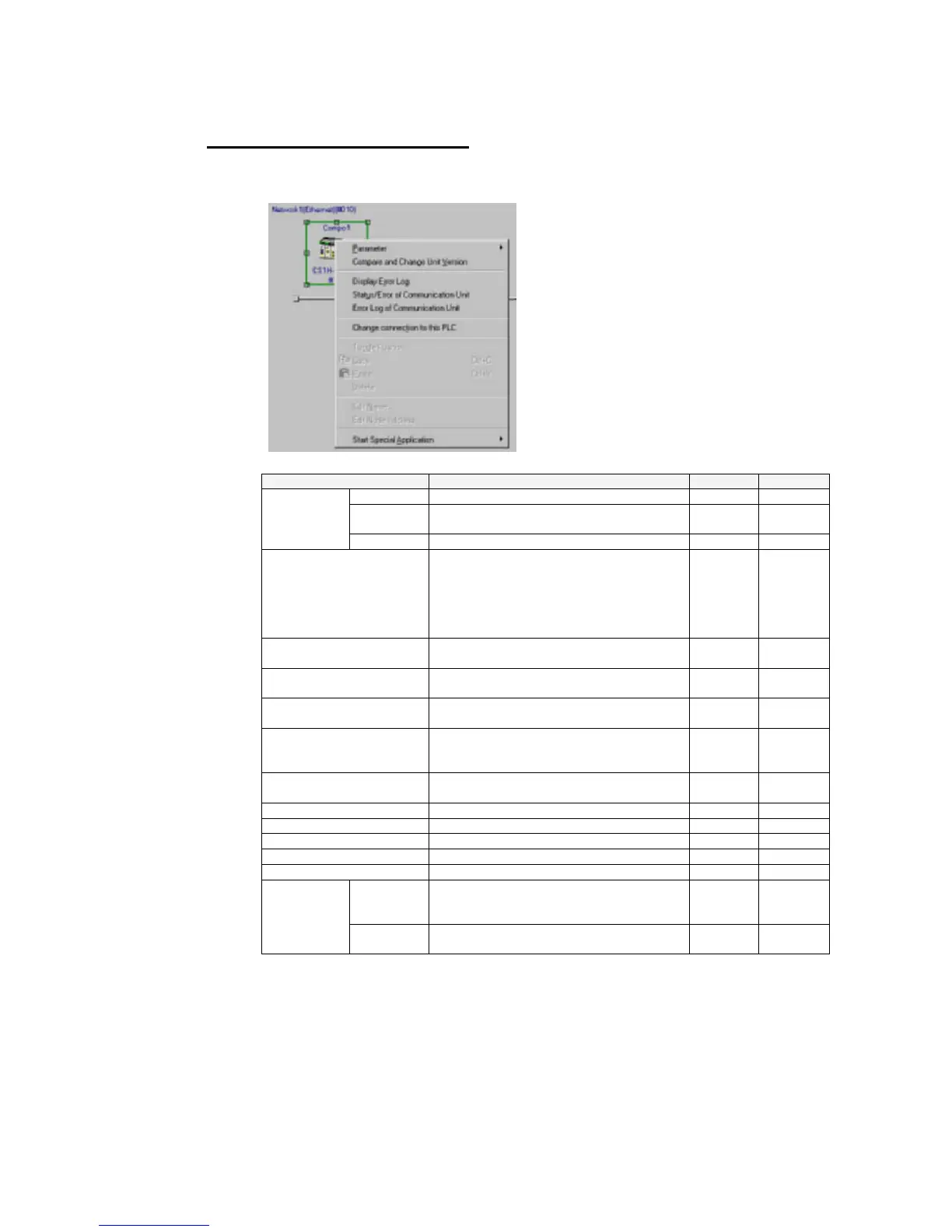

Network Configuration Window
Pop-up Menu for Components
PLCs
Pop-up menu Description Offline Online
Parameter Edit Edits the selected PLC’s parameters. OK No
Load Reads the selected PLC’s parameters from
a file.
OK No
Save Saves the selected PLC’s parameters. OK OK
Compare and Change Unit
Version
Compares the unit version of the actual
component (Unit) with the unit version
supported by the software on the computer.
Also changes the unit version of the
component on the computer to match the
unit version of the actual component (Unit).
No OK
Display Error Log Displays present CPU Unit errors and the
CPU Unit error log online.
No OK
Status/Error of
Communication Unit
Displays a Communications Unit’s status
and error information online.
No OK
Error Log of
Communication Unit
Displays a Communications Unit’s error log
online.
No OK
Connect to this PLC Switches to the selected PLC as the target
PLC so it is possible to access that PLC.
Allows the network configuration to be read.
No OK
Toggle Position Moves a component’s icon above or below
the network line.
OK No
Copy Copies the selected PLC. OK No
Paste Pastes the selected PLC in the network. OK No
Delete Deletes the selected PLC. OK No
Edit Name Changes the selected PLC’s name. OK No
Edit Node Address Edits the selected PLC’s node address. OK No
Start with
Settings
Inherited
Starts the associated application while
keeping the PLC model settings.
OK OK
Start Special
Application
Start Only Starts the associated application
(CX-Programmer for a PLC).
OK OK
