2-1 Basic Procedures
Reading Saved Parameters and Downloading Them Online to DeviceNet
or CompoWay/F Components
All of the component parameters on a network can be downloaded to the actual
components from a previously saved project file (.cin) after the network has been
installed. Parameters can also be downloaded for individual components.

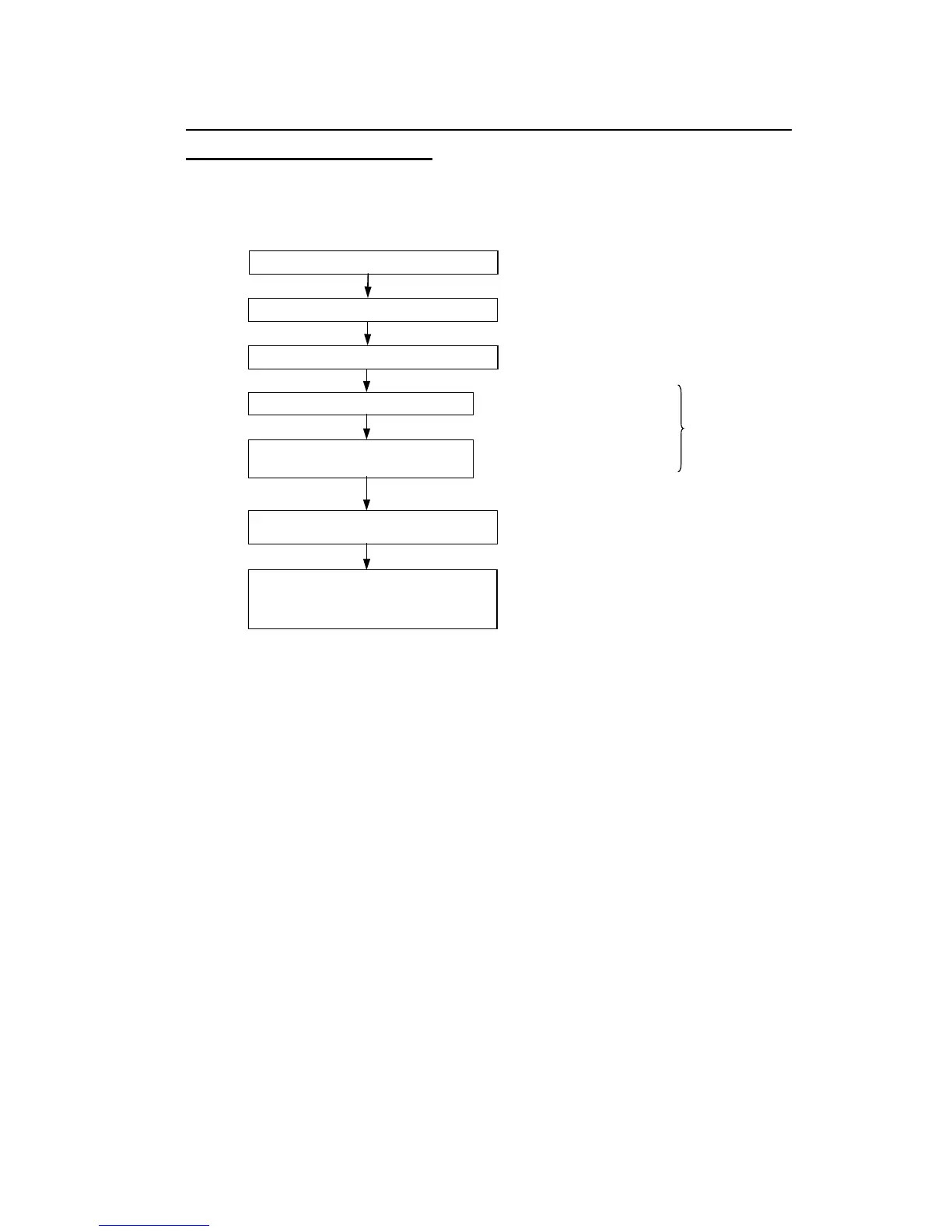

Overall Procedure
Start the CX-Integrator.
Download parameters to the network or
to individual components.
Read network structure file.
Connect online to the relay PLC (= target PLC).
Select
Network
−
Parameter
−
Read from
file
from the menu bar.
Select
Network
−
Transfer [PC to Network]
or
Component
−
Download
from the menu bar.
Connect to a Communications Unit/port to enable
accessing it.
Right-click the desired network in the Online
Connection Information Window and select
Connect
from the pop-up menu.
Create the local network table.
Transfer the local network table to the relay
PLC via the serial connection.
Select
Tools - Start Routing Table
from the
menu bar.
Create the local network table and select
Option
−
Transfer to PLC
.
Required when there
is more than one
Network
Communications Unit
in the relay PLC (=
target PLC).
