100
Chapter4 Wiring Examples
F3SJ-A
User’s Manual
Input/Output Circuit and Applications

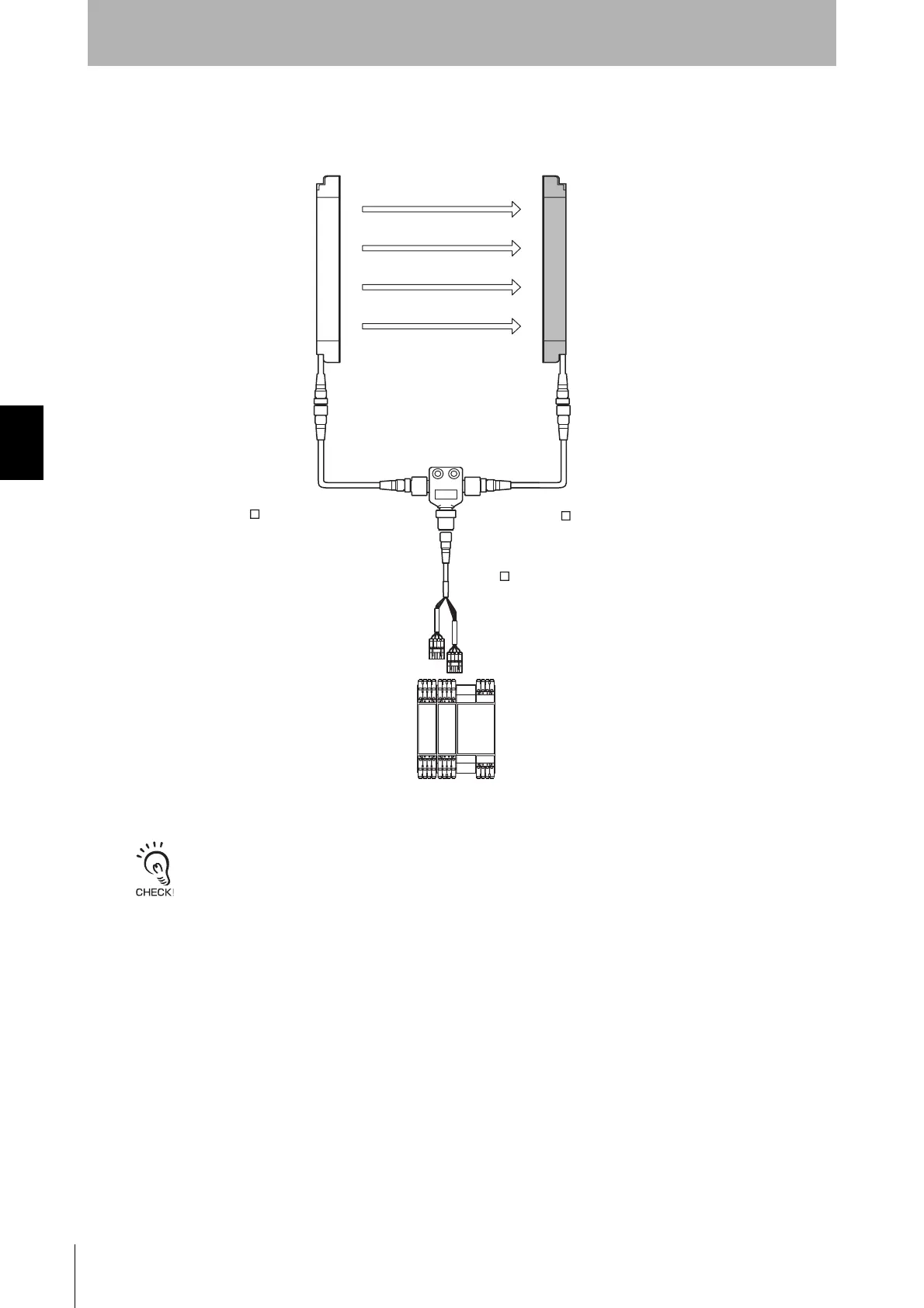

•Using a branch connector
Connector connection is possible using a cable with connectors on both ends and branch connector
for safety light curtains.
Wiring with a F39-JCA single-end connector cable enables use as a muting system.
F3SX
Cable with connectors on both ends:
F39-JC B-L (grey)
Cable with connectors on both ends
F39-JC B-D (black)
Cable with connectors on both ends
F39-JC T for connecting to
branch connector
Grey
Black
Branch connector for
safety light curtains
F39-CN5
F3SJ
Receiver
F3SJ
Emitter
