52
Chapter3 Series Connection
F3SJ-A
User’s Manual
Wiring/Installation
Series Connection
From 2 to 3 sets of F3SJ can be series-connected. Series connection allows them to be used as a a safety
light curtain, requiring only 1 set to be wired to a controller and preventing mutual interference.
If any 1 set of series-connected F3SJ is blocked, both of the safety outputs turn OFF. The indication LED for
each F3SJ turns ON separately.
• Number of connections: Up to 3 sets
• Total number of beams: Up to 240 beams
• Connection cable length between 2 F3SJ in series connection: 15m max.

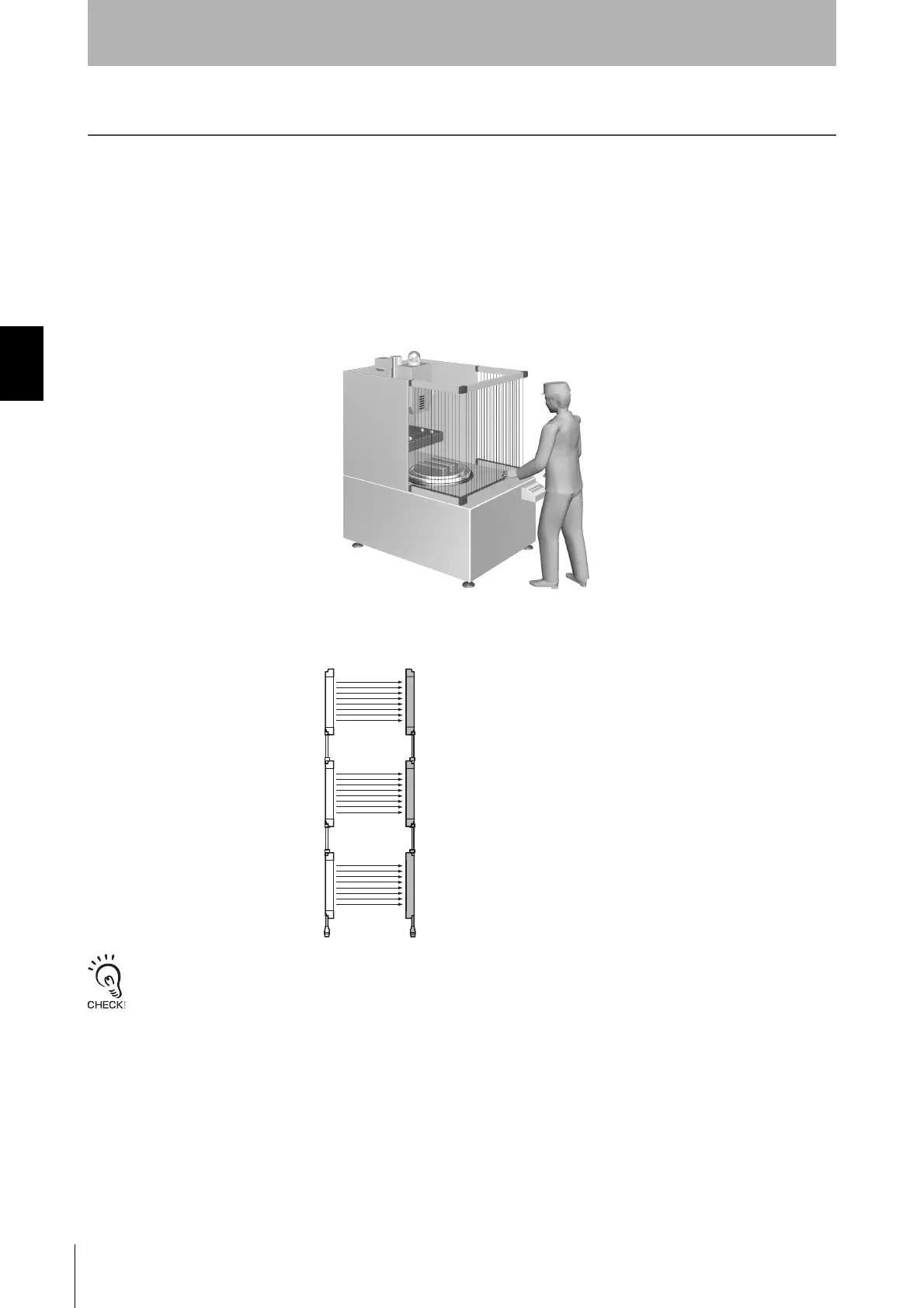

Ex.: Configuring an L- or U-shaped detection zone
The terms used in this document to describe each F3SJ in a series connection are shown below.
- When attaching a cable or cap, tightly fasten the screws (M2, in 4 places, recommended torque: 0.15Nxm). Failure to do so
may cause the cable/cap to come loose, leading to deterioration of the protective functions.
- F3SJ transitions to the lockout state if other sensor than F3SJ-AP-TS type is connected.
Secondary sensor 2 (3CH)
Secondary sensor 1 (2CH)
Primary sensor (1CH)
