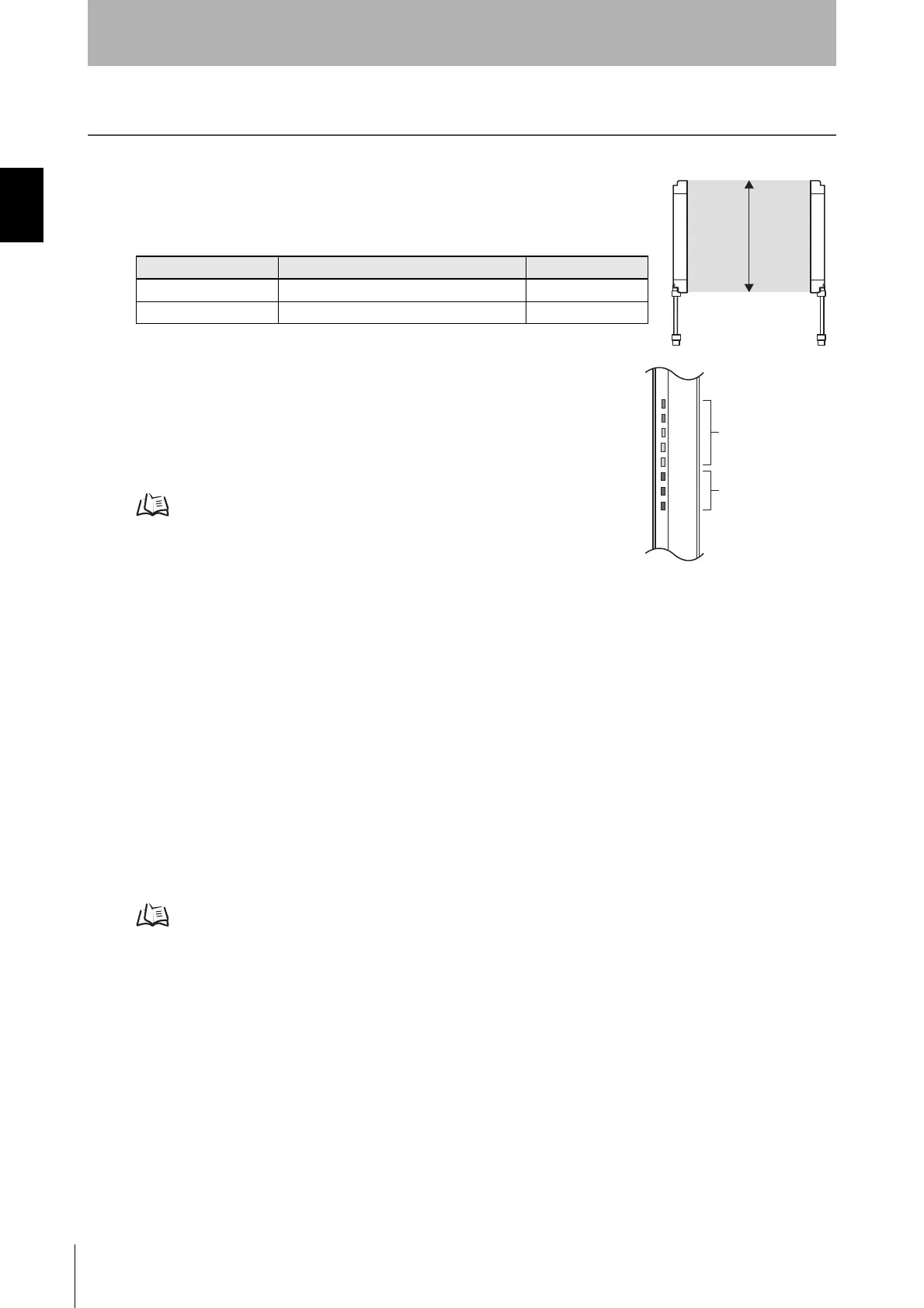

Chapter1 Features
F3SJ-A
User’s Manual
Overview and Specifications
Features

Protective Height Available in Incremental
Sizes
 Easy-to-Read Light Level and Error Mode
Display
Beam alignment is simplified using 5 LEDs that display the incident light
level.
Error status is indicated on 3 additional LEDs when an error occurs.
Indicator Display Patterns p.7
 Additional Safety Functions
•External test (light emission stop)
•External device monitoring function
 Enhanced Mutual Interference Prevention
When the series connection function is used, mutual interference is prevented in up to 240 beams in 3
sets.
When F3SJ are used individually, the newly designed interference light detection and cycle shift
algorithm prevents mutual interference in up to 3 sets.
 Muting/Override Function are Provided
An F3SJ by itself can operate with muting or override function without using a controller.
Definition of muting function and override function p.125
Series Protective height Detection capability
F3SJ-AP20-TS 245mm to 2,495mm (in 15mm increments) Dia. 20mm
F3SJ-AP25-TS 260mm to 2,500mm (in 20mm increments) Dia. 25mm
Protective
height
Incident light
level indicato
r
Error mode
indicator
LEVEL
5
4
3
2
1
C
B
A
