Chapter6 Accessories (Sold Separately)
F3SJ-A
User’s Manual
Appendix
Accessories (Sold Separately)

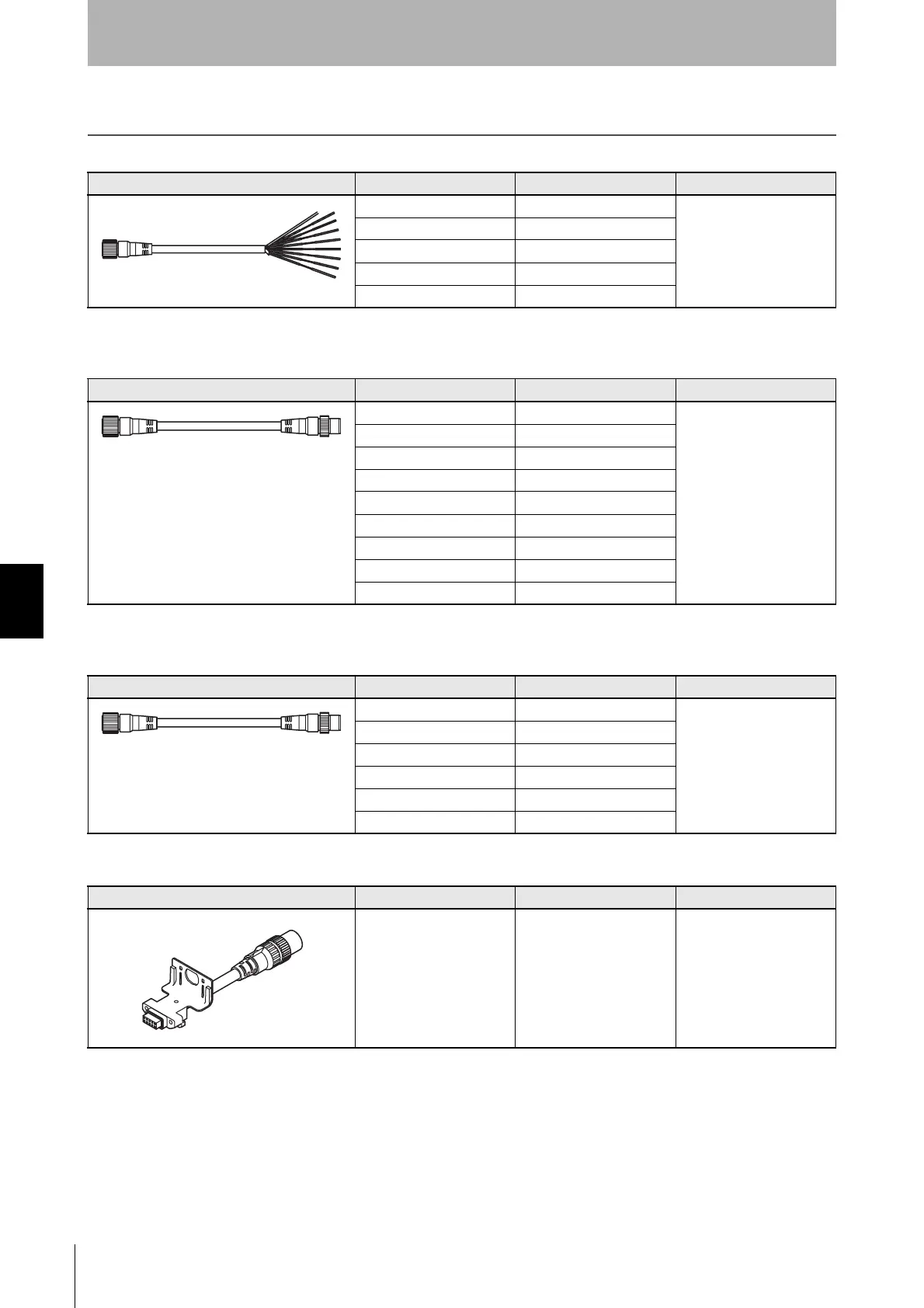

Cable with connector on one end (2 cables per set, for emitter and receiver)
Cable with connectors on both ends: For connection with F3SP-B1P or cable extension (2 cables per set, for
emitter and receiver)
Cable with connectors on both ends: For connection with G9SA-300-SC (2 cables per set, for emitter and
receiver)
Connection cable (2 cables per set, for emitter and receiver)
* Standard cable included with the F3SJ. Purchase a replacement when damaged or lost.
Appearance Model name Cable length Specifications
F39-JC3A 3m M12 connector (8-pin)
- 8 wires + Shield
F39-JC7A 7m
F39-JC10A 10m
F39-JC15A 15m
F39-JC20A 20m
Appearance Model name Cable length Specifications
F39-JCR2B 0.2m M12 connector (8-pin)
- M12 connector (8-pin)
F39-JCR5B 0.5m
F39-JC1B 1m
F39-JC3B 3m
F39-JC5B 5m
F39-JC7B 7m
F39-JC10B 10m
F39-JC15B 15m
F39-JC20B 20m
Appearance Model name Cable length Specifications
F39-JCR2C 0.2m M12 connector (8-pin)
- M12 connector (8-pin)
For cable extension, use
F39-JCB so that F39-
JCC should be on the
side of G9SA-300-SC.
F39-JC1C 1m
F39-JC3C 3m
F39-JC7C 7m
F39-JC10C 10m
F39-JC15C 15m
Appearance Model name Cable length Specifications
F39-JJR3K 0.3m Cap (10-pin)
- M12 connector (8-pin)
