Chapter1 Indicator Display Patterns
F3SJ-A
User’s Manual
Overview and Specifications

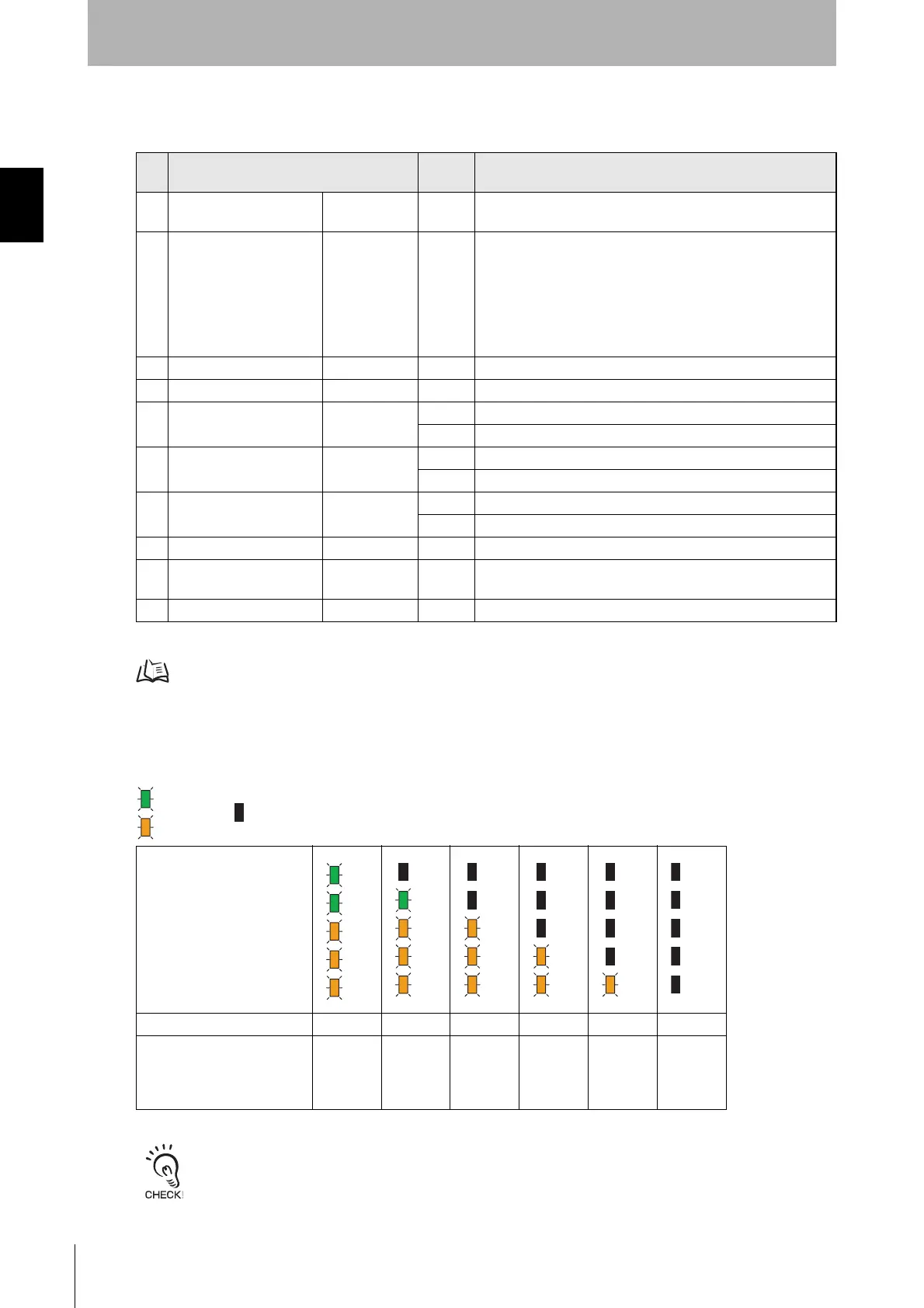

 Internal Indicator for Muting System
Shown below are internal indicator statuses while the keycap for muting is being attached.
For an explanation of terminology such as function names, refer to the glossary.
Glossary p.125
 Display Patterns of the Incident Light Level Indicator
Operation is possible with incident light level of 100% or more, but to ensure stability, operate when all incident light
level indicators
No. Indicators
ON/
Blinking
Description
1 Incident light level
indicator
LEVEL-1 to 5 ON Indication status of LEVEL-1 to 5 shows the incident light level
status of the F3SJ.
2 Error mode indicator ERROR-A to C ON/
Blinking
Turns ON or blinks only when the F3SJ enters lockout, and the
cause of the error is indicated by the status of ERROR-A to C
indicators.When F3SJ are series-connected, the error mode
indicator lamps turn ON or blink according to the details of each
error. Affix the error mode label (included) near the F3SJ to
allow for quick troubleshooting when errors occur. For details of
the error mode, see "Chapter 6 Troubleshooting".
3 Power indicator POWER ON Turns ON while the power is ON.
4 Lockout indicator LOCKOUT Blinking Blinks when in lockout.
5 Muting input 1 indicator MUTE1 ON Turns ON when an input is given to muting input 1.
Blinking Blinks during muting/override.
6 Muting input 2 indicator MUTE2 ON Turns ON when an input is given to muting input 2.
Blinking Blinks during muting/override.
7 OFF-state indicator OFF ON Turns ON when safety outputs are OFF.
Blinking Blinks when in lockout.
8 ON-state indicator ON ON Turns ON when safety outputs are ON.
9 Muting error indicator MUTING
ERROR
ON Turns ON when a muting error occurs.
10 Test indicator TEST Blinking Blinks when external test is being performed.
incident light level indicator
Safety Output ON ON ON OFF OFF OFF
Incident light level
170% or
higher
Less than
170%
~
130%
Less than
130%
~
100%
Less than
100%
~
75%
Less than
75%
~
50%
Less than
50%
ON OFF
5
4
3
2
1
5
4
3
2
1
5
4
3
2
1
5
4
3
2
1
5
4
3
2
1
5
4
3
2
1
