Chapter3 Series Connection
F3SJ-A
User’s Manual
Wiring/Installation
 Connection Procedure
 When Using the F39-JJRL Series Connection Cable for Close Contact
(sold separately)

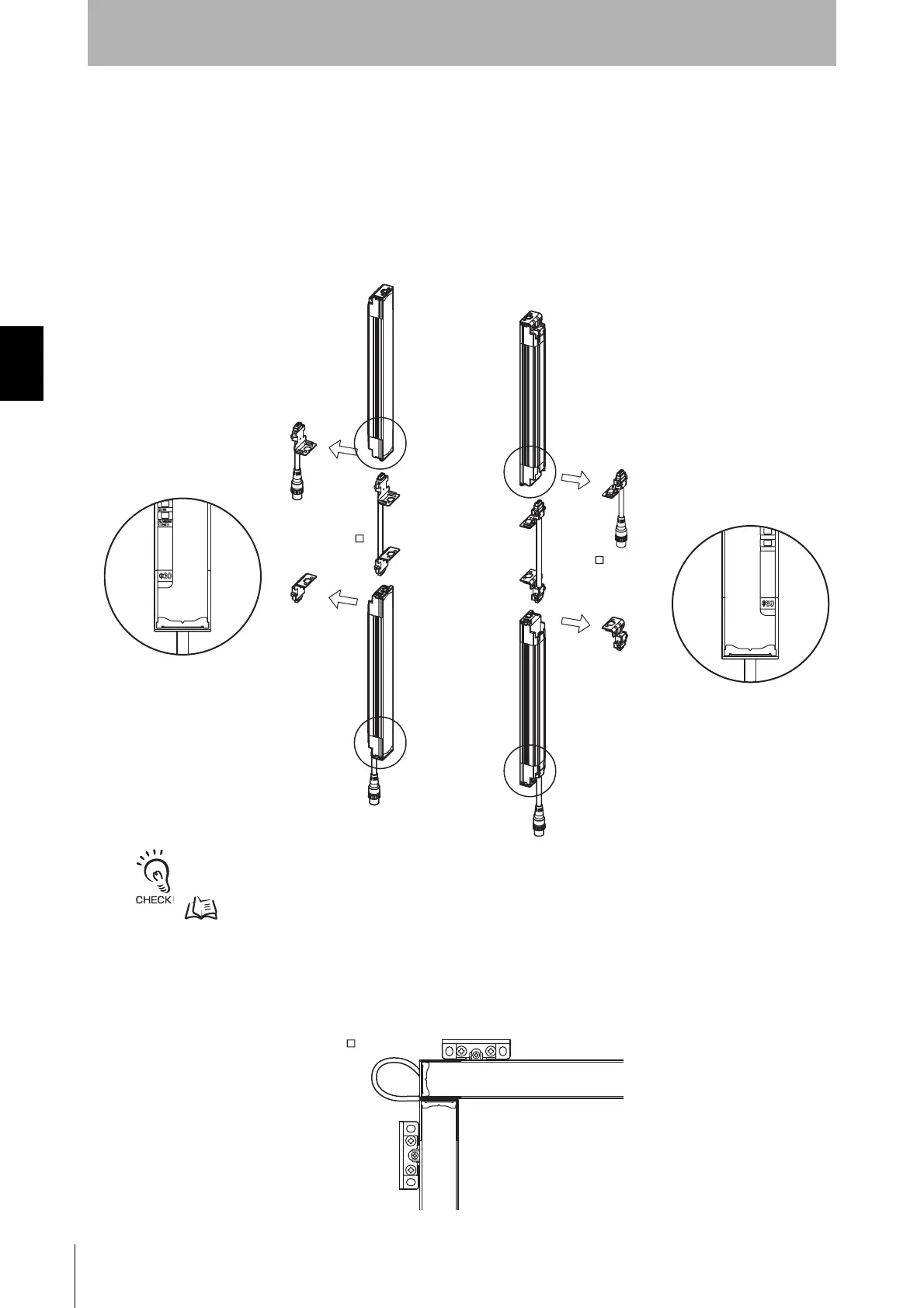

1. Remove the connection cable of the secondary-side F3SJ. (driver comes with F39-JJRL)
2. Remove the cap from the secondary-side F3SJ.
3. Use the F39-JJRL series connection cable for close contact to connect them.
- Attaching/detaching of a cap or a series-connection cable may cause misalignment of rubber grommet in a connector
assembly. Press the grommet to the bottom of the connector and attach the connector F3SJ again.
p.57
- Use the F39-JJRL series connection cable for close contact when the connection distances between F3SJ are short
for a L-shaped configuration, and use the F39-JJR3W (and F39-JCB) series connection cable for extension when
the connection distances are long.
Ex.: L-shaped configuration
2.2.
3.3.
1.1.
1.1.
2.2.
3.3.
Power cable
Power cable
Cap
Cap
F39-JJR L
F39-JJR L
Emitter
power supply
connector side
Emitter power supply
connector side
Receiver power supply
connector side
Receiver
power supply
connector side
Enlarged view of emitter
power supply connector side
Enlarged view of receiver
power supply connector side
EMITTER
RECEIVER
Series connection cable for close contact
F39-JJR L
