Omron F3SJ-A series User Manual

23
F3SJ-A
User’s Manual
Chapter2 Basic System
System Configuration and Functions
E
 Auxiliary Output (Non-Safety Output)
The auxiliary output is used to monitor the status of the F3SJ. This output can be connected to a
device such as a relay, indication lamp, programmable controller, etc.
Do not use the auxiliary output or external indicator output for safety applications.
Human body may not be detected when F3SJ fails, resulting in serious injury.

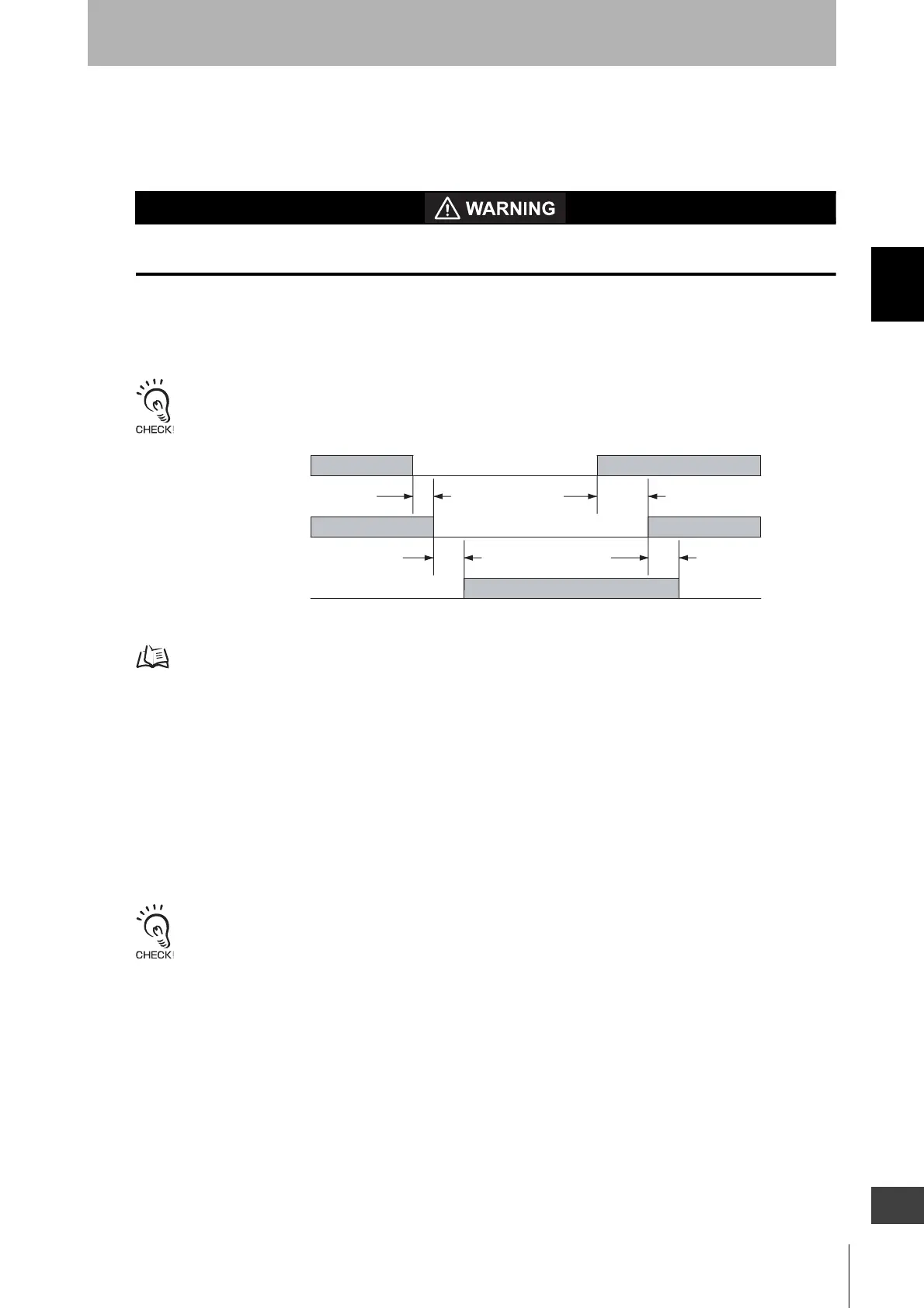

The output operation mode for auxiliary output is as follows:
•Auxiliary output 1: Inverse of safety output signals
Auxiliary output 1 is load current 300mA max.
Ton: Response time of safety output's OFF to ON, Toff: Response time of safety output's ON to OFF
See p.11 for response time
 Resetting Lockout
When the cause of the lockout is removed, the lockout condition can be released by using either of the
following methods.
•Cycle the power back ON
•Reset input
Set the reset line open or to 0 to 1.5V for 100ms or longer, and then apply 9 to 24V again (pin 4/
yellow).
Lockout due to an emitter A blinking error and an emitter/receiver ABC blinking error may not be released by a reset
input.
ON
OFF
ON
OFF
Toff
/Blocked
Unblocked
Blocked
Unblocked
A
uxiliary output 1
Safety output
Toff x2 or less
Ton
Toff
x2 or less
